Quick Details
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
2206mm*1033mm*1205mm
-
Machine Weight:
-
200kg
-
Bucket capacity:
-
0.15m3
-
Name:
-
China loader 200kg HY380 mini skid steer loader ce approval
-
Product type:
-
Skid Steer Loader
-
Engine model:
-
Briggs&Stratton petrol
-
Dumping height:
-
1460mm
-
Operating weight:
-
890kg
-
Wheelbase:
-
636mm
-
Turning radius:
-
1307mm
-
Max. travel speed:
-
0-5.5km/h
-
Attachments:
-
fork, bucket, blade, trencher, snow blower, tiller
-
Certification:
-
CE,ISO
Quick Details
-
Engine Brand:
-
Briggs&Stratton petrol
-
Power:
-
16.9kw
-
Brand Name:
-
LTMG
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
2206mm*1033mm*1205mm
-
Machine Weight:
-
200kg
-
Bucket capacity:
-
0.15m3
-
Name:
-
China loader 200kg HY380 mini skid steer loader ce approval
-
Product type:
-
Skid Steer Loader
-
Engine model:
-
Briggs&Stratton petrol
-
Dumping height:
-
1460mm
-
Operating weight:
-
890kg
-
Wheelbase:
-
636mm
-
Turning radius:
-
1307mm
-
Max. travel speed:
-
0-5.5km/h
-
Attachments:
-
fork, bucket, blade, trencher, snow blower, tiller
-
Certification:
-
CE,ISO
Product Features

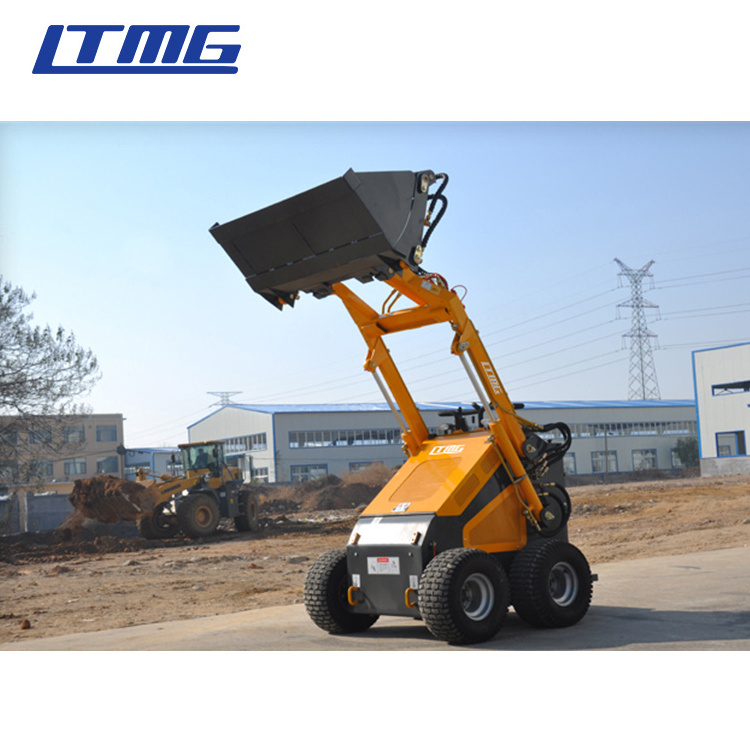

China self loader truck 200kg HY380 mini skid steer loader with optional attachments ce approval
Engine:Briggs & Stratton Petrol Engine
• Tyre:Chevron tire
• Motor: Low speed high torque motors
• Hydraulics Pumps: Gear Pump
• Bucket:Plain
• System pressure:17Mpa
• System flow: 51L/min
• Speed:0-5.5km/h
• Size ( length *width *height):2206*1033*1205mm
• Bucket capacity:0.15cbm/200kg
• Operating weight:940kg
General description
China Cheap HY380 Mini Skid Steer Loader Wheel With Attachment For Sale is without doubt one of the most versatile pieces of construction equipment available on the market today. Skidsteers, and Mini skid steers with their compact size, maneuverability, and ability to easily switch among a huge range of different attachments makes them an invaluable tool.
The HY380 Mini skid steer loader like toro dingo consists of a rigid frame with lift arms that are used to attach a wide variety of attachments for a variety of different jobs.
China Cheap HY380 Mini Skid Steer Loader Wheel With Attachment For Sale
There are numerous Skid Steer Attachments such as bucket,the backhoe, hydraulic breaker, pallet forks, angle broom, sweeper,auger,lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade, wheel saw,and so on, thus ensuring there is a tool for every job you can possibly imagine. If you can think of a job for the skid steer loader, chances are there is an attachment specific to that task.
Broad field-of-use.
It can be used in landscaping, manufacturing, general construction, recycling, gardens, road, building, farm and many other
industries.
Product Description
|
Item
|
Data
|
|
|
|
|||
|
Max Working Height (A)
|
2143mm
|
|
|
|
|||
|
Max Pin Height (B)
|
1884mm
|
|
|
|
|||
|
Max Dump Height (C)
|
1488mm
|
|
|
|
|||
|
Dump Distance at highest point (D)
|
348mm
|
|
|
|
|||
|
Bucket dump angle
|
30degree
|
|
|
|
|||
|
Bucket collectiong angle
|
25degree
|
|
|
|
|||
|
Departure angle
|
11degree
|
|
|
|
|||
|
Total Height (H)
|
1233mm
|
|
|
|
|||
|
Ground Clearance (F)
|
118mm
|
|
|
|
|||
|
Wheelbase (G)
|
636mm
|
|
|
|
|||
|
Length without bucket (J)
|
1752mm
|
|
|
|
|||
|
Total Width (W)
|
1160mm
|
|
|
|
|||
|
Bucket Width (K)
|
1150mm
|
|
|
|
|||
|
Total Length (with bucket) (L)
|
2206mm
|
|
|
|
|||
|
Turning Radius
|
1307mm
|
|
|
|
|||
|
Engine
|
Rated Power
|
17.1Kw (23HP)
|
|
|
|||
|
|
Rated Speed
|
3600 rpm
|
|
|
|||
|
Noise
|
<=95Db
|
|
|
|
|||
|
Hydraulic system
|
Hydraulic Pressure
|
17Mpa
|
|
|
|||
|
|
Cycle time
|
Raise
|
Dump
|
Lower
|
|||
|
|
|
4.27s
|
1.34s
|
3.31s
|
|||
|
Load capacity
|
200kg
|
|
|
|
|||
|
Bucket Capacity
|
0.15cbm
|
|
|
|
|||
|
Max Lifting Force
|
375kg
|
|
|
|
|||
|
Speed
|
0-5.5km/h
|
|
|
|
|||
|
Total Weight
|
890kg
|
|
|
|
|||
|
Tyre model
|
18*6.5-8
|
|
|
|
|||
Attachments
Packing & Delivery
Our Factory
LTMG Machinery Group(LTMG) was established in 2001. Since foundation, LTMG has always kept its professional role in Chinese Construction Machinery industry.
Exhibition&Customers
Our Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
