Quick Details
-
Product name:
-
Valve Stainless Steel Valve High Quality Valve
-
Material:
-
stainless steel
-
Size:
-
DN15-DN150
-
Medium:
-
Oil Water Gas Steam
-
Nominal pressure:
-
PN10/16
-
Standard or Nonstandard:
-
Standard
-
Function:
-
Commercial Appliance
-
Body material:
-
stainless steel
-
Connection:
-
elding, quick installation, thread, clamp
Quick Details
-
Port Size:
-
DN15-DN150
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shangdian
-
Product name:
-
Valve Stainless Steel Valve High Quality Valve
-
Material:
-
stainless steel
-
Size:
-
DN15-DN150
-
Medium:
-
Oil Water Gas Steam
-
Nominal pressure:
-
PN10/16
-
Standard or Nonstandard:
-
Standard
-
Function:
-
Commercial Appliance
-
Body material:
-
stainless steel
-
Connection:
-
elding, quick installation, thread, clamp
Product Information

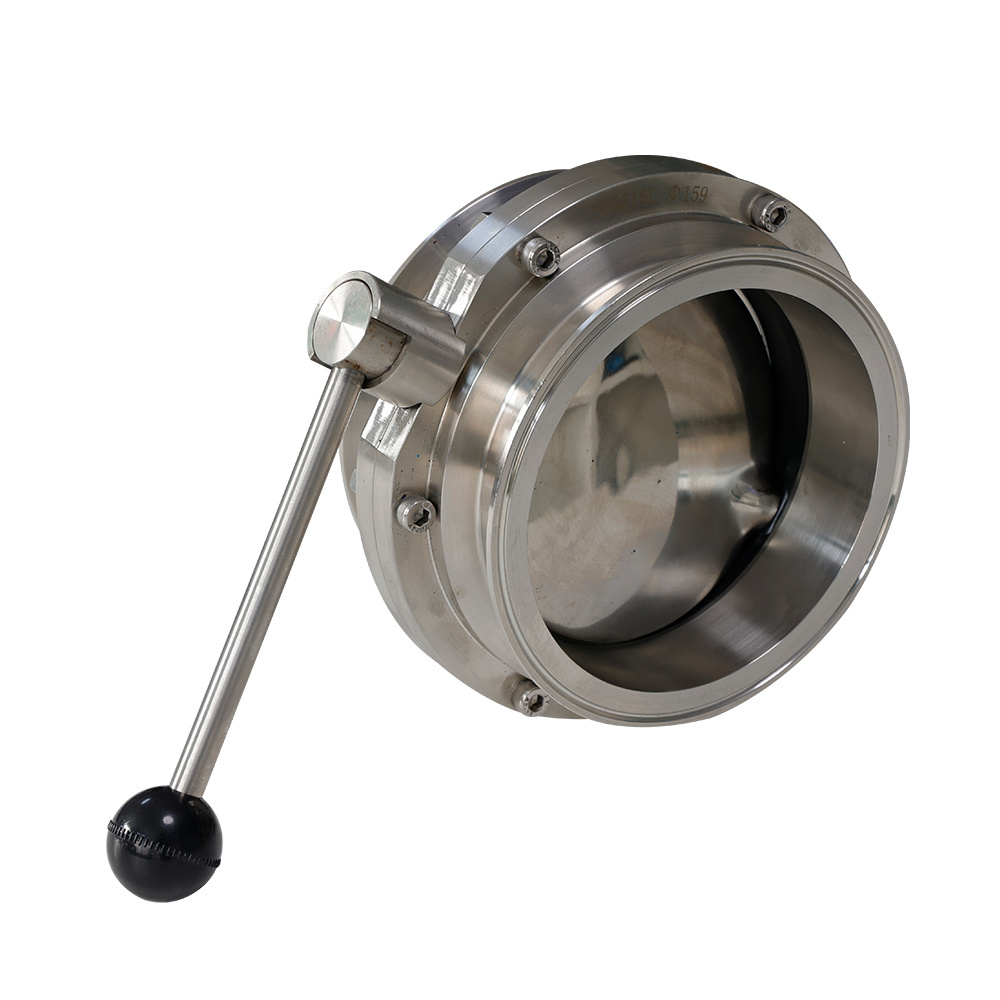

Butterfly valves are made of three zero four L and three one six L stainless steel, with mounting methods such as welding, quick installation, thread, clamp, etc., ISO, DIN, IDF, SMS, 3A and other standards, with
manual, pneumatic, electric and other driving methods, with sealing materials such as EPDM, NBR, PTFE, etc., with switching angles from Zero degrees to One hundred and eight degrees, with adjustable angles, with sizes from DN15 to DN 150, a class of valves suitable for controlling pipeline flow.
manual, pneumatic, electric and other driving methods, with sealing materials such as EPDM, NBR, PTFE, etc., with switching angles from Zero degrees to One hundred and eight degrees, with adjustable angles, with sizes from DN15 to DN 150, a class of valves suitable for controlling pipeline flow.
|
Metal material
|
304L1316L(1.430711.4404) 304(1.4301)
|
|
|
|
Sealing material
|
Standard configuration
|
EPDM
|
|
|
|
Optional configuration
|
FPM, Silicone, NBR
|
|
|
Temperature
|
Working temperature
|
-20~+135℃(EPDM)
|
|
|
|
Sterilization temperature
|
150℃( MAX 20min)
|
|
|
Pressure
|
Working pressure
|
0~10bar
|
|
|
|
Control air source pressure
|
5~8 bar
|
|
|
Surface treatment
|
Internal surface treatment
|
R≤0.8μm
|
|
|
|
External surface treatment
|
R≤1.6μm
|
|
|
Connection
|
Welding,quick installation, thread, flange
|
|
|
Product Show
Product Feature
1. Stable performance ,anti-corrosion,sturdy and durable
2. Selected stainless steel materials& strict quality inspection process
3. Exquisite craftsmanshipsmooth surface and fine workmanship
4. Customization support meet multiple workingconditions
2. Selected stainless steel materials& strict quality inspection process
3. Exquisite craftsmanshipsmooth surface and fine workmanship
4. Customization support meet multiple workingconditions
Product Application
Widely used in Food, beverage, dairy products, brewing, pharmaceutical, chemical and other industries
