Quick Details
-
Brand Name:
-
FengYe
-
Model Number:
-
M6,M8
-
Diameter:
-
M6,M8
-
Product name:
-

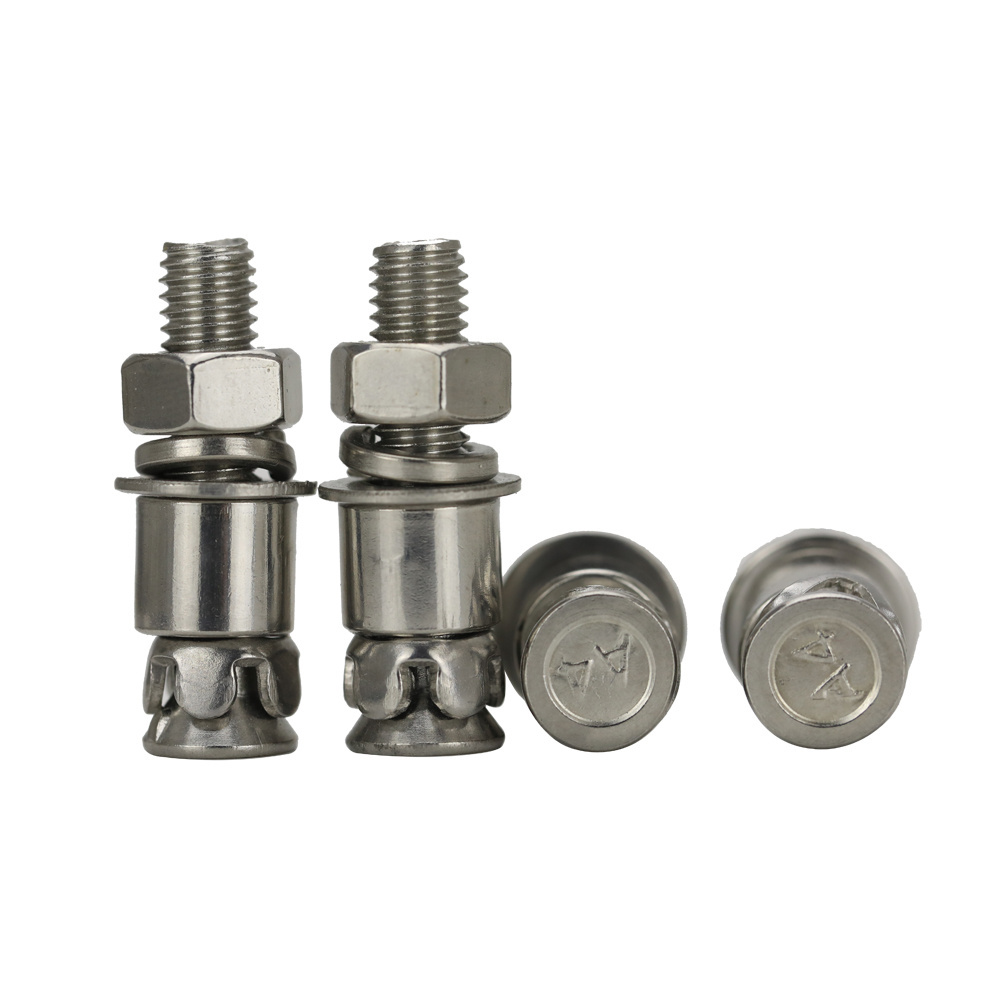

Stainless Steel 304 316 Undercut Anchor For Granite Hanging
-
Surface treatment:
-
Polishing
-
Application:
-
Building Construction
-
MOQ:
-
1000PCS
-
Packing:
-
carton box + kraft box
-
payment:
-
L/C, T/T, Western Union
-
OEM/ODM:
-
Available
-
Type:
-
sleeve anchors hex nut
Quick Details
-
Material:
-
Steel
-
Capacity:
-
1.97KN-8.8KN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FengYe
-
Model Number:
-
M6,M8
-
Diameter:
-
M6,M8
-
Product name:
-
Stainless Steel 304 316 Undercut Anchor For Granite Hanging
-
Surface treatment:
-
Polishing
-
Application:
-
Building Construction
-
MOQ:
-
1000PCS
-
Packing:
-
carton box + kraft box
-
payment:
-
L/C, T/T, Western Union
-
OEM/ODM:
-
Available
-
Type:
-
sleeve anchors hex nut
Product Description
| Product | Stainless Steel 304 316 Undercut Anchor For Granite Hanging |
| Keyword | sleeve anchors hex nut |
| Structure | bolt+sleeve+clip+spring washer+flat washer+nut |
| Material | AISI304(A2-70), AISI316(A4-80) |
| Type | undercut anchor, Aseismic undercut bolt etc. |
| Sample | Free sample can be sent for test |
| Remark |
OEM/ODM is available according to customer's drawing and samples |
| Item No | Diameter of drill hole(mm) | Anchorage depth (mm) | Diameter of expansion hole (mm) | Screw exposed length (mm) | Tensile strength (KN) | Yield strength (KN) |
|
M6×10 |
11 | 10 | 13.5 | 15 | 8 | 4 |
|
M6×12 |
11 | 12 | 13.5 | 13 | 8 | 4 |
|
M6×15 |
11 | 15 | 13.5 | 17 | 8 | 4 |
|
M6×18 |
11 | 18 | 13.5 | 14 | 8 | 4 |
|
M6×21 |
11 | 21 | 13.5 | 11 | 8 | 4 |
|
M8×15 |
13 | 15 | 15.5 | 17 | 15 | 8 |
|
M8×18 |
13 | 18 | 15.5 | 17 | 15 | 8 |
|
M8×21 |
13 | 21 | 15.5 | 14 | 15 | 8 |
|
M8×30 |
13 | 30 | 15.5 | 15 | 15 | 8 |
