Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KTG
-
Model Number:
-
SX-SL-80
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
12V
-
Lamp Luminous Flux(lm):
-
13600
-
Working Temperature(℃):
-
-20 - 70
-
Item Type:
-
Street Lights
-
Lamp Body Material:
-
Aluminum Alloy+PC
-
LED Light Source:
-
Bridgelux
-
Solar panel:
-
Monocrystalline Silicon
-
Power:
-
Generating their own power
-
Product name:
-

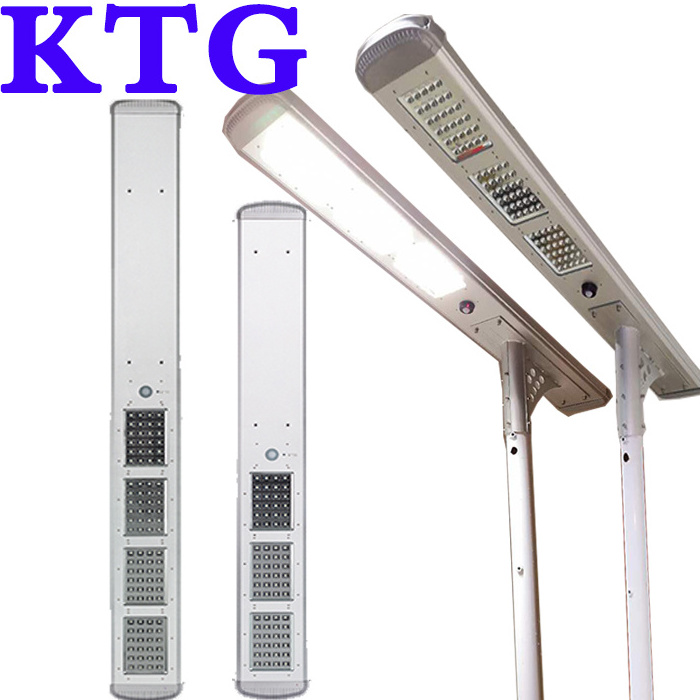

Integrated Solar Led Street Light
-
sensor type:
-
human sensor
-
installation:
-
only need light pole
-
ip:
-
ip65
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Warranty(Year):
-
3
-
Lighting solutions service:
-
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, auto CAD layout, Onsite metering, Project Installation
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KTG
-
Model Number:
-
SX-SL-80
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
12V
-
Lamp Luminous Flux(lm):
-
13600
-
Working Temperature(℃):
-
-20 - 70
-
Item Type:
-
Street Lights
-
Lamp Body Material:
-
Aluminum Alloy+PC
-
LED Light Source:
-
Bridgelux
-
Solar panel:
-
Monocrystalline Silicon
-
Power:
-
Generating their own power
-
Product name:
-
Integrated Solar Led Street Light
-
sensor type:
-
human sensor
-
installation:
-
only need light pole
-
ip:
-
ip65
Products Description
KTG Technology CO.,LTD. solar street light manufacturer in shenzhen.
We are solar street light manufacturer in shenzhen.we can OEM/ODM Integrated all in one solar street light and solar street light.and we can produce 3different price light,because different type battery.
Bset and expensive one is 12.8v 26650 LiFePO4 battery,good for hot weather,3000cycle.
secend one is 12v 18650 Lithium battery,good for cold weather.1000cycle.
Last one is 3.2v 32650 LiFePO4 battery,this battery are very cheap.but not bright.
Bset and expensive one is 12.8v 26650 LiFePO4 battery,good for hot weather,3000cycle.
secend one is 12v 18650 Lithium battery,good for cold weather.1000cycle.
Last one is 3.2v 32650 LiFePO4 battery,this battery are very cheap.but not bright.
|
Solar Panel
|
Max Power
|
18v 60W ( monocrystalline silicon)
|
|
|
|
Life time
|
25 years
|
|
|
LED Lamp with sensor
|
battery Type
|
Lithium battery
|
|
|
|
Life time
|
5 years
|
|
|
|
Max power
|
80w
|
|
|
|
Led chip brand
|
Bridgelux from USA with high brightness
|
|
|
|
Lumen (LM)
|
170 lm/w
|
|
|
|
Life Time
|
80000 hours
|
|
|
|
Viewing Angle
|
120º
|
|
|
Charge time
|
By Sun
|
6hours (with enough strong shine)
|
|
|
Discharge time
|
Full power
|
more 12 hours
|
|
|
|
Saving mode
|
more 24 hours
|
|
|
Working temperature
|
Range(ºC)
|
-30ºC ~ +60ºC
|
|
|
Colour temperature
|
Range (k)
|
6000k
|
|
|
Mounting height
|
Range (m)
|
6-8 m
|
|
|
Space between light
|
Range (m)
|
15-20m
|
|
|
Lamps material of main
|
Aluminium alloy
|
|
|
|
Certificate
|
CE / ROHS
|
|
|
|
Warranty Period
|
3years
|
|
|
|
Packing & Weight
|
Product size
|
1630*435*234mm（lamp）585*125*320mm（bracket）
|
|
|
|
Product weight
|
15kg
|
|
|
|
Packing size
|
1680*140*300MM(lamp) 610*140*340MM(bracket)
|
|
|
|
Q’ty/ctn
|
1 sets / ctn
|
|
|
|
GW for carton
|
16.5kg
|
|
|
Packs Containers
|
20 GP
|
275sets
|
|
|
|
40 GP
|
555sets
|
|
