Quick Details
-
Ink Type:
-
UV inks
-
Place of Origin:
-
China
-
Brand Name:
-
MC
-
Voltage:
-
110V/ 220V
-
Dimensions(L*W*H):
-
181cm*170cm*89cm
-
Weight:
-
225KG
-
Core Components:
-
board
-
Product name:
-
UV Flatbed Printer
-
Print head:
-
XP600
-
Printhead Number:
-
3
-
Ink Color:
-
CMYK LcLm+V+W
-
Certification:
-
CE, ISO
Quick Details
-
Print Dimension:
-
60*90CM
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV inks
-
Place of Origin:
-
China
-
Brand Name:
-
MC
-
Voltage:
-
110V/ 220V
-
Dimensions(L*W*H):
-
181cm*170cm*89cm
-
Weight:
-
225KG
-
Core Components:
-
board
-
Product name:
-
UV Flatbed Printer
-
Print head:
-
XP600
-
Printhead Number:
-
3
-
Ink Color:
-
CMYK LcLm+V+W
-
Certification:
-
CE, ISO
Products Description

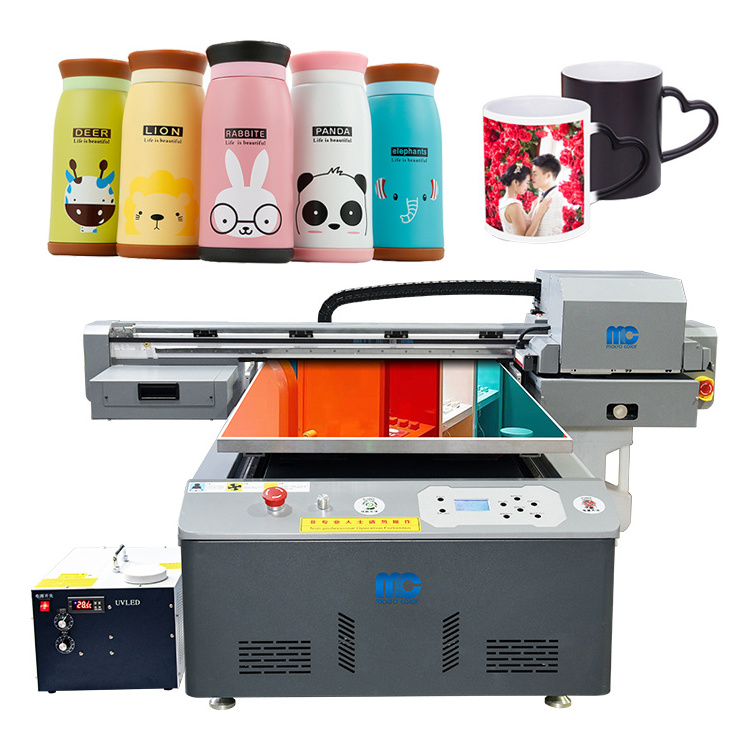

UV6090 Flatbed Printer
Macro color
UV6090 flatbed printer is the latest model for small size special gift printing,such as
pen,mugs,cup,phonecase,T-shirt,mirror,company Logo,etc.support customizing.
Main features:
(1)Negative ink supply system:one part control color,one part control white and varnish.separately adjust the pressure for
color,varnish and White
(2)Ink preheating system in secondary ink cartriage.
(3)White ink mixing system in ink tank
(4)THK noiseless Linear guides for X axis,lead screw for Y
(5)heater device on the bottom base of the print head
(6)Auto-lifting platform,support material that with 15cm height.
(7)Auto height detection device
(8)Leadshine serve motor.
(9)Anti anti-static system (Optional)
(10)Vacuuming Media Suction Platform
(11)ink lackness warm system
(12)Stand for printer
(13)Standard Photoprint
(14)Water-cooling system
(15)Standard rotaty device for bottle printing.
(16)3 pcs UV lamp Standard lifespan:More than 10000 hours.
(17)Total printer power including uv lamp:1200w
(1)Negative ink supply system:one part control color,one part control white and varnish.separately adjust the pressure for
color,varnish and White
(2)Ink preheating system in secondary ink cartriage.
(3)White ink mixing system in ink tank
(4)THK noiseless Linear guides for X axis,lead screw for Y
(5)heater device on the bottom base of the print head
(6)Auto-lifting platform,support material that with 15cm height.
(7)Auto height detection device
(8)Leadshine serve motor.
(9)Anti anti-static system (Optional)
(10)Vacuuming Media Suction Platform
(11)ink lackness warm system
(12)Stand for printer
(13)Standard Photoprint
(14)Water-cooling system
(15)Standard rotaty device for bottle printing.
(16)3 pcs UV lamp Standard lifespan:More than 10000 hours.
(17)Total printer power including uv lamp:1200w
Product Paramenters
|
Model
|
UV 6090
|
|
Print Size
|
600mm*900mm
|
|
Print Mode
|
Uni-Directional and Bl-Directional
|
|
Print Head
|
3 pcs DX11(xp600)
|
|
Print Resolution
|
720*360dpi,720*720dpi,360*1080dpi,720*1080dpi
|
|
Print Speed
|
4 pass 360*720dpi : 11 M2/H
|
|
|
6 pass 360*1080dpi: 5.5 M2/H
|
|
|
8 pass 720*720 dpi: 3 M2/H
|
|
Ink Type
|
UV ink
|
|
Color
|
CMYKLcLm+W+V
|
|
Color Control
|
ICC based with curves and density adjustment function
|
|
Ink Supply
|
Negative Pressure CISS,with ink lackness warm system
|
|
Max Print Thickness
|
200mm.
|
|
Print Media
|
acrylic aluminous model board,ceramic tile,foam board,sheet metal,glass, cardboard,leather,phone case and other flat media
|
|
Rip Software
|
Photoprint/Onyx(optional)
|
|
Image Format
|
TIFF,JPG,POSTSCRIPIT,EPS,PDF,etc.
|
|
Computer System
|
Win7/Win10
|
|
Nozzle Technology
|
Drop on demand-on-demand micro piezo inkjet spray.
|
|
UV lamp
|
LED-UV 2,200W,Life 20000-30000 hours,water cooling
|
|
Date Transfer Interface
|
USB2.0
|
|
Supply Voltage
|
AC220V/110V,50/60Hz
|
|
Power
|
1200W
|
|
Operating Environment
|
Temperature:20-35℃,humidity:35%-70%
|
|
Machine Size
|
167cm*155cm*72cm(225kg)
|
|
Package Size
|
181cm*170cm*89cm(300kg)
|
