1.
Free sample
shipping available worldwide
2.
Door-to-door
services are available in countries such as the United States,
Germany, France, Italy, Spain, Poland, the Netherlands, and the Czech Republic
3.
LCL to any port of global by sea
- Product Details
- {{item.text}}

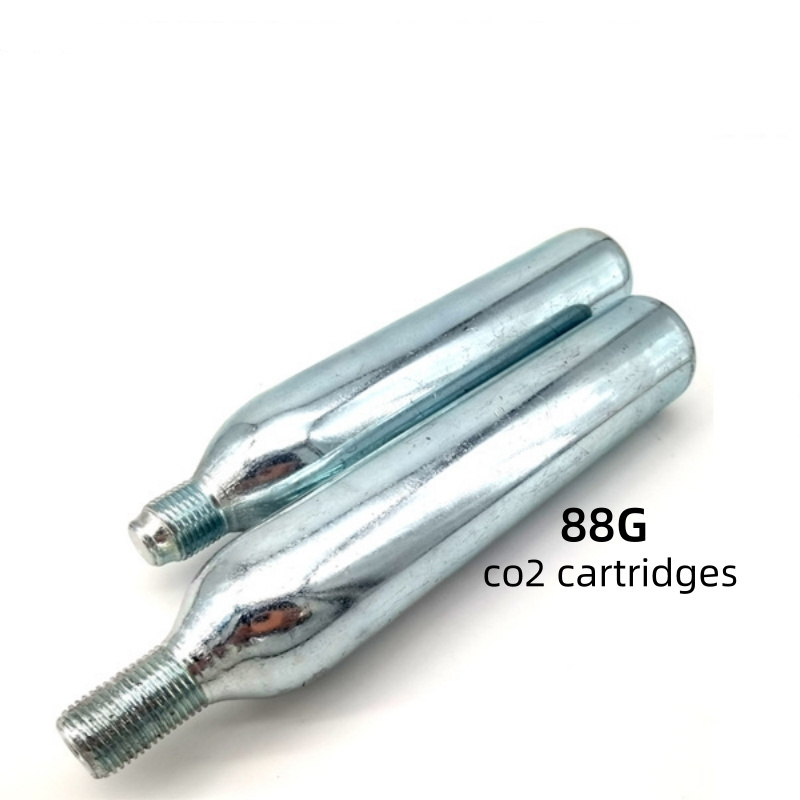

Quick Details
-
Model Number:
-
88g CO2 cartridge
-
Brand Name:
-
ARR
-
Outside Diameter:
-
35±0.1mm
-
Length:
-
195±0.5mm
-
Product weight:
-
350g
-
Gas weight:
-
88g
-
Material thickness:
-
2.0mm
-
Cylinder water capacity:
-
118ml
-
Product thread:
-
5/8-18UNF and M16*1.5
-
Cylinder pressure resistance:
-
MAX 55mpa(8000psi)
-
Pressure at 70°F:
-
6mpa(870psi)
Quick Details
-
Material:
-
Environmental protection of steel
-
Use:
-
outdoor sport
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
88g CO2 cartridge
-
Brand Name:
-
ARR
-
Outside Diameter:
-
35±0.1mm
-
Length:
-
195±0.5mm
-
Product weight:
-
350g
-
Gas weight:
-
88g
-
Material thickness:
-
2.0mm
-
Cylinder water capacity:
-
118ml
-
Product thread:
-
5/8-18UNF and M16*1.5
-
Cylinder pressure resistance:
-
MAX 55mpa(8000psi)
-
Pressure at 70°F:
-
6mpa(870psi)
Product Description
Applicable scene
Customized
Our Advantages
✍ Each batch of products are subject to strict
factory quality inspection
✍ Advanced production equipment and computerized control systems enable errors can be reduced to a minimum,
leading the industry standard
✍ Strict control of product weight,
error control within ±2g
Specification
Support customization
|
Model
|
12g
|
16g
|
|
|
|
33g
|
38g
|
45g
|
|||||||
|
Capacity
|
14cc
|
17cc
|
|
|
|
34cc
|
50cc
|
60cc
|
|||||||
|
Thread
|
Non-Threaded ; 3/8-24UNF;
1/2-20UNF
|
Non-Threaded ; 3/8-24UNF;
1/2-20UNF
|
|
|
|
3/8-24UNF； 1/2-20UNF;
5/8-18UNF
|
3/8-24UNF；
1/2-20UNF;
5/8-18UNF |
3/8-24UNF； 1/2-20UNF;
5/8-18UNF |
|||||||
|
Body Diameter
|
18.5
|
22
|
|
|
|
25mm
|
30mm
|
30mm
|
|||||||
|
Body Length
|
83mm
|
88.5
|
|
|
|
145mm
|
120mm
|
140mm
|
|||||||
|
Weight
|
45g
|
59g
|
|
|
|
146g
|
180g
|
210g
|
|||||||
|
CO2 Net Weight
|
12±1g
|
16±1g
|
|
|
|
33±1g
|
38±1g
|
45±1g
|
|||||||
|
Burst Pressure
|
550kgf/cm²
|
550kgf/cm²
|
|
|
|
550kgf/cm²
|
550kgf/cm²
|
550kgf/cm²
|
|||||||
|
Applicable scene
|
Shooting boost ; water life ring;
|
Tire Air Refill,Homemade Drink,Life Jacket,etc
|
|
|
|
Inflatable life jacket
|
horse riding airbag / life jacket
|
horse riding airbag / life jacket
|
|||||||
|
surface color
|
White zinc/color zinc/blue zinc/paint
|
Steel, Zinc and cooper coated option
|
|
|
|
|
|
|
|||||||
|
Support customization
|
Length, diameter, thread ,logo, etc. support customization
|
Length, diameter, thread logo, etc. support customization
|
|
|
|
|
|
|
|||||||
