- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
WELAND
-
Filter Rating:
-
10-99%
-
Thickness:
-
0.5-20MM
-
Length:
-
Custom
-
Width:
-
Custom
-
Shape:
-
Round, Disc
-
Filter media:
-
Air Liquid Solid Filter
Quick Details
-
Weight (KG):
-
0.1
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WELAND
-
Filter Rating:
-
10-99%
-
Thickness:
-
0.5-20MM
-
Length:
-
Custom
-
Width:
-
Custom
-
Shape:
-
Round, Disc
-
Filter media:
-
Air Liquid Solid Filter
Specification

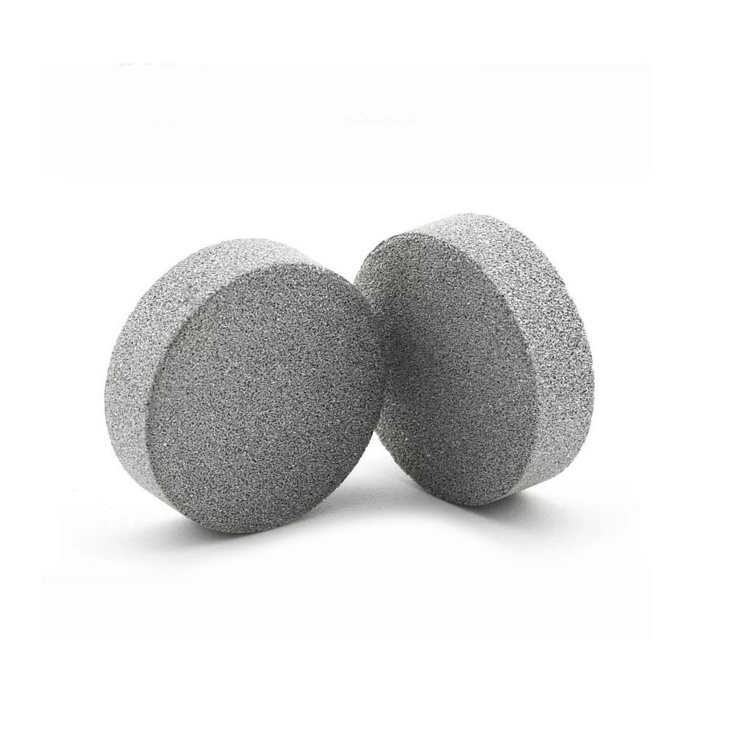

Sintered Porous Powder Metal Stainless Steel 316L Mesh Disc Filter
WELAND Sintered stainless steel disc filters are made by irregularly shaped stainless Steel powder, Generally AISI 316, 316L.
During the production of stainless steel sintered filters, the powder is compressed into a mold to create a solid shape.
The pore size can be determined by the power that is chosen and the pressing force that is applied.
The filters ultimate properties are influenced by the shape, size and distribution of the powder.
1.Pharmaceutical Industry
Active pharmaceutical ingredients, such as solvent solution, decarburization filtration of material filtering.Pharmaceutical
industry infusion, injection, oral liquid concentration with link of the decarburization filtration and security filtration for
the dilute with terminal filter.
2. Chemical Industry
The liquid of chemical industry products and raw materials, and the decarburization filtration of material and precision
filtration of pharmaceutical intermediates. Superfine crystal,the filter recycling of the catalyst, the precision filtration and
heat conduction oil system after absorption of resin.Removing the impurities in the materials, and the catalytic gas purification etc.
3. Electronic Industry
Electronic, Microelectronics, semiconductor industrial water filter, etc.
4. Water Treatment Industry
It can used in the security filter SS housing as the pre-treatment for UF, RO, EDI system, the filtration after the ozone
sterilization and the ozone after aeration.
5. Sewage Treatment
The micropore pure titanium aerator compared with the normal aerator, the energy consumption of the micropore pure titanium aerator is lower 40% than the normal aerator, the sewage treatment is nearly doubled.
6. Food Industry
The beverage, wine, beer, vegetable oil, soy sauce, vinegar clarification filtration.
7. Oil Refining Industry
The oiled field water filter,and the security filter SS housing before the reverse osmosis in desalination field.
|
Name
|
Sintered Stainless steel powder Filter disc
|
|
|
|
|||
|
Material
|
Stainless steel 316 powder
|
|
|
|
|||
|
Shape
|
Disc, Disk
|
|
|
|
|||
|
Filtration precision
|
2μm-120μm
|
|
|
|
|||
|
Filtration precision
|
98% filtration accuracy under:5-80um
|
|
|
|
|||
|
Features & Benefit
|
1. Uniform pore size distribution
2. High mechanical strength 3. Good integrity and rigidity 4. Good permeability 5. Backwash and reusable 6. Heat resistance 7. Corrosion resistance |
|
|
|
|||
|
Work environment
|
1.Nitric aci,sulfuric acid,acetic acid,oxalic acid,phosphoric acid,5% hydrochloric acid.
2.Molten sodium,hydrogen,nitrogen,hydrogen sulfide. 3.Acetylene,water,vapor,hydrogen,gas,carbon dioxide gas environment. |
|
|
|
|||
|
Keywords
|
Porous 0 5 0.2 1 10 20 micron SS316L stainless steel filter discs filter disks
sintered metal porous 304 316L stainless steel micron strainer filter disc / disk
0.5 2 5 10 50 80 100 Micron Microporous round metal Stainless Steel Powder Sintered disk Filter Plate
Stainless steel porous round sintered filter discs
Stainless Steel Sintered Powder Metal Porous Disc Filter
powder sintered porous SS 316L stainless steel filter disc
Sintered Filter Sintered micron stainless steel porous metal filter disc powder sintered porous 316L stainless steel filter disc
Custom made porous metal stainless steel bronze powder sintered filter for Industrial
Industrial Microns porous stainless steel sintered metal filter discs
Custom Various Sizes Stainless Steel Powder Sintered Filter 0.1-120 Micron Porous Metal Filter Cup Disc
sintered porous powder metal stainless steel 316L mesh disc filter
316L stainless steel sintered porous metal filter disc
Stainless Steel Filter Discs Custom 0.2 5 7 40 50 70 90 Metal Filter Discs Sintered &
Porous Stainless Steel Filter Disc
Sintered Porous titanium Stainless steel metal mesh filter discs
sintered stainless steel filter disc
Stainless Steel Sintered Powder Metal Porous Disc Filter
Custom Round Stainless Steel Screen Sintered and Porous Filter Mesh Disc
Stainless Steel Sintered Porous Wire Mesh Metal Filter Disc
powder sintered porous SS 316L stainless steel filter disc
Sintered Filter Sintered micron stainless steel porous metal filter disc
powder sintered porous 316L stainless steel filter disc
Custom Round Stainless Steel Screen Sintered and Porous Filter Mesh Disc
Sintered Stainless Steel 304 316L Porous Round Strainer Filter Disc 0.2-120um
Sintered Metal Filter Disc
Custom made high precision 316L Sintered Wire Mesh Filter Porous Sintered disc
High Temperature And Pressure Resistant Sintered Filters Discs
|
|
|
|
|||
|
Filter Disc IN STOCK
|
|
|
|
|
||||
|
THICKNESS
|
DIAMETER
|
|
|
|
||||
|
1MM
|
1.6, 1.9, 2, 3, 5, 6, 7, 8, 10, 15, 18, 20, 22, 25, 30, 35, 40, 42, 46.5, 50, 53, 100
|
|
|
|
||||
|
1.5MM
|
3, 3.18, 4, 6, 6.5, 7, 12, 12.6, 14, 20, 22, 24, 25, 28, 32, 50, 97
|
|
|
|
||||
|
2MM
|
2, 3, 3.18, 4, 4.3, 5, 6, 6.35, 6.5, 7, 8, 8.5, 9.8, 10, 11, 11.5, 12, 13, 14, 15, 18, 20, 22, 24, 25,26, 27, 30, 32, 35, 37, 38,
40, 42, 50, 52, 53, 54, 56, 57, 58, 59.7, 60, 72, 90 |
|
|
|
||||
|
2.5MM
|
11, 14, 34, 39, 40, 42, 48, 50, 54, 58, 60
|
|
|
|
||||
|
3MM
|
2, 3, 4.8, 5, 7, 8, 10, 12, 13.3, 16, 17, 18, 19, 20, 23, 24, 24.5, 25, 26, 26.5, 28, 30, 32, 33, 35,
36, 36.3, 38, 39, 40, 42, 46, 47, 50, 52, 57, 60, 70, 82, 96
|
|
|
|
||||
|
4MM
|
4, 5, 6.35, 32
|
|
|
|
||||
|
5MM
|
4, 4.5, 4.7, 5, 6, 6.1, 13, 15, 20, 25, 32, 38, 42, 47, 50
|
|
|
|
||||
|
10MM
|
10, 13
|
|
|
|
||||
