Quick Details
-
Model Number:
-
THC-20A
-
Max. Current:
-
20A
-
Product name:
-
Digital Multifunctional Timer
-
Frequency:
-
50Hz/60Hz
-
Type:
-
MCB Time Switch
-
Installation:
-
Din Rail
-
Program:
-
Weekly
-
Certifications:
-
CE RoHS EMC LVD,EESS
-
Certification:
-
CE,ROHS,EESS
Quick Details
-
Max. Voltage:
-
220-240VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
IGERCN or OEM
-
Model Number:
-
THC-20A
-
Max. Current:
-
20A
-
Product name:
-
Digital Multifunctional Timer
-
Frequency:
-
50Hz/60Hz
-
Type:
-
MCB Time Switch
-
Installation:
-
Din Rail
-
Program:
-
Weekly
-
Certifications:
-
CE RoHS EMC LVD,EESS
-
Certification:
-
CE,ROHS,EESS

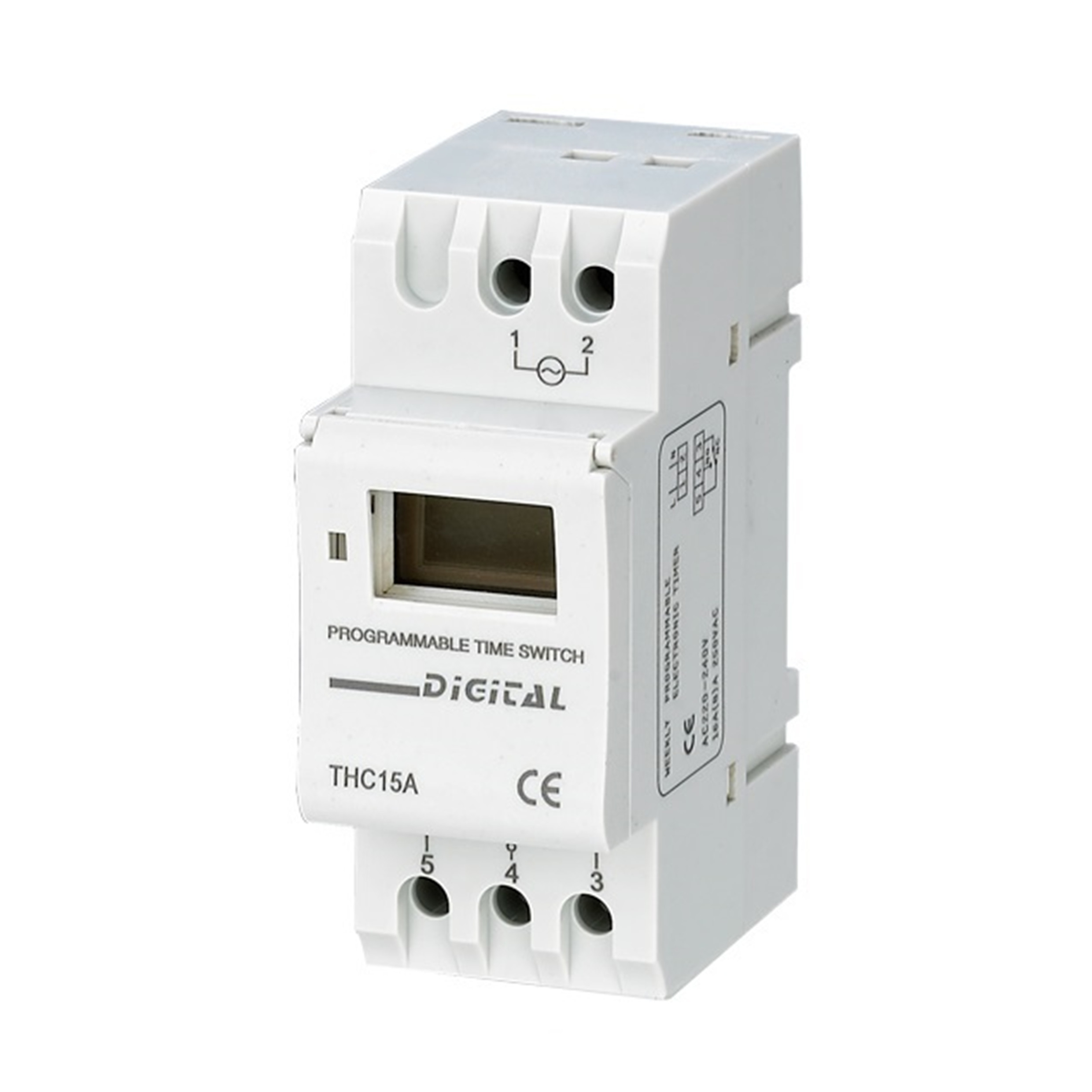

Timer of THC15A/20A/30A series are cost-effective choice, there are very diverse features and flexible installation, and a wide range of applications including commercial and industrial lighting and equipment control.
| Product Description | Digital Timer progaramming |
| Model | THC-20A |
| Current | 16 /20/25/30 amp |
| Voltage | 220-240vac ; others could be customized |
| Advantage | 16ON +16OFF ,during 24hours |
| Chips of Industrial, strong anti-jamming ; | |
| 650MA Lithium battery inside ,reserving 5 years; | |
| Silver relay contactor(not silver covered or copper) ; | |
| Lightning Surge protection ; | |
| PC new material cover ; | |
| Packing | 1pc/ colour box ; 100pcs/ carton |
| Key colour |
grey ,blue ,red and the butterfly blue(common colour) ♣customized colour: light red ,dark red ,orange, grey and yellow |
| Certification | CE ,EESS (SAA) |
Applications:
• Lighting Panel Control • Landscape Lighting • Light of billboard or showcase control
• Air-condition or Commercial Refrigeration • General Electrical Circuits
• Pumps/Motor/Fan Control • Hydroponic Systems • Wastewater Treatment Systems
• Generator Exercising • Boilers / Heater Control • Hot Water Pump Circulation
• Aerobic Waste Water Systems • Pool & Spa • Ventilation • Bug and Pest Control Systems
Technical data:
- Voltage rating: AC 220V 50/60Hz (Note: 12V, 24V, 36V, 48V, 110V is customizable;)
- Voltage limit: AC 180V~250V
- Hysteresis: 1 sec/day (25℃)
- ON/OFF operation: 16ON & 16OFF
- Power consumption: 2VA(max)
- Display: LCD
- Service life: a) Mechanical life:10 7 b) Electrical life: 10 5
- Minimum interval: 1 minute
- Weight: approx 150g
- Count down:1 sec-99 min 56 sec
- Pulse:1 sec-59 min 59 sec
- Load capacity: a) Lamp load : 2000W b) Resistive load: 16A/250V AC c) Lagging load: 10A/250Vac
- Switching contact: 1 changeover switch
- Power reserve: 5 years (Lithium battery)
- Ambient temperature: -10~+40℃
- Ambient humidity: 35~85%RH
♣ Taiwan chips : strong anti-jamming, tested by EMC4000V;
♣ have Lightning Surge protection
♣ 650MA Lithium battery inside: reserving for 5 years
♣ 30A Relay: Silver contacted
♣ the Key colour: grey ,blue ,red and the butterfly blue(common colour)
♣ customized colour: light red ,dark red ,orange, grey and yellow
