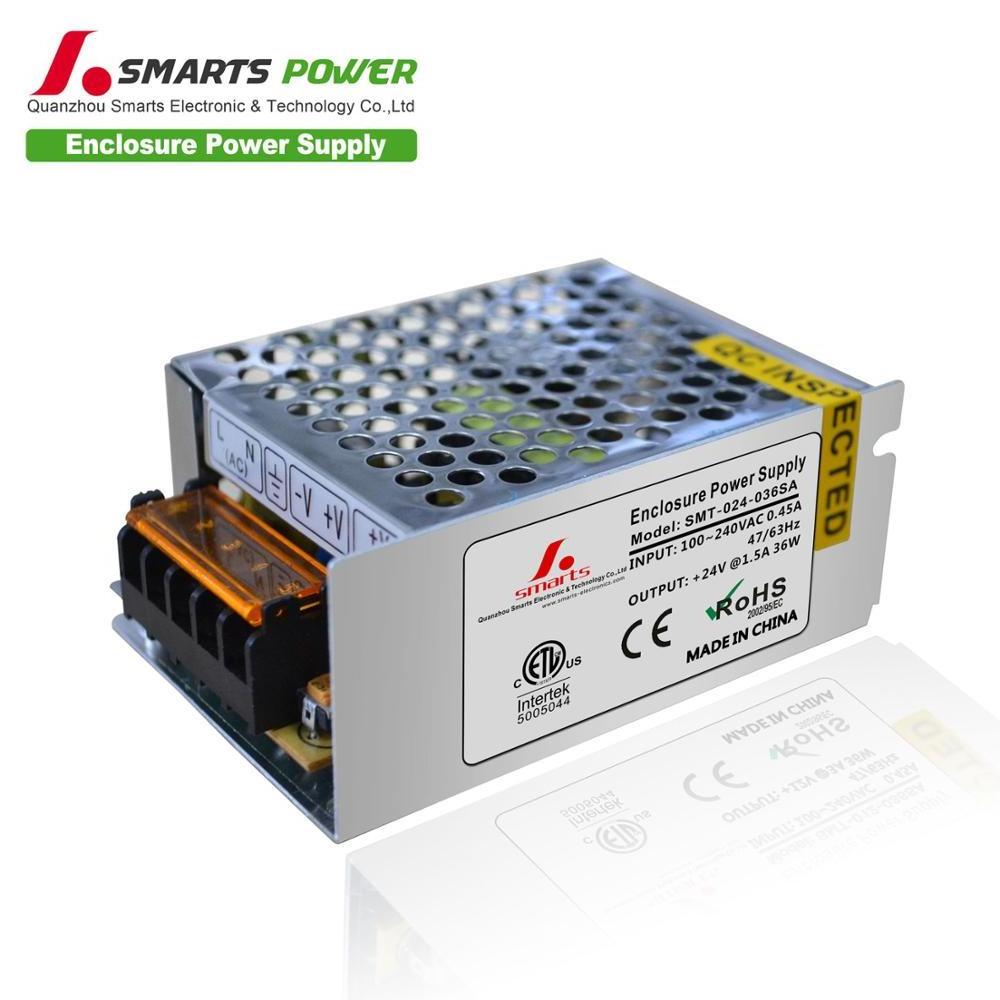

36W ac/dc 220 volt 120 volt to 24 volt transformer

FOB Reference Price: Get Latest Price

≥5 Pieces

US $2

Free Inquiry

Customized Request

Quick Details

Product Description

Description	Label
Competitived price and high reliability 105 ° C Output capacitor AC input power suitable for the world High efficiency and low operation temperature Soft-start current can reduce the AC input impact effect With short-circuit and overload protection Compact size, light weight 100% full-load burn-in test Installed with EMI filter, minimum wave 2 years warranty

Applications

Our products are widely used in various industries, such as

Parameter

Model		SMT-005-036SA	SMT-012- 036SA	SMT-024- 036SA	SMT-036- 036SA	SMT-048- 036SA
output	DC voltage	5V	12V	24V	36V	48V
	Voltage tolerance	±2%	±1%	±1%	±1%	±1%
	Rated current	7.2A	3A	1.5A	1A	0.75A
	Current range	0~7.2A	0~3A	0~1.5A	0~1A	0~0.75A
	Rated power	36W	36W	36W	36W	36W
	Ripple&noise	100mvp-p	150mvp-p	150mvp-p	150mvp-p	150mvp-p
	DCvoltage ADJ.range	± 10%	±10%	±10%	±10%	±10%
input	Voltage range	100~240Vdc
	frequency	47~63HZ
	AC current	3.2A/115VAC,1.6A/230VAC
	efficiency	83%	83%	83%	83%	83%
	Inrush current	Cold start current 18A/115VAC,36A/230VAC
	Leakage current	< 1mA/240VAC
protection	overload	Rated output power115%~150% start over load protection
	overload	protection type:cutoff output,recovery after restart power
	Over voltage	6.8~8.2V	15.6~17.8V	18.6~20.8V	30.6~33.2V	33.2~35.6V
	Over voltage	protection type:hiccup mode,auto-recovery after fault condition is removed
	-----	-----
	-----	-----
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
safety	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
