Quick Details
-
Model Number:
-
HK65-S Ball Valve
-
Brand Name:
-
COVNA
-
Wiring Method:
-
CR2 2 Wires Auto Return
-
Max. Working Pressure:
-
1.0MPa
-
Open/close time:
-
≤5S
-
Sealing Material:
-
EPDM, PTFE
-
End Connection:
-
Threaded
-
Voltage:
-
DC24V (±10%), AC110-220V, 50/60Hz
-
Certification:
-
rohs, CE, ISO9001
Quick Details
-
Port Size:
-
1/2"~1", DN15~DN25
-
Warranty:
-
1 years, 12 Months
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
HK65-S Ball Valve
-
Brand Name:
-
COVNA
-
Wiring Method:
-
CR2 2 Wires Auto Return
-
Max. Working Pressure:
-
1.0MPa
-
Open/close time:
-
≤5S
-
Sealing Material:
-
EPDM, PTFE
-
End Connection:
-
Threaded
-
Voltage:
-
DC24V (±10%), AC110-220V, 50/60Hz
-
Certification:
-
rohs, CE, ISO9001
Features:
1. Full copper gear design, high-precision and high torque output
2. Compact design and structure
3. Low power consumption, energy-saving
4. Can be mounted in any direction
5. Good sealing performance, IP67 protection class
|
Item
|

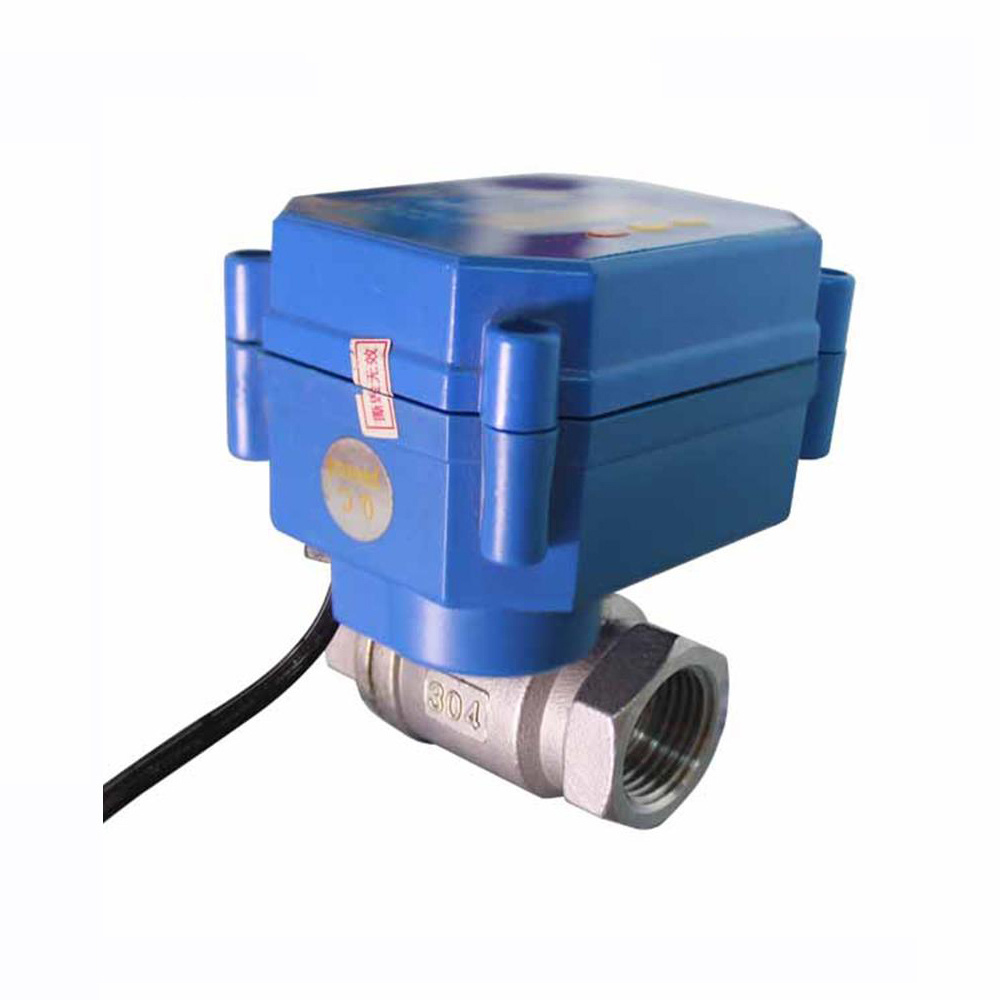

12V Small Stainless Steel Electric Rotary Actuator Fuel Shut Off Valve with Timer
|
|
Product Size
|
1/2"~1", DN15~DN25
|
|
Max. Working Pressure
|
1.0MPa
|
|
Media
|
Water, Air, Gas, Oil, Liquid
|
|
Optional Voltage
|
DC5V, DC12V, DC24V, AC/DC9-35V, AC110V-230V (Optional)
|
|
Wiring Control Methods
|
CR2-01, CR2-02, CR3-01, CR3-02, CR3-03, CR4-01, CR5-01, CR5-02, CR7-01, CR7-02, CR7-03, CR7-04 (Optional)
|
|
Working Current
|
≤80mA
|
|
Open/Close Time
|
≤7S
|
|
Life Time
|
100,000 Times
|
|
Valve Material
|
Stainless Steel
|
|
Actuator Material
|
Engineering Plastics
|
|
Sealing Material
|
EPDM & PTFE
|
|
Actuator Rotation
|
90°
|
|
Torque Output
|
2Nm
|
|
Ambient Temperature
|
-15°C~50°C
|
|
Liquid Temperature
|
2°C~90°C
|
|
Manual Override
|
Optional
|
|
Position Indicator
|
YES
|
|
Keeping Valve Open Time
|
0H:0M:0S~99H:59M:59S
|
|
Application
|
Petrochemical, Power, Environmental Protection and Large-Scale Intelligent Water Meter Control and Other Fields
|
Dimension:
|
Wiring Diagram
|
|
|
|
|||
RD connect with positive, BK connect with negative, the valve closed, the actuator automatically power off after in place, the valve remains fully closed position.
BK connect with positive, RD connect with negative, the valve open, the actuator automatically power off after in place, the valve remains fully open position.
Suitable Working Voltage: DC12-24V.
Exceeding the working voltage is forbidden.
When the SW is closed , the valve open, the actuator automatically power off after in place.
When the SW is open, the valve closed, the actuator automatically power off after in place.
Suitable Working Voltage: DC12-24V.
Exceeding the working voltage is forbidden.
