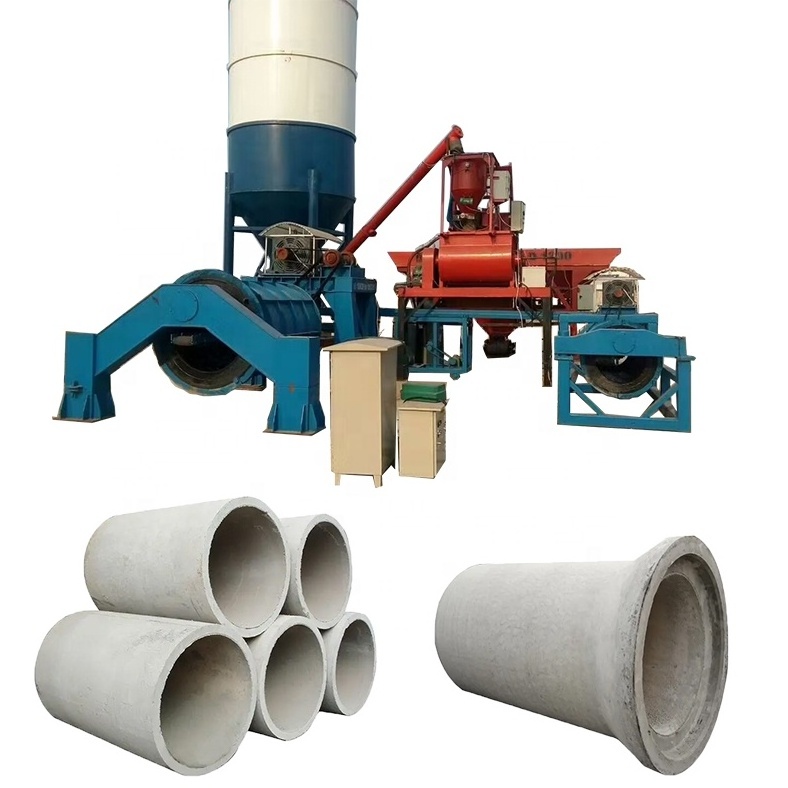

Machines and Equipment for a Concrete Pipe Production Line

1, Concrete Pipe Forming Machine:

Horizontal Type: (diameter: 300 to 2400mm; length:1000 to 5000mm) reinforced concrete  pipe , drain pipe , municipal engineering pipe

HF Vertical Extruding Pipe-Making Machine Vertical Type: (diameter: 150 to 1000mm; length: 500 to 1000 mm)

Main Technical parameters:
HF V HF vertical extruding pipe-making machine is the ideal equipment to manufacture cement pipe. Reasonable design ,reliable and simple operation ,accord with state  standard GB11836-89.This machine mixes river sand ,tubular products of inner diameter 20 0-1000mm . The tubular products made by this machine has the following advantages :average wall thickness ,smooth inner and outer wall ,good impermeability ,high compresive strength ,low cost ,firm and reliable tie-in, convenient construction, high efficiency ,and instant film-releasing maintenance ,etc ,And the tubular products are used widely in irr i gation in the field and the water supply and sewage works in the town . Vertical screw extruding Pipe-Making machine

Main Technical parameters:

(1) Mould diameter (inside mm):

φ200,  φ300,  φ400,  φ500,  φ600,  φ700,  φ800,  φ1000

(2) Wall Thickness:

φ200  30mm, φ300  30mm φ400  40mm,  φ500  50mm,  φ600  60mm, φ700  70mm, φ800  80mm ,φ 9 00 9 0mm , φ1000  100mm

(3)whole power : 15 kw

(4)speed of main shaft:   45r/min

(5)reducer rate : 1:5.8

(6)moulding cycle:   5-10min(depends on the dimen s ion )

(7)productivity (per shift ): 3 0~ 1 00pcs /shift

(8)whole dimenstion:2200*1840*4350mm

(9)  length of pipe from 200mm-1000mm

2, Mouds

the finished pipe and tube type

1. The flat mouth pipe is the earliest interface form of cement pipe. It is difficult to manufacture, high in production efficiency, and low in manufacturing cost. The interface seal adopts steel mesh concrete wiping tape, which is a rigid connection, but its sealing effect and seismic performance are poor. The displacement of the foundation will cause the interface to be opened, so that the sewage will pollute the underground soil and cause great inconvenience to the society and the environment, so this interface method is less and less practical.

2. Socket type interface
The socket type interface adopts rubber ring to seal the water and it is a flexible connection. The insertion depth of the interface is 80-100mm, and the relative rotation angle of the interface is 1.5°. The cement pipe of this interface has good seismic performance. The pipe foundation is selected as a sand foundation or a concrete foundation for installation. high speed. However, large-diameter cement pipes are not suitable for socket joints, because large-mouth cement pipes produce circumferential cracks.

3. Flexible tongue-and-groove interface
Flexible tongue-and-groove joints are mainly suitable for cement pipes with a diameter ≥ d1200. This interface form is also a flexible connection. This interface form has the advantages of the socket type, and is more significant than the socket type, but it also has a remarkable feature that the socket type does not have, that is, it is suitable for large-diameter pipes and sockets. The depth of the pipe installation joint pit is not easy to control, and it is not easy to compact during backfilling. The stress is concentrated at the transition of the pipe socket. In severe cases, the pipe body will have circular cracks, which affects the service life of the pipe. The flexible tongue and mouth pipe has good contact with the foundation. It is evenly borne when subjected to the load, so it is safer to use; the outer wall of the socket of the socket pipe is an inclined surface, so it is not easy to control and easy to leak when the inspection well is built, so the use of flexible tongue and mouth pipe will improve a lot; flexible enterprise The mouth tube can also be used as a jacking tube.

3,Automatic Rolling Steel Frame Welding Machine

4,Concrete Mixer: To mix the cement, sand and other materials for making the pipe

5, Automatic Materials Feeder: To feed the concrete into the mould to make the pipe

6, Gantry Crane: To transport the pipe and the mould , ( for the horizontal type pipe moulding machine )

Questions

The Clients need to provide us the following informations:

1, Which type of the machines are planning to buy, Horizontal type or Vertical type ?

2,Which type of pipes are planning to make, Flat Joint, Socket Joint or Rabbet Join t?

3,What is the size of the pipe are planning to make, what is the diameter, and the length and daily capacity?Whether add  reinforcement steel in pipe or not?

The pipe thickness in Chinese National Standard is:

Diameter :300,400,600,800,1000,1200,1500,2000mm

Corresponding thickness:30,40,60,80,100,120,150,200mm

Please confirm the thickness otherwise will be subject to the Chinese National Standard.

Packing: Naked packing or stretch film packing or according to customers' requirements

Guarantee for one year and after sale service for whole life.To offer free design,free technology support and free machine maintenance trainning.  Engineering service to oveaseas customer for guiding installation.
