Quick Details
-
Brand Name:
-
MesuLab
-
Model Number:
-
ME-EXPLORE7000
-
Analysis method:
-
ED-XRF
-
Detector:
-
25mm2 , 0.3mil,SDD, resolution≥139eV
-
Element range:
-
all elements from Mg to U
-
Measurement time:
-
1-60 s
-
Detection limit:
-
down to ppm level
-
Concentration range:
-
1ppm~99.99%
-
Calibration method:
-
Ag
-
Control:
-
One-touch test,no need to select a specific test mode
-
Ambient temperature:
-
-20℃~+50℃
-
Certification:
-
without
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MesuLab
-
Model Number:
-
ME-EXPLORE7000
-
Analysis method:
-
ED-XRF
-
Detector:
-
25mm2 , 0.3mil,SDD, resolution≥139eV
-
Element range:
-
all elements from Mg to U
-
Measurement time:
-
1-60 s
-
Detection limit:
-
down to ppm level
-
Concentration range:
-
1ppm~99.99%
-
Calibration method:
-
Ag
-
Control:
-
One-touch test,no need to select a specific test mode
-
Ambient temperature:
-
-20℃~+50℃
-
Certification:
-
without
Product Description

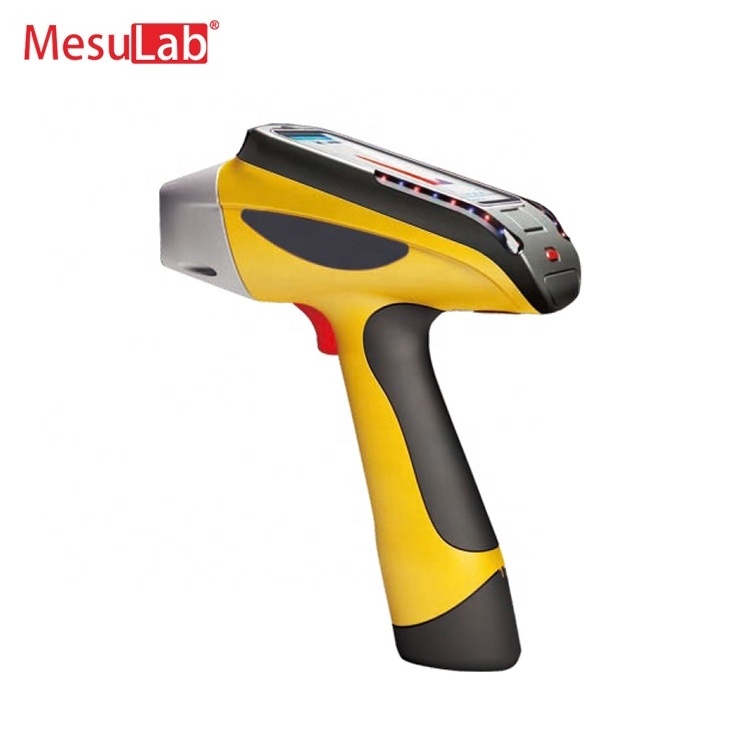

ME-EXPLORE7000 Handheld XRF Analyzer for mineral
The new generation of Explorer XRF portable X-ray fluorescence spectrometer series is mainly used for metal materials reliability identification, alloy grades rapid identification, soil heavy-metals field testing and field in situ multi-element analysis for various geological ore, fully meeting the market demand from raw materials testing, process control to field online analysis of various elemental composition in product testing.
Advantages
1. The introduction of 3 core technologies, miniature low-power end-window integrated X-ray tube, large area beryllium-window silicon drift detector (SDD) and miniature multi-channel digital signal processor, has significantly saved test time, improved the detection accuracy and reduced the errors, which enables the portable analyzers possess paralleled performance to desktop analyzers.
2. Small in size and easy to carry
3. On-site and in situ analysis arbitrarily at any time and any place
4. Non-destructive testing
5. 1-2 s rapid portable analysis ,longer time fine testing by bench-top measurement
6. Measurement can be directly carried out on the sample surface in field analysis, without additional sample preparation, which suits samples of any type, such as electrical and electric products, alloys, geology and mineral resources, soil, rock, residue, small solid particles, and liquid sediment.
7. Built-in HD camera for ease of viewing the testing point
8. The multiple measurement modes to choose from and unlimited number of modes to add at will, together with its automatic matching feature, help achieve easy one-button measurement. Its built-in intensity correction method can correct all deviations from samples of irregular geometric shape and uneven structure and density.
l Innovative software interface and core combining EC with FP software has a wider application, with high sensitivity, short test time, easy operation, less restriction for the operator.
9. 12 collimator&filter combination.
10. Embedded Windows CE system, high resolution LCD touch screen, digital multi-channel technology and SPI data transmission greatly raise the data transmission and data processing ability. Wherever you are, the measurement data is all at your reach.
11. Triple security: auto-sensing, blank test, two-seconds auto-off X-ray tube with radiation level far below international safety standards, no radiation leakage; thicker protective wall. Protective safety hood.
12. Two large-capacity 9000mAH lithium batteries can work for 8 hours continuously. Equipped with a wide-voltage AC charger or car-loaded charger ensure test at anytime, anywhere.
13.Warning indicator system. Powered, the green light is on; testing,the red light flashes to prevent error.
14.The instrument is of waterproof, dustproof and works continuously in an environment of high temperature and high humidity. Its protective box uses high strength military supplies with good waterproof, shockproof, anti-pressure function.
Standard configuration
1) AMP and digital multi-channel system
2) Power and control system
3) Embedded PDA
4) Dedicated XRF analytical software(PDA version)
5) Laboratory test bracket (optional)
6) 110V/220V universal adapter
7) 2× 9000mAh li-ion battery, 1 li-ion charger(27000mAh large-capacity battery is optional)
8) Large-capacity TF storage card and TF reader
9) Anti-shock, anti-pressure, water-proof lockable portable case
Specification
1. Analysis method: ED-XRF
2. Detector: 25mm2 , 0.3mil,SDD, resolution≥139eV
3. Excitation source: 50KV/200uA micro-Ag target and end-window integrated X-ray tube and HV power supply
4. Element range: all elements from Mg to U
5. Measurement time:1-60 s
6. Sample type: solid, liquid, powder
7. Detection limit: down to ppm level
8. Concentration range: 1ppm~99.99%
9. Calibration method: Ag
10. CPU:1 GHz
11. Memory:1G, extended memory for 32G max. (standard 4G)
12. Control:One-touch test,no need to select a specific test mode
13. Ambient humidity: ≤90%
14. Ambient temperature: -20℃~+50℃
15.
Power:
DC9V 12W Max (working) ; 8W Max (standby) ; 2W Max (sleep)
16.
Power Source:
Chargeable li-ion battery, 9000mAH, 12 hours continuous running, 110V/220V universal adapter for AC power
17.
Charger:
DC charger: car charger ; AC charger: 110/220V, 50/60HZ
18:
Monitor:
Transflective LCD touch screen (resolution 1080×720 or higher)
19.
Collimator and Filter:
φ4.0/2.0 mm collimator, 6 kinds of filters, 12 switchable combinations, for various samples test
20.
Data Transmission:
Digital multi-channel technology, SPI data transmission, fast analysis, high count rate, waterproof mini-USB, external PC
21:
Storage Card: 4G
22.
Safety:
auto-sensing; no sample, no work; max. radiation <5μSv/hr.
23.
Warnings:
Powered,the green indicator is on; testing, red radiation warning indicator flashes .
24.
Package:
Vacuum packing, lockable anti-pressure, waterproof, shock absorption
25.
Applications:
Mineral elements analysis
|
Model
|
ME-EXPLORE7000
|
|
Excitation Source
|
X-ray tube (Ag target),max. 50kV,200μA
|
|
Detector
|
SDD, 25 mm2, 0.3mil, resolution<150eV
|
|
OS
|
Windows CE 7.0, embedded PDA
|
|
Software
|
Brand new FP and EC software
|
|
GPS, WiFi
|
Inbuilt
|
|
Video
|
HD CMOS camera
|
|
Power Consumption
|
≥0.995
|
|
Stability
|
better than 1.5%/10min
|
|
Display value
|
0.00-600.00
|
|
Applications
|
Mineral elements analysis
|
Detailed Images
Related Products
After Sales Service
MesuLab After-service
MesuLab offer one year warranty for customers, during the warranty period, in case if the Euipment with any problem, customer take video to us to check what happend, and then we will help customer to sovle the problem by video until the problem be solved. If need to replace any part, we will delivery the part to customer in time and send video to customer to teach him how to replace.
