Quick Details
-
Model Number:
-
MT-1-112-F001-T000-RS
-
Max. Current:
-
5A
-
Mechanical Life:
-
40000 Cycles
-

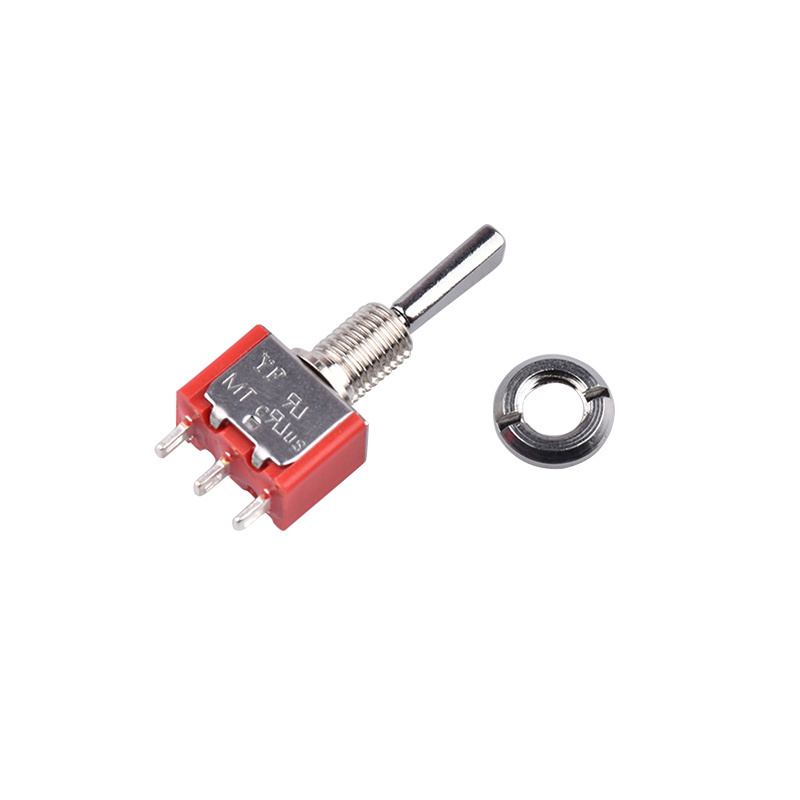

Product name:
-
Toggle switch
-
Function:
-
on-(on)
-
Application:
-
Transmitter
-
Electrical Life:
-
10000cycles
-
Handle option:
-
Metal Flat
-
Terminal type:
-
Solder Terminal
-
Rating:
-
5A 125VAC 2A 250 VAC
-
Color:
-
Red
-
Panel mounting hole:
-
6mm
-
Lever:
-
Nickel Plated
-
Certification:
-
RoHs
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YF
-
Model Number:
-
MT-1-112-F001-T000-RS
-
Max. Current:
-
5A
-
Mechanical Life:
-
40000 Cycles
-
Product name:
-
Toggle switch
-
Function:
-
on-(on)
-
Application:
-
Transmitter
-
Electrical Life:
-
10000cycles
-
Handle option:
-
Metal Flat
-
Terminal type:
-
Solder Terminal
-
Rating:
-
5A 125VAC 2A 250 VAC
-
Color:
-
Red
-
Panel mounting hole:
-
6mm
-
Lever:
-
Nickel Plated
-
Certification:
-
RoHs
Product Description
|
Specifications
|
|
|
Rating
|
5A 125VAC, 2A 250VAC
|
|
Contact Resistance
|
20MΩ Max
|
|
Dielectric Strength
|
1500V AC， 1 Minute
|
|
Operatiing Temperature
|
-25ºC~+85ºC
|
|
Electrical Life
|
10000 cycles
|
|
Mechanical Life
|
40000 cycles
|
|
Circuit
|
SPDT
|
|
Switch function
|
ON (ON)
|
|
Materials:
|
|
|
Actuator
|
Brass,Aluminium Alloy,Nickel-plated,Chrome-plated
|
|
Bushing
|
Brass,Aluminium Alloy,Nickel-plated,Chrome-plated
|
|
Housing
|
Stainless Steel
|
|
Support Bracket
|
Brass,Tin-plated
|
|
Contact/Terminals
|
Copper Alloy, Silver or Gold-plated
|
NOTE: Specifications and Materials listed above are for switches with standard options. For information on specific and custom switches, Please feel free to contact us.
( )= Momentary
( )= Momentary
Typical Applications:
• Medical equipment
• Telecommunications
• Instrumentation
• Machinery
• Medical equipment
• Telecommunications
• Instrumentation
• Machinery
Standard Hardware：Hex nuts*2 ，Lock washer *1，Locking ring*1 . or Round nut *1
