1. Support the detection of CT and Pt
2. Meet the requirements of GB 20840.3-2013 and GB 20840.2-2014
3. All testing items can be completed by single machine without other auxiliary equipment
4. It is equipped with micro fast printer, which can print test results on site directly
5. It adopts intelligent controller and is easy to operate
6. Large screen LCD, graphic display interface
7. The turning point value of CT / Pt (excitation) is given automatically according to the regulation
8. Automatic 5% and 10% error curves
9. It can save 3000 sets of test data without losing after power failure
10. It supports USB flash disk data transfer, which can be read by standard PC and generate word report document
11. It is small and light and less than 22kg, which is very convenient for field test
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Huatian
-
Model Number:
-
HTFA-105
-

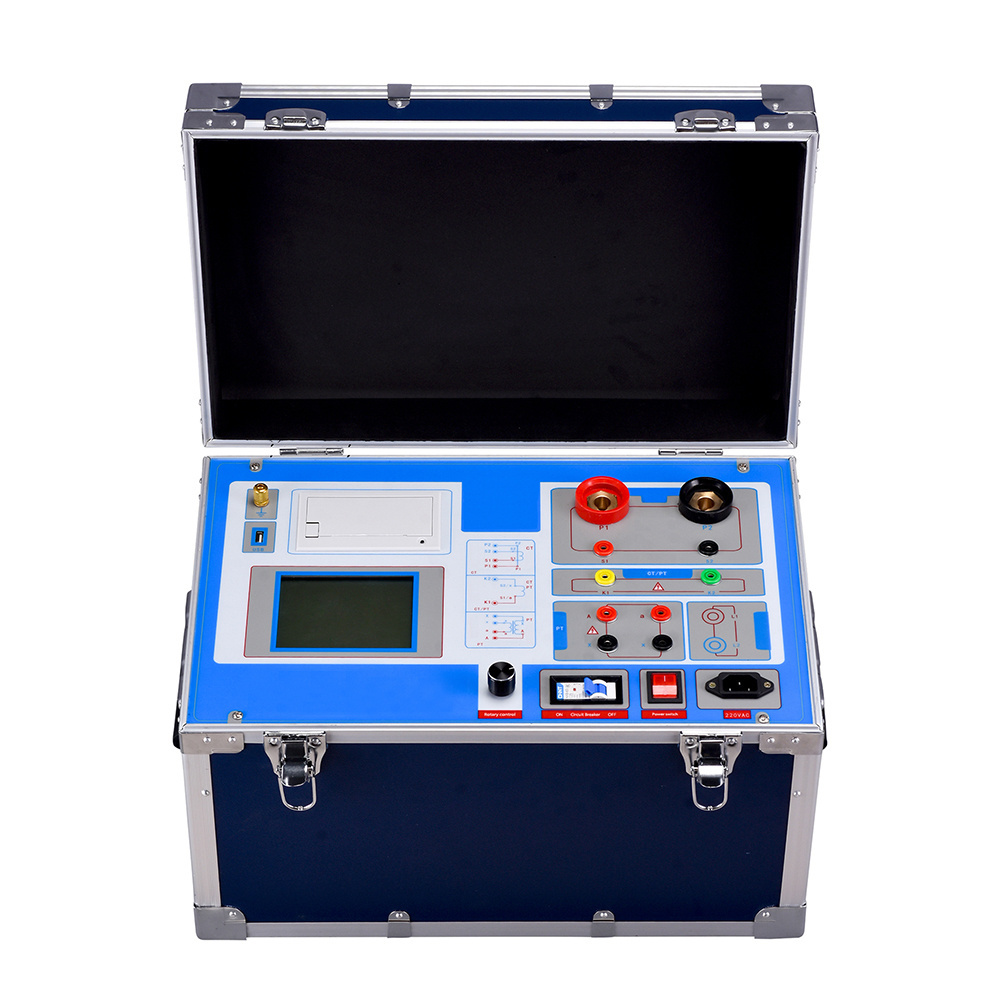

Product name:
-
CT PT Analyzer
-
0~1000V (20A peak):
-
0~1000V (20A peak)
-
High current output:
-
0-1000A
-
CT ratio test range:
-
≤5000A/1A(25000A/5A)
-
CT ratio test accuracy:
-
≤0.5%
-
PT ratio test range:
-
≤500kV
-
PT ratio test accuracy:
-
≤0.5%
-
Host Diemension:
-
410*260*340mm3
-
Host weight:
-
22kg
Quick Details
-
Warranty:
-
1 YEAR, 1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Huatian
-
Model Number:
-
HTFA-105
-
Product name:
-
CT PT Analyzer
-
0~1000V (20A peak):
-
0~1000V (20A peak)
-
High current output:
-
0-1000A
-
CT ratio test range:
-
≤5000A/1A(25000A/5A)
-
CT ratio test accuracy:
-
≤0.5%
-
PT ratio test range:
-
≤500kV
-
PT ratio test accuracy:
-
≤0.5%
-
Host Diemension:
-
410*260*340mm3
-
Host weight:
-
22kg
Product Paramenters
|
project
|
|
parameter
|
|
|
Working power supply
|
|
AC220V±10% 、50Hz
|
|
|
Output devices
|
|
Note: 0 ~ 5A is the real value, and greater than 5A ~ 20A is the calculated value
|
|
|
High current output
|
|
0～1000A
|
|
|
Excitation measurement accuracy
|
|
≤0.5%(0.2%* reading +0.3%* range)
|
|
|
CT ratiomeasurement
|
range
|
≤5000A/1A(25000A/5A)
|
|
|
|
precision
|
≤0.5%
|
|
|
PT ratiomeasurement
|
range
|
≤500kV
|
|
|
|
precision
|
≤0.5%
|
|
|
workenvironment
|
temperature
|
－10℃ ～ 40℃
|
|
|
|
humidity
|
≤90%
|
|
|
|
The altitude
|
≤1000m
|
|
|
size
|
|
410mm × 260mm × 340mm
|
|
|
weight
|
|
≤18kg
|
|
