Quick Details
-
Application:
-
other
-
Type:
-
other
-
Series:
-
other
-
Features:
-
other
-
Mounting Type:
-
other
-
Description:
-
other
-
warranty:
-
3 months
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
other
-
Application:
-
other
-
Type:
-
other
-
Series:
-
other
-
Features:
-
other
-
Mounting Type:
-
other
-
Description:
-
other
-
warranty:
-
3 months
PRODUCT DETAILS
|
Since 2014, Lonten Technology Co.,itd specializing in R&D, producing, distribution of lOT smart lifeproducts, such as smart wall switch/breaker (light,Curtain door), security electronic products (motionsensor, opening, flooding), wireless controller, Smart bulb, Smart lock, Smart Garage Door Openerand so on.
Local in Shenzhen Longgang district have 4000 square meters manufacturing workshop and officespace, equipped with 4 lines manufacturing machinery and test machinery.Providing OEM & ODM service and Regularly developing new products to lead in marketing treadsand demand. And With several certification(CE, ROHS, SGS, BV, FCC and SAA) and cooperated withsupermarket brands with high quality guarantee. |
PRODUCT DETAILS
e

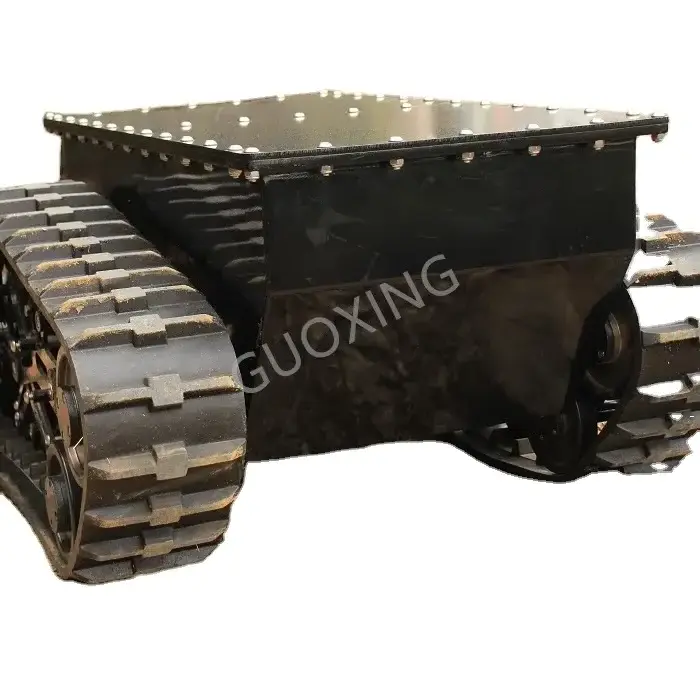

Remote Control Mobile Robot Tank Chassis
We are the professional manufacturer provide full series robot chassis including:
Tracked robot chassis
,
Wheeled robot chassis,
Universal robot chassis
Water-proof
robot chassis,
Explosion-proof
robot chassis
Heavy duty
robot chassis,
Customized robot chassis solutions.
The styles here are not completed,
click here
to get free catalogue now.
Universal Robot Chassis
Model:
Safari-138T
Safari-600T
Safari-600T Mini
Safari-880T
Safari-880T EN
Safari-900T
Safari-900T EN
Max Load weight 260kg
Water-proof Robot Chassis
Model:
PLT1000
PKT1200
Waterproof grade: IP66,
PKT1200
Waterproof grade: IP66,
Optional IP67
Explosion-proof Robot Chassis
Model:
PKT1100 & Ex
PKT1300 & Ex
Explosion-proof grade:
PKT1300 & Ex
Explosion-proof grade:
Exd(id) II T4 Gb
Waterproof grade: IP67
How to buy a correct robot chassis for your project?
1: Share what kind of robot chassis you need.
2: Share what is the working environment.
3: Share the special requirement you need.
4: Choose the model you interest in from our catalog.
|
Item
|
|
138T
|
600T
|
PLT-1000
|
Safari-880T
|
Safari-900T
|
LKT1500
|
||||||
|
Power
|
|
DC brushless motor
|
DC brushless motor
|
DC brushless motor
|
DC brushless motor
|
DC brushless motor
|
DC brushless motor
|
||||||
|
Working environment temperature
|
|
-20℃~55℃
|
-20℃~55℃
|
-20℃~60℃
|
-20℃~60℃
|
-20℃~55℃
|
-20℃~60℃
|
||||||
|
Suspension system
|
|
Christie
|
Christie
|
Christie + Matilda four wheel balance suspension
|
Christie + Mathilda 4-wheel balance
|
Christie
|
Christie
|
||||||
|
Rated power
|
|
138W*2
|
650W*2
|
1000W*2
|
1KW*2
|
1000W*2
|
2000W*2
|
||||||
|
Operation speed
|
|
0~1.2m/s
|
0~1.4m/s
|
0~1.6m/s
|
0~1.6m/s
|
0~1.6m/s
|
0~1.3m/s
|
||||||
|
Max obstacle clearance
|
|
50mm
|
170mm
|
180mm
|
200mm
|
160mm
|
220MM
|
||||||
|
Max climb ability
|
|
30°
|
35° (able to climb stairs)
|
40° (able to climb stairs)
|
40°(able to climb stairs)
|
35°(able to climb stairs)
|
40°able to climb stairs
|
||||||
|
RC distance
|
|
open 100M
|
open 300M
|
open 300M
|
open 300M
|
open 300M
|
open 300M
|
||||||
|
Working time
|
|
3H
|
1.5H
|
1.15H
|
1h20m
|
1.5H
|
1.5H
|
||||||
|
RC function
|
|
The right rocker controls the body movement
|
The right rocker controls the body movement
|
The right rocker controls the body movement
|
The right rocker controls the body movement
|
The right rocker controls the body movement
|
The right rocker controls the body movement
|
||||||
|
Size
|
Outer Dimension
|
600*450*190mm
|
1020*760*360mm
|
1100*800*460mm
|
1010*720*435mm
|
1215*820*440mm
|
1650*990*620mm
|
||||||
|
|
Inner dimension
|
300*240*80mm
|
600*300*230mm
|
800*370*300mm
|
600*320*240mm
|
1050*375*150mm
|
1270*400*310mm
|
||||||
|
|
Height of chassis
|
90mm
|
90mm
|
120mm
|
140mm
|
185mm
|
170MM
|
||||||
|
|
Width of track
|
80mm
|
150mm
|
150mm
|
150mm
|
150mm
|
150MM
|
||||||
|
|
Grounding length
|
330mm
|
540mm
|
740mm
|
740mm
|
760mm
|
995MM
|
||||||
|
Weight
|
Self weight
|
24kg
|
131KG
|
170kg
|
135kg
|
185kg
|
500KG
|
||||||
|
|
Load weight
|
20kg
|
70KG
|
100kg
|
Max.120kg
|
100kg
|
300KG
|
||||||
|
Material
|
Body
|
Stainless steel plate
|
carbon steel
|
Stainless steel plate
|
Stainless steel plate
|
carbon steel
|
Steel pipe
|
||||||
|
|
Track
|
High quality rubber with Kevlar fiber embedded
|
High quality rubber with Kevlar fiber embedded
|
High quality rubber with Kevlar fiber embedded
|
High quality rubber with Kevlar fiber embedded
|
High quality rubber inlaid with metal and Kevlar
|
High quality rubber with steel plate embedded
|
||||||
|
Battery
|
Capacity
|
20AH
|
30AH
|
30AH
|
30AH
|
30AH
|
100AH
|
||||||
|
|
Voltage
|
24V
|
48V
|
48V
|
48V
|
48V
|
48V
|
||||||
1. Chassis body is made of stainless steel, solid and durable.
2. Independent Christie suspension, shock absorption, more stable.
3. Superior grip, perfect obstacle-crossingperformance.
4. Operation in complex environment.
*Make the industry more convenient!
Also provide
completed customized robot solutions
!
Users can communicate with the main control through CAN bus protocol.
Application:
Waterway surveying and mapping
Waterway surveying and mapping
Mineral exploration
Pipeline inspection
Security inspection
Military rescue
Firefighting robot chassis
Military rescue
Firefighting robot chassis
Unconventional photographing
Special transportation
AFTER-SALE SERVICE
AFTER-SALE SERVICE
1: Online technology support!
2: Free video support
3: Free spare parts during warranty period
4: We have distributor station
in
5: Worldwide on-site training, maintenance and repair services.
MORE PRODUCTS
MORE PRODUCTS
COMPANY PROFILE
COMPANY PROFILE
Founded in 2004, Shandong Guoxing Intelligent Technology Co., Ltd. is a special robots provider in China, with a vision to offer various solution for special and safety industries.
Guoxing Intelligent has developed a full line-up of robotics that fully meet special and safety industries requirements, including robot chassis, electrical&diesel firefighting robot, A G V security robot, E O D robot, some of them have obtained C E , K A & M A , and C N A S certification. Back by more than 20 years manufacturing experience, Guoxing intelligent also provides completed customized robot solutions comprising inspection robot and other solutions.
PRODUCT LINE
PRODUCT LINE
certification
certification
Packing&transportation
Packing&transportation
FAQ
FAQ
1:Are you a manufacturer?
Yes, we are a professional manufacturer for all kinds of robot chassis, firefighting robot, security robot and completed robot solutions such as customized inspection robot, etc. As we are the manufacturer, we can support OEM/ODM service.
2: How about the after-sales term?
We have a completed after-sales system. The warranty is 1 year, oversea training is offered. More details contact us to check the after-sales document.
3: Does your product support secondary development?
Yes, users can communicate with the main control through CAN BUS protocol for variety of advanced operation modes. Such as camera, senors, mechanical arm, etc.
4: How about the shipment?
Our packing meets international shipment standard. We can quote price based on EXW, FOB, CIF, DDP by sea or by air as you like.
5: How about the quality?
Our company obtained ISO9001, ISO14001, ISO45001, Three-A and other more than 30 certificates and honors. We produce high-quality products in strict accordance with the certification system. Each product will undergo strict testing and inspection before shipment, and can provide production inspection video and report. Our firefighting robots have passed the CANS certification, robot chassis with CE certification.
