Quick Details
-
Brand Name:
-
Moreday
-
Model Number:
-
MDQ2-63
-
Rated Current:
-
63A
-
Pole:
-
2P/3P/4P
-
Frequency::
-
50/60Hz
-
Warranty:
-
1Year
-
Max Voltage:
-
230V
-
Certification:
-
CE ISO
Quick Details
-
Type:
-
CB
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Moreday
-
Model Number:
-
MDQ2-63
-
Rated Current:
-
63A
-
Pole:
-
2P/3P/4P
-
Frequency::
-
50/60Hz
-
Warranty:
-
1Year
-
Max Voltage:
-
230V
-
Certification:
-
CE ISO
Product Description

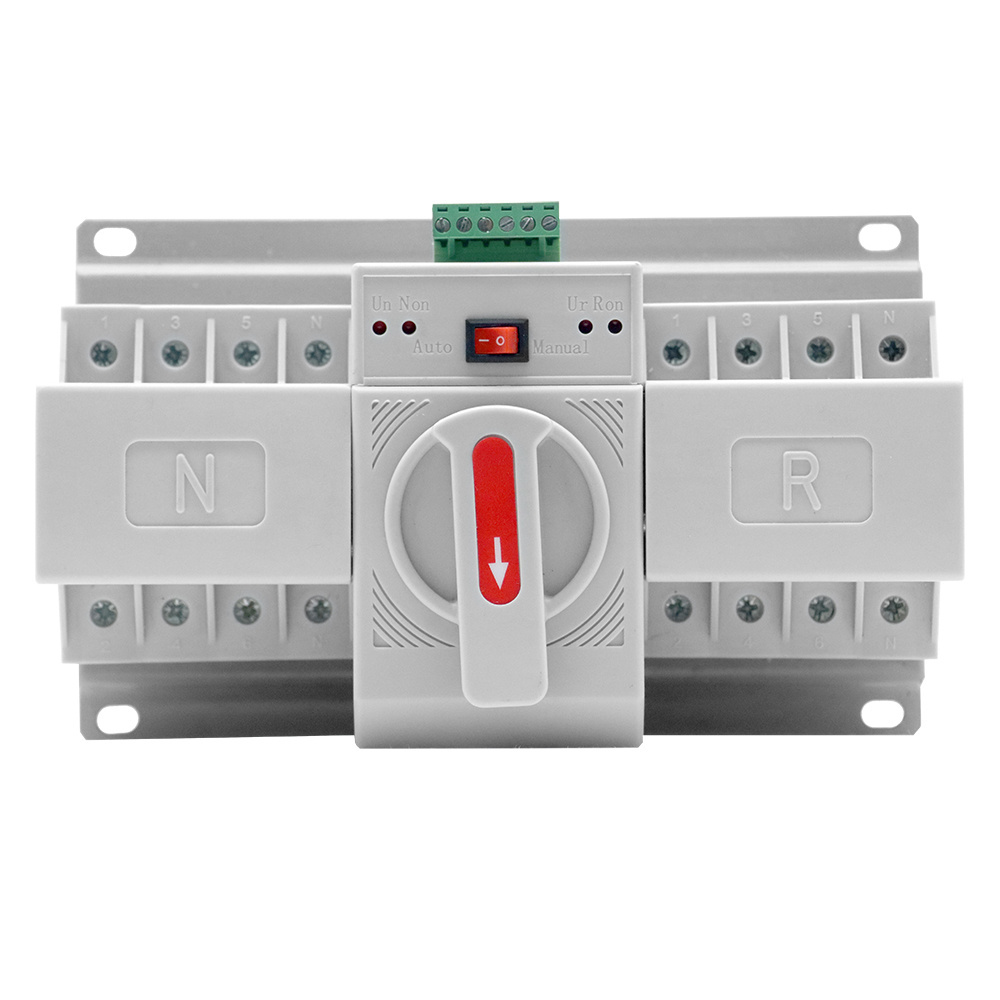

Moreday Electric Circuit Breaker Type Automatic Transfer Switch 2p 4p AC Dual Power ATS
|
Rated Working Current
|
|
10A-63A
|
|
|
|
|
|
|
|
||||||||
|
Rated Working Voltage
|
|
AC220V
|
|
|
|
|
|
|
|
||||||||
|
Controling Voltage
|
|
220VAC
|
|
|
|
|
|
|
|
||||||||
|
Rated Short Circuit Breaking Capacity
|
|
6KA
|
|
|
|
|
|
|
|
||||||||
|
Rated Insulation Voltage
|
|
AC400V
|
|
|
|
|
|
|
|
||||||||
|
Transfer Time
|
|
≤1.2S
|
|
|
|
|
|
|
|
||||||||
|
Frequency
|
|
50/60HZ
|
|
|
|
|
|
|
|
||||||||
|
ATS Level
|
|
CB Class
|
|
|
|
|
|
|
|
||||||||
|
Standard
|
|
GB/T14048.11
|
|
|
|
|
|
|
|
||||||||
Details Images
