Quick Details
-
Panel Size:
-
960*960mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Dynamic-4.8
-
use:
-
outdoor moving ad
-
item name:
-
Dynamic-6 truck led billboard
-
Cabinet material:
-
aluminum
-
Weight:
-
27kg
-
Brightness:
-
6500cd/sqm
-
Refresh rate:
-
5580Hz
-
IP level:
-
IP65
-
Warranty:
-
2 years or above
-
Certificate:
-
TUV, CE, ROHS, ETL, FCC
-
Lifespan:
-
100000 hours(about 11 years)
-
Cabinet size:
-
960*960mm
Quick Details
-
Application:
-
Outdoor mobile advertising
-
Brand Name:
-
Sunrise
-
Color:
-
Full color
-
Panel Size:
-
960*960mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Dynamic-4.8
-
use:
-
outdoor moving ad
-
item name:
-
Dynamic-6 truck led billboard
-
Cabinet material:
-
aluminum
-
Weight:
-
27kg
-
Brightness:
-
6500cd/sqm
-
Refresh rate:
-
5580Hz
-
IP level:
-
IP65
-
Warranty:
-
2 years or above
-
Certificate:
-
TUV, CE, ROHS, ETL, FCC
-
Lifespan:
-
100000 hours(about 11 years)
-
Cabinet size:
-
960*960mm
Product Description

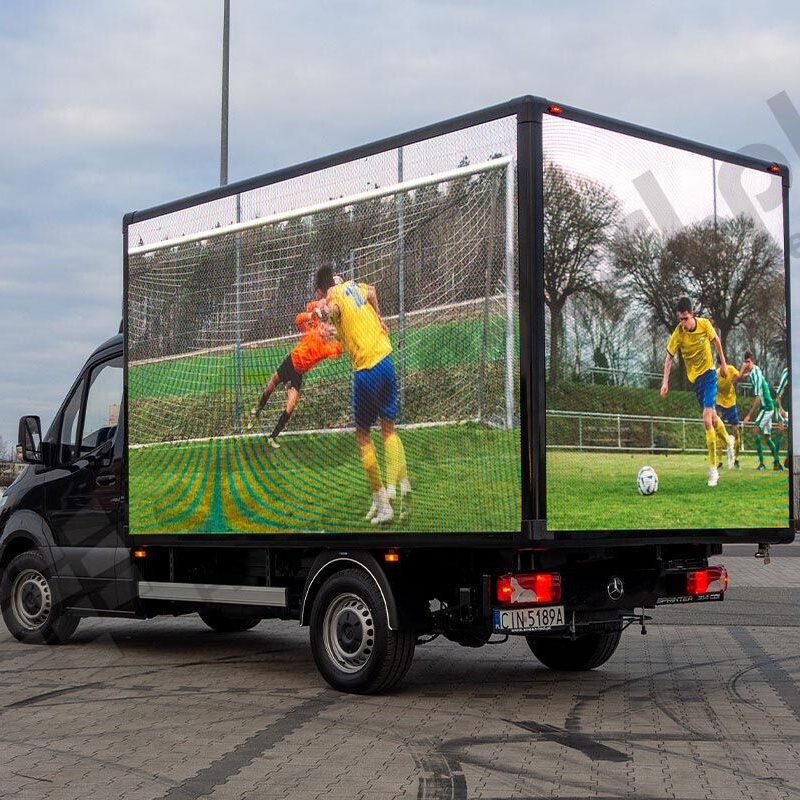

Sunrise Dynamic-6 truck LED billboard energy-saving series
.
Energy-saving truck LED billboard
|
Parameters
|
Dynamic-4.8
|
Dynamic-6
|
|
|
Pixel Pitch
|
4.8mm
|
6mm
|
|
|
Brightness
|
6000cd/sqm
|
6500cd/sqm
|
|
|
Cabinet Normal Size
|
960*960mm
|
960*960mm or 768*768mm
|
|
|
Cabinet Material
|
Aluminum
|
Aluminum
|
|
|
Module Size
|
192mm by 192mm
|
192mm by 192mm
|
|
|
Led Type
|
SMD1919 co cathode(white)
|
SMD1919 co cathode(white)
|
|
|
Pixel Density
|
43402dots/sqm
|
27777dots/sqm
|
|
|
Contrast
|
3000:1
|
3000:1
|
|
|
Refresh Rate
|
3840HZ
|
3840HZ
|
|
|
Drive Mode
|
1/10 scan
|
1/ 4 scan
|
|
|
Average Power Consumption
|
250w/sqm
(traditional LED display is 400w/sqm)
|
250w/sqm
(traditional LED display is 400w/sqm)
|
|
|
Max Power Consumption
|
900w/sqm
|
900w/sqm
|
|
|
Viewing Angle
|
H： 120° w: 120°
|
|
|
|
Operating Temperature
|
-30～+ 60 ℃
|
|
|
|
IP Rating
|
IP65
|
|
|
|
Life Time
|
100,000hours
|
|
|
Traditional truck led display on the current market generally uses commom anode technology, which provides 5voltage. But according to scientific study, Led-Red channel only needs 2.8voltage. And Led-Blue, Green both only need 3.8voltage.
Sunrise uses another totally different solution using common cathode technology, which can ruduce the power consumption as much as possible. Compared to traditional truck LED display, ours can save 20-30% of power.
The test results show that the temperature of the common cathode scheme is about 20 degrees lower than that of the convetional common anode scheme.
The test results show that the common cathode directly the color decaying ( brightness, gamut, color temperature) of the common anode during the continuous temperature rise stage, and maintains color consistency at extreme temperatures.
By comparing the temperature rise, color decay, and power consumption test, the common-cathode cold screen has lower temperature, better color consistency and lower power consumption, which is the best solution for outdoor energy-saving display screen.
The loss of brightness:
As electronic components like leds, Drive ic work a long time under high temperature, the brightness will decrease year by year.
The decrease of temperature:
Our technology can significantly reduce the loss of heat energy(as you see the chart) and keep the temperature 2/3 of traditional LED display.
FAQ:
1. Can we make any size of led display?
YES, but we suggest you take large size because it is better for outdoor advertising
2, How to install led display?
We will provide detailed drawing of installation frame or do Teamviewer to help you install LED screens.
3 ,How to ship?
Normally, the display will be shipped by sea because it is much cheaper than by air.
4, Can I buy truck from you?
Yes, but we still suggest you buy at local . Firstly it can save you much more freight cost .
Secondly, the truck from China might be hard to meet your country's emission stardard.
5, Can I play different content on three sided display.
Yes, we will prepare you NOVA software by which you can set up three display windows and then upload different videos on them.
6, why do I need a video processor?
A video processor is a special component that scales and formats the video signal from a media player, satellite receiver, DVD player, computer,or video game console and converts it into a format that can be displayed on LED screen.
Better quality video processors include hardware and software that enhances image quality and also include multiple inputs so you can switch
among several different video sources.
7, Can I do live-streaming ?
Yes , we will prepare a video processor that can realize your thoughts
8, What do I need except a truck and LED display screens?
(1).
One set of
video processor , light sensor
.
(2). One set of diesel generator.
(3). One set of computer
(4). Four sets of speakers.
(5). One set of amplifier.
