Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OBDSTAR
-
Model Number:
-
P001
-
Warranty:
-
12 Months
-
MOQ:
-
1pcs
-
Color:
-
black
-
Quality:
-
High-Quality
-
Weight:
-
1kg
-
Keywords:
-
Protocol Car Diagnostic
-
Brand:
-
OBDSTAR
-
Applicable Models:
-
Cars
-
Product Name:
-
Key Programmer
Quick Details
-
Car Fitment:
-
Toyota (FAW)
-
Voltage:
-
220v
-
Power:
-
9w
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OBDSTAR
-
Model Number:
-
P001
-
Warranty:
-
12 Months
-
MOQ:
-
1pcs
-
Color:
-
black
-
Quality:
-
High-Quality
-
Weight:
-
1kg
-
Keywords:
-
Protocol Car Diagnostic
-
Brand:
-
OBDSTAR
-
Applicable Models:
-
Cars
-
Product Name:
-
Key Programmer

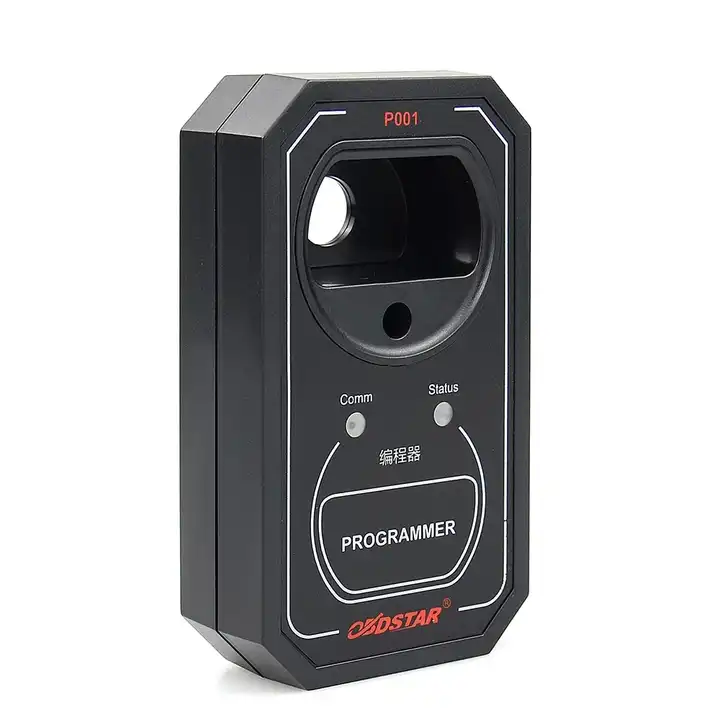

OBDSTAR P001 Programmer RFID Adapter & PCF79XX Renew Key & EEPROM 3 in 1 Work with OBDSTAR X300 DP Master Mini IMMO
Product Description
Product Description
It brings a brand new experience, which not only allows auto technician to reduce more cumbersome procedures, but also can be compatible with simulated smart keys to realize for Toyota all lost.
Notice:1. P001 programmer must work with X300DP/X300DP PLUS,can not work alone
2.Offer your X300DP S/N (serial number) to bind P001 programmer to your X300DP
P001 Programmer Support Vehicle List:
IMMO for VW AUDI SKODA SEAT 4 & 5 GEN (Same function as the RFID Adapter)
The 4th and 5th generation for the programming For VW/AUDI/SKODA/SEAT are added as follows:
1. CDC+24C32 Types
2. NEC+24C32 Types
3. 2013 Johnson Types;
4. Motorola 9S12XHZ512 Types;
5. NEC+24C64 Color Screen- Type 1
6. NEC+24C64 Color Screen- Type 2
7. NEC+24C64 White Screen Type
8. NEC+24C64(VDO -12)Type
9. NEC+95320 Type
10. NEC+35XX Type
11. Magotan/ CC Type
12. Q7/A6L(C6)9S12DT(G)128 Type
13. Q7/A6L(C6)9S12DT(G)256 Type
14. Lifan Marvell models are added, which includes Add/Clear Keys, Program/Delete ESCL functions.
15. Jiangling MU-X models are added as key programming and key clearing.
EEPROM Function Supported Models List (Same as the EEPROM Adapter)
Add 24C01/02/04/08/16/32 chip read/write/save/recovery data function;
Add 93C46/56/66/76/86 chip read/write/save/recovery data function;
Add 25010/020/040/080/040/080/040/080/256 chip read/write/save/recovery data function;
Add 95010/020/040/080/040/080/040/080/256 chip read/write/save/recovery data function;
Add for Audi security code read function;
Add Baic E150, E130 security code read function;
Add for for Buick security code read function;
Add for Cadillac SLS, SRX security code read function;
Add for Changan CM8/Yue xiang/Zhi xiang/benben security code read function;
Add for Changhe security code read function;
Add for Chery STEC immobiliser and DIAS immobiliser security code read function;
Add for Chevrolet Cruze, Trax security code read function;
Add for Chrysler security code read function;
Add for Citroen Elysee security code read function;
Add Dflz and security code read function;
Add Dfpv S3 security password read function;
Add for Geely Emgrand security code read function;
Add Great Wall security code read function;
Add for Hafei security code read function;
Add for Hnmazda security code read function;
Add for Hawtai security code read function;
Add for Huapu security code read function;
Add for MG3 security code read function;
Add for Jiangling security code read function;
Add for Liebao security code read function;
Add for Skoda security code read function;
Add for VW security code read function;
Add for Zznissan security code read function;
Add for Zotye to security code read function;
Note: Need to remove the EEPROM chip read password
P001 Programmer uses dual coils with stronger signal, supporting a wider range of RFID. It is also required in recent model upgrades, as follow:
for Ferrari 458/F12/F149;
for Maserati mechanical key;
for Fiat 500/Viaggio/Palio/Siena/Boyue/Pailang/Ottimo, etc.
for Iveco;
for Alfa Romeo;
for Volkswagen MQB;
for Toyota simulated cards;
for BMW;
for Porsche
P001 Programmer (Full Package):
P001 Programmer Unit + C001 circuit board + C002 circuit board + W001 data cable + W002 data cable + W003 data cable + Toyota simulated smart keys (free);
Remark: Customer purchasing P001 programmer can obtain a set of Toyota simulated smart keys for free.
P001 Programmer Accessories:
Accessory 1: C001 circuit board
C001 circuit board is compatible with old NO. 3 and 4 circuit boards, applying to EEPROM chip dismantling and reading, Tianjin FAW and VIZHI immobilizer coil initialization and other functions.
Accessory 2: C002 circuit board
The newly developed C002 circuit board is connected by W001, W002 or W003 without welding the chip.
Accessory 3: W001 data cable
W001 data cable can read or write data by linking the chip with a bonding wire
Accessory 4: W002 data cable
W002 data cable can read or write data by clamping the chip (SOP 8-pin) directly without welding EEPROM.
Accessory 5: W003 data cable
W003 data cable can read or write data by clamping positive pole and negative pole with red and black clips and contacting the
data interface with yellow and blue probes.
Wiring Instruction:
To better understand the connection among P001 programmer and its accessories, examples for W001 and W003 wiring instructions are
as below. (During the actual operation process, there is a diagram of wiring inside tablet)
Way 1. W001 Connecting
About for Toyota Simulated Smart Key
1. Why use a for Toyota simulated smart key?
For the for Toyota/Lexus 2007-2016 models, if all smart keys are lost, the instrument table must be removed and the ECU must be
replaced. The cost is very high!
This for Toyota simulated smart key can generate a for Toyota key with P001 programmer in the case of all keys lost, so the
ignition switch can be turned on, and then a new smart key can be added and programmed with P001 Programmer.
2. What are the advantages of the for Toyota simulated smart key?
Save costs
Reusable.
3. How many types for Toyota simulated smart keys in total?
There are 4 types at present, and the 5th one is in development.
4. Which type of smart keys can be simulated?
Simulated key 1 applies to the vehicle with 94/D4 type of smart key;
Simulated key 2 applies to the vehicle with 98 type of smart key;
Simulated key 3 applies to the vehicle with 88/A8 type of smart key;
Simulated key 4 applies to the vehicle with A9 type of smart key;
