Quick Details
-
Model Number:
-
LW26-63
-
Max. Current:
-
63A
-
Mechanical Life:
-
100000 times
-
Available current:
-
10A,20A,25A,32A,63A,125A,160A
-
Working temperature:
-
-25~+40C
-
Protect degree:
-
IP65
-
Standard:
-
GB14048.3, GB14048.5, IEC60947-3, IEC60947-5-1
-
Available type:
-
Finger protection, Single lock, with indicating light etc.
-
Change over angle:
-
30, 45, 60, 90
Quick Details
-
Max. Voltage:
-
AC440V; DC240V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Saipwell
-
Model Number:
-
LW26-63
-
Max. Current:
-
63A
-
Mechanical Life:
-
100000 times
-
Available current:
-
10A,20A,25A,32A,63A,125A,160A
-
Working temperature:
-
-25~+40C
-
Protect degree:
-
IP65
-
Standard:
-
GB14048.3, GB14048.5, IEC60947-3, IEC60947-5-1
-
Available type:
-
Finger protection, Single lock, with indicating light etc.
-
Change over angle:
-
30, 45, 60, 90

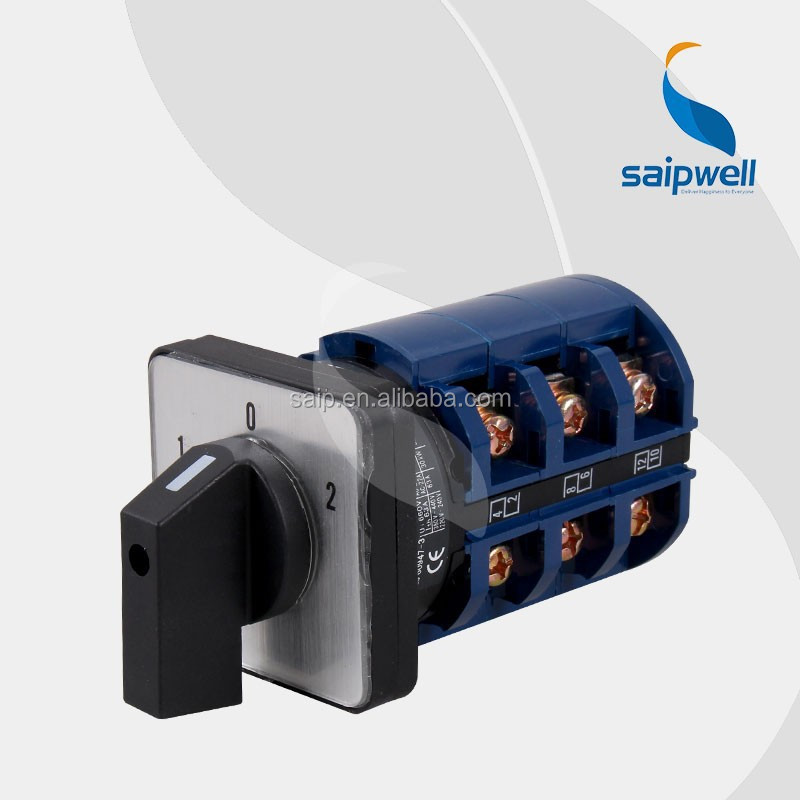

Quick moving 63A 3P Rotary Cam Switch (LW26-63)
|
Product Name
|
Cam switch |
|
Model No.
|
LW26-63 | |
|
Rated Current/Voltage
|
160A/440V | |
|
Position
|
3Position |
Technical Drawing
Rotary Cam Switch
Size Selection
