Quick Details
-
Model Number:
-
TC 630
-
automatic cable wire winding machine:
-
Shanghai high quality automatic cable wire winding machine for bobbin
-
Application:
-
winding wire
-
Production Capacity:
-
300M/min
-
Certification:
-
CE Certificate
-
Voltage:
-
220/380V/240V
-
Wire material:
-
cable wire
-
Warranty:
-
1 Year
-
Dimension:
-
1.5*1.2*1.2
-
Net Weight:
-
258kg
-
After-sales service:
-
Year Round Technical Service
Quick Details
-
Usage:
-
WINDING
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Qipang
-
Model Number:
-
TC 630
-
automatic cable wire winding machine:
-
Shanghai high quality automatic cable wire winding machine for bobbin
-
Application:
-
winding wire
-
Production Capacity:
-
300M/min
-
Certification:
-
CE Certificate
-
Voltage:
-
220/380V/240V
-
Wire material:
-
cable wire
-
Warranty:
-
1 Year
-
Dimension:
-
1.5*1.2*1.2
-
Net Weight:
-
258kg
-
After-sales service:
-
Year Round Technical Service
|
Model
|
TC630
|
TC800
|
TC1000
|
|
Take-up wire diameter
|
φ2-φ5mm
|
φ2-φ6mm
|
|
|
Take-up spool
|
≤630mm
|
≤800mm
|
≤1000mm
|
|
Take-up speed
|
400m/min
|
400m/min
|
300m/min
|
|
Take-up strength
|
25N/M
|
25N/M
|
36N/M
|
|
Take-up motor
|
4KW
|
4KW
|
5.5KW
|
|
Lifting of the spool
|
Electric / hydraulic
|
Electric / hydraulic
|
Electric / hydraulic
|
|
Cable clamping
|
Pneumatic / hand crank
|
Pneumatic / hand crank
|
Pneumatic / hand crank
|
Specifications:

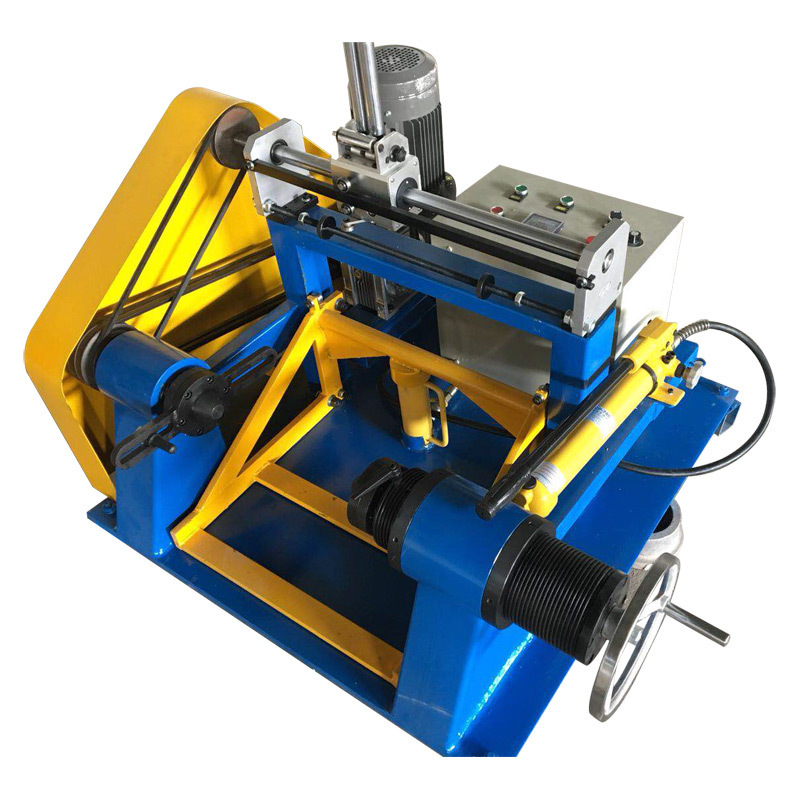

Shanghai high quality automatic cable wire winding machine for 630mm bobbin 800mm spool 1000mm drum
1. Automatic take-up machine, wire rope, wire winder, winding machine, automatic reversing, high-speed operation, adjustable frequency conversion speed
Receiving machine model: TC-630 type Shanghai high quality automatic cable wire winding machine for bobbin .
Total body size: length 850mm*650mm*700mm,
Components are: power 380V/220V
Motor: 550 watts, inverter: 750 watts
Frame 1, the standard size of the PC400: 250mm, 56mm., 400mm.
The width of the reel can be customized according to customer requirements.
wire material range: 0.1 - 50mm can be.
Adapted to bobbin flange OD diameter: PN400-PN630, coil width 280-475mm, inner hole diameter Φ56mm Applicable line speed: 200m/min
Top shaft mode: no shaft top cone Clamp the bobbin: electric screw lifts, the upper and lower limits are safe and reliable Cable:
GP30 rolling ring drives, adjustable pitch. Wire winding : 10N.M torque motor winding wire
2. Meter counter Form: one-way stop;
The surface of the meter wheel and the pressure roller adopts a rubber wheel to ensure that
the wire is not damaged.
