Quick Details
-
Brand Name:
-
DEPUMP
-
Model Number:
-
250WQ500-5-15
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
As customer request
-
Cable Length:
-
As customer request
-
Outlet Size:
-
As customer request
-
Power:
-
As customer request, Electric
-
Theory:
-
Centrifugal Pump
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Cr27, stainless steel, cast iron
-
Color:
-
As customer's request
-
Max. Solid Size:
-
10-66mm
-
Discharge:
-
80-400mm
-
Application1:
-
Dredging
-
Application2:
-
Water Treatment
Quick Details
-
Pressure:
-
As customer request, High Pressure
-
Voltage:
-
As customer request
-
Warranty:
-
1 year
-
Brand Name:
-
DEPUMP
-
Model Number:
-
250WQ500-5-15
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
As customer request
-
Cable Length:
-
As customer request
-
Outlet Size:
-
As customer request
-
Power:
-
As customer request, Electric
-
Theory:
-
Centrifugal Pump
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Cr27, stainless steel, cast iron
-
Color:
-
As customer's request
-
Max. Solid Size:
-
10-66mm
-
Discharge:
-
80-400mm
-
Application1:
-
Dredging
-
Application2:
-
Water Treatment
Products Description

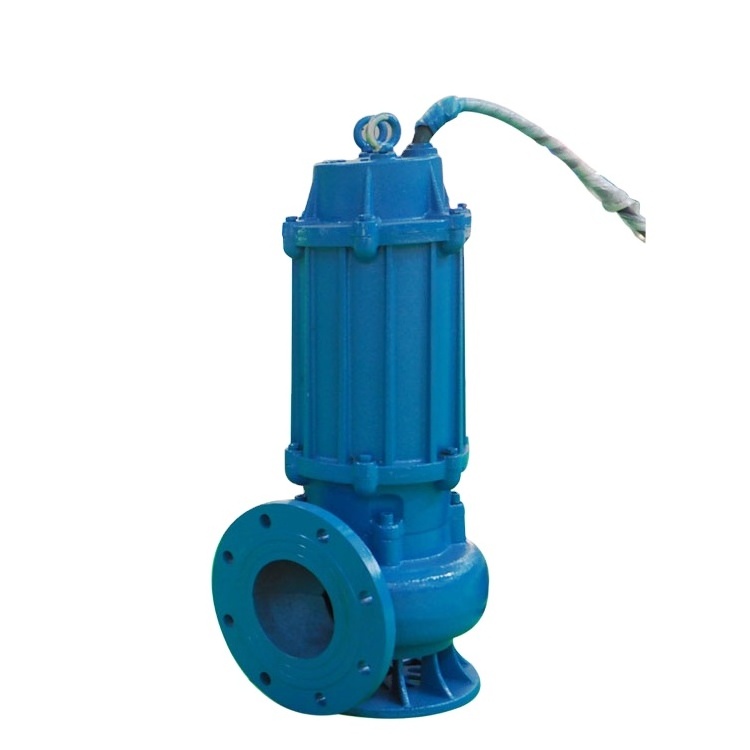

WQ S
ubmersible Sewage Pump
The
Depump®
WQ Series submersible sewage pump is mainly used for municipal works, industrialbuildings,hotels,hospitals,civil air defense,mines etc. Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics.
• Water Treatment
• Building Services
• Sumps and Basements
• Mining
•
Civil Construction
• Industry • Municipal • Processing
High strength cast iron pump construction.
Impeller options are available to suit a range of applications
and pumped products including single, double or triple vane.
Details Images
Features
1. High stength cast iron pump construction;
2. Impeller options are available to suit a range of applications and pumped products including single,double or triple vane;
3. 420 stainless steel shaft;
4. Built in cooling system allows operation when motor is submerged or above water level.
1. High stength cast iron pump construction;
2. Impeller options are available to suit a range of applications and pumped products including single,double or triple vane;
3. 420 stainless steel shaft;
4. Built in cooling system allows operation when motor is submerged or above water level.
Product Paramenters
|
Type
|
Outlet Dia. (mm)
|
Capacity (m3/h)
|
Head (m)
|
Power (kw)
|
Efficiency (%)
|
|
50WQ15-8-0.75
|
50
|
15
|
12
|
0.75
|
52
|
|
65WQ30-10-2.2
|
65
|
30
|
10
|
2.2
|
62
|
|
80WQ50-8-2.2
|
80
|
50
|
8
|
2.2
|
60
|
|
100WQ80-7-3
|
100
|
80
|
7
|
3
|
64
|
|
150WQ150-10-7.5
|
150
|
150
|
10
|
7.5
|
72
|
|
200WQ300-10-15
|
200
|
300
|
10
|
15
|
74
|
|
250WQ500-10-30
|
250
|
500
|
10
|
30
|
72
|
|
300WQ700-19-55
|
300
|
700
|
19
|
55
|
75
|
|
350WQ1100-25-110
|
350
|
1100
|
25
|
110
|
76
|
|
400WQ2000-23-185
|
400
|
2000
|
23
|
185
|
80
|
|
500WQ3000-15-132
|
500
|
3000
|
15
|
185
|
72
|
