Quick Details
-
Brand Name:
-
Hobbywing
-
Model Number:
-
HB132
-
Size:
-
49*39.5*34.7mm
-
Material:
-
Metal
-
Cont./Peak Current:
-
120A/830A
-
Motor Type:
-
Sensored/Sensorless Brushless Motor
-
Applications:
-
1/10th Touring Car, Buggy, Truggy and Monster Truck
-
LiPo/NiMH Cells:
-
2-4S LiPo/6-12S NiMH
-
BEC Output:
-
6V/7.4V Switchable, Continuous Current of 4A (Switch-mode)
-
Cooling Fan:
-
Powered by the stable BEC voltage of 6V/7.4V
-
Size/Weight:
-
49 x 39.5 x 34.7mm/105g
-
Programming Port:
-
FAN/PRG Port
Quick Details
-
Use:
-
Vehicles & Remote Control Toys
-
Type:
-
ESC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hobbywing
-
Model Number:
-
HB132
-
Size:
-
49*39.5*34.7mm
-
Material:
-
Metal
-
Cont./Peak Current:
-
120A/830A
-
Motor Type:
-
Sensored/Sensorless Brushless Motor
-
Applications:
-
1/10th Touring Car, Buggy, Truggy and Monster Truck
-
LiPo/NiMH Cells:
-
2-4S LiPo/6-12S NiMH
-
BEC Output:
-
6V/7.4V Switchable, Continuous Current of 4A (Switch-mode)
-
Cooling Fan:
-
Powered by the stable BEC voltage of 6V/7.4V
-
Size/Weight:
-
49 x 39.5 x 34.7mm/105g
-
Programming Port:
-
FAN/PRG Port
Specification

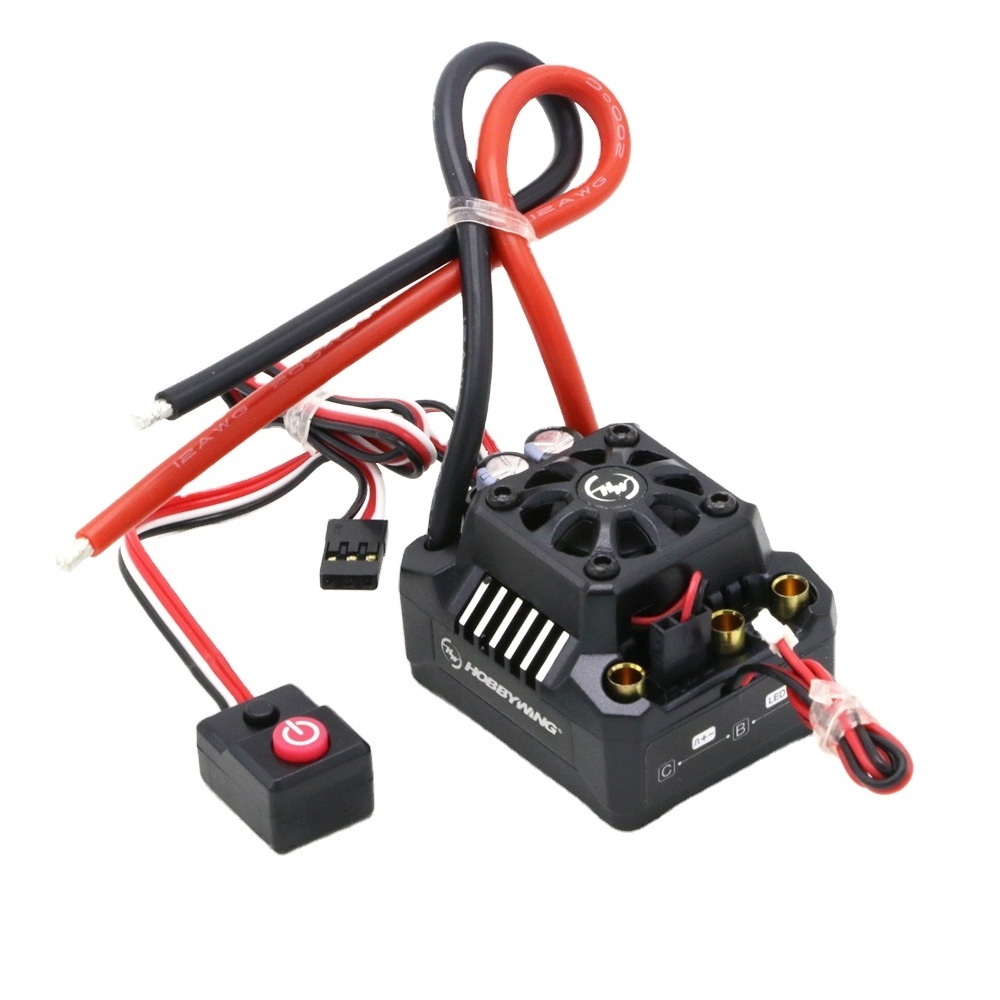

Hobbywing EZRUN Max10 120A ESC Waterproof Brushless ESC 1/10 SCT RC Hobby Truck MAX10-SCT 120A connector
|
item
|
value
|
|
Gender
|
Unisex
|
|
Age Range
|
14 Years & up
|
|
Use
|
Vehicles & Remote Control Toys
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Hobbywing
|
|
Model Number
|
HB132
|
|
Size
|
49*39.5*34.7mm
|
|
Material
|
Metal
|
|
Cont./Peak Current
|
120A/830A
|
|
Motor Type
|
Sensored/Sensorless Brushless Motor
|
|
Applications
|
1/10th Touring Car, Buggy, Truggy and Monster Truck
|
|
LiPo/NiMH Cells
|
2-4S LiPo/6-12S NiMH
|
|
BEC Output
|
6V/7.4V Switchable, Continuous Current of 4A (Switch-mode)
|
|
Cooling Fan
|
Powered by the stable BEC voltage of 6V/7.4V
|
|
Size/Weight
|
49 x 39.5 x 34.7mm/105g
|
|
Programming Port
|
FAN/PRG Port
|
Motor Limit:
Brushless Motor Limit with 2S LiPo / 6 Cell NiMH: KV less than or equal to 6000 (3656 size motor)
Brushless Motor Limit with 3S LiPo / 9 Cell NiMH: KV less than or equal to 4000 (3656 size motor)
Brushless Motor Limit with 45 LiPo / 12 Cell NiMH: KV less than or equal to 3000 (3656 size motor)
Connectors:
Input End: No Connectors
Output End: 4.0mm Female Gold Connectors (pre-soldered onto the PCB of the ESC)
Brushless Motor Limit with 2S LiPo / 6 Cell NiMH: KV less than or equal to 6000 (3656 size motor)
Brushless Motor Limit with 3S LiPo / 9 Cell NiMH: KV less than or equal to 4000 (3656 size motor)
Brushless Motor Limit with 45 LiPo / 12 Cell NiMH: KV less than or equal to 3000 (3656 size motor)
Connectors:
Input End: No Connectors
Output End: 4.0mm Female Gold Connectors (pre-soldered onto the PCB of the ESC)
