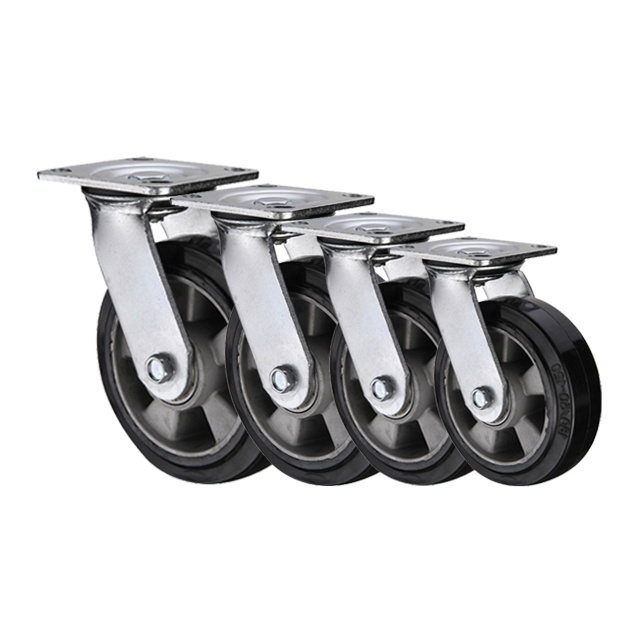

Swivel caster 6 / 8 inch sofa castor 150 / 200 mm Aluminium core elastic rubber wheel heavy duty trolley caster wheel

Swivel caster 6 / 8 inch sofa castor 150 / 200 mm Aluminium core elastic rubber wheel heavy duty trolley caster wheel

FOB Reference Price: Get Latest Price

≥200 Pieces

US $2

≥3000 Pieces

US $1.7

≥5000 Pieces

US $1.3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 year

Place of Origin:: Guangdong, China

Wheel size:: 100 mm / 125 mm / 150 mm / 200 mm / 250 mm

Wheel material:: Aluminium Core Rubber, Resistant to most chemicals, solvents and water

Bearing Type:: Double ball bearing

Load capacity:: 250 kg to 600 kg(550 lb to 1320 lb)

Top plate size:: 115*100mm

Hole to hole:: 72*85mm

Ball raceway:: Double ballrace

Zinc plating:: RoHS standard, 24 hours salt spray test passed

Application:: hand cart, mobile equipment

Quick Details

Material:: Steel, Aluminium, Elastic rubber

Type:: Plate Casters

Model Number:: 29XXXBABL caster wheels for trolley

Warranty:: 1 year

Place of Origin:: Guangdong, China

Wheel size:: 100 mm / 125 mm / 150 mm / 200 mm / 250 mm

Wheel material:: Aluminium Core Rubber, Resistant to most chemicals, solvents and water

Bearing Type:: Double ball bearing

Load capacity:: 250 kg to 600 kg(550 lb to 1320 lb)

Top plate size:: 115*100mm

Hole to hole:: 72*85mm

Ball raceway:: Double ballrace

Zinc plating:: RoHS standard, 24 hours salt spray test passed

Application:: hand cart, mobile equipment

Swivel caster 6 / 8 inch sofa castor 150 / 200 mm Aluminium core elastic rubber wheel heavy duty trolley caster wheel

Product Description

SPECIFICATIONS FOR PRODUCT

Housing:

Solid steel welded construction, zinc plated, double ball-race swivel head, dust-proof seal，24 hours salt spray test passed

Wheel:

Materials: Aluminium Core Elastic Rubber , non-marking , durable, good shock absorbent
Hardness: 70±3 Shore A
Bearing type: Double ball bearing
Temperature range: -5℃ to 70℃

Type	29 Series (Size: 125mm/150mm/200mm/250mm)
Artical NO.	29125BABL	29150BABL	29200BABL	29250BABL
Wheel Diameter	125mm(5 inch)	150mm(6 inch)	200mm(8 inch)	250mm(10 inch)
Wheel Width	50mm	50mm	50mm	50mm
Mounting height	164mm	190mm	240mm	280mm
Bearing Type	Double ball bearing	Double ball bearing	Double ball bearing	Double ball bearing
Offset	39mm	45mm	56mm	63mm
Top Plate Size	115*100mm	115*100mm	115*100mm	115*100mm
Hole To Hole	72*85mm	72*85mm	72*85mm	72*85mm
Bolt Hole Size	19*10mm	19*10mm	19*10mm	19*10mm
Wheel Material	Aluminium Core Elastic Rubber	Aluminium Core Elastic Rubber	Aluminium Core Elastic Rubber	Aluminium Core Elastic Rubber
Plate Thickness	6.0mm	6.0mm	6.0mm	6.0mm
Housing Thickness	6.0mm	6.0mm	6.0mm	6.0mm
Loading Capacity	250KG	300KG	450KG	600KG
