Quick Details
-
Control System Brand:
-
Ruida
-
Cutting Area:
-
1600*3000mm
-
Cutting Thickness:
-
1~30mm
-
Control Software:
-
RD WORKS
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lansen
-
Weight (KG):
-
480 KG
-
Core Components:
-
Laser tube
-
Products handled:
-
fabric
-
Working area:
-
1600mm*3000mm
-
Laser power:
-
100W (130W optional)
-
Laser-type:
-
CO2 sealed laser tube, water-cooled
-
Engraving Speed:
-
0-70000mm/min
-
Operating temperature:
-
0 - 45°C
-
Communication interface:
-
USB
-
Laser output control:
-
1-100% software setting
-
Applicable meterial:
-
Nonmetal
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-60000mm/min, 0-40000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Ruida
-
Cutting Area:
-
1600*3000mm
-
Cutting Thickness:
-
1~30mm
-
Control Software:
-
RD WORKS
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lansen
-
Weight (KG):
-
480 KG
-
Core Components:
-
Laser tube
-
Products handled:
-
fabric
-
Working area:
-
1600mm*3000mm
-
Laser power:
-
100W (130W optional)
-
Laser-type:
-
CO2 sealed laser tube, water-cooled
-
Engraving Speed:
-
0-70000mm/min
-
Operating temperature:
-
0 - 45°C
-
Communication interface:
-
USB
-
Laser output control:
-
1-100% software setting
-
Applicable meterial:
-
Nonmetal

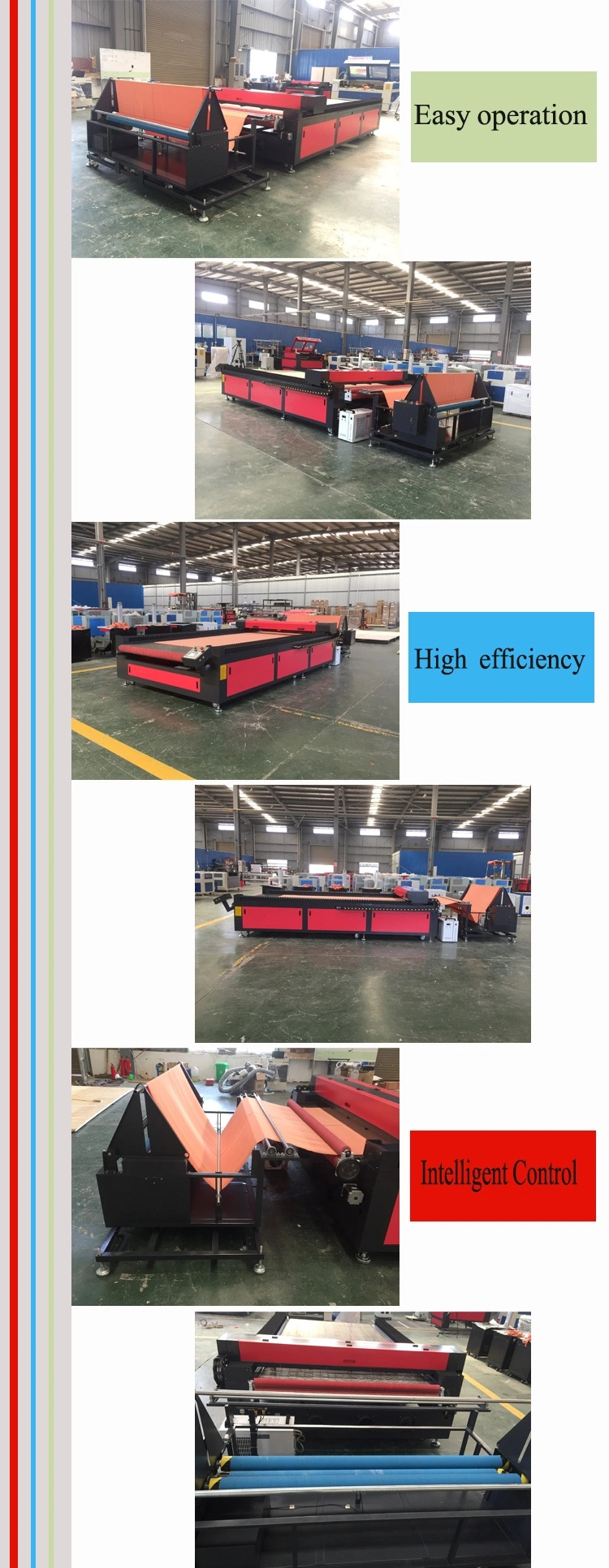

Product Overview

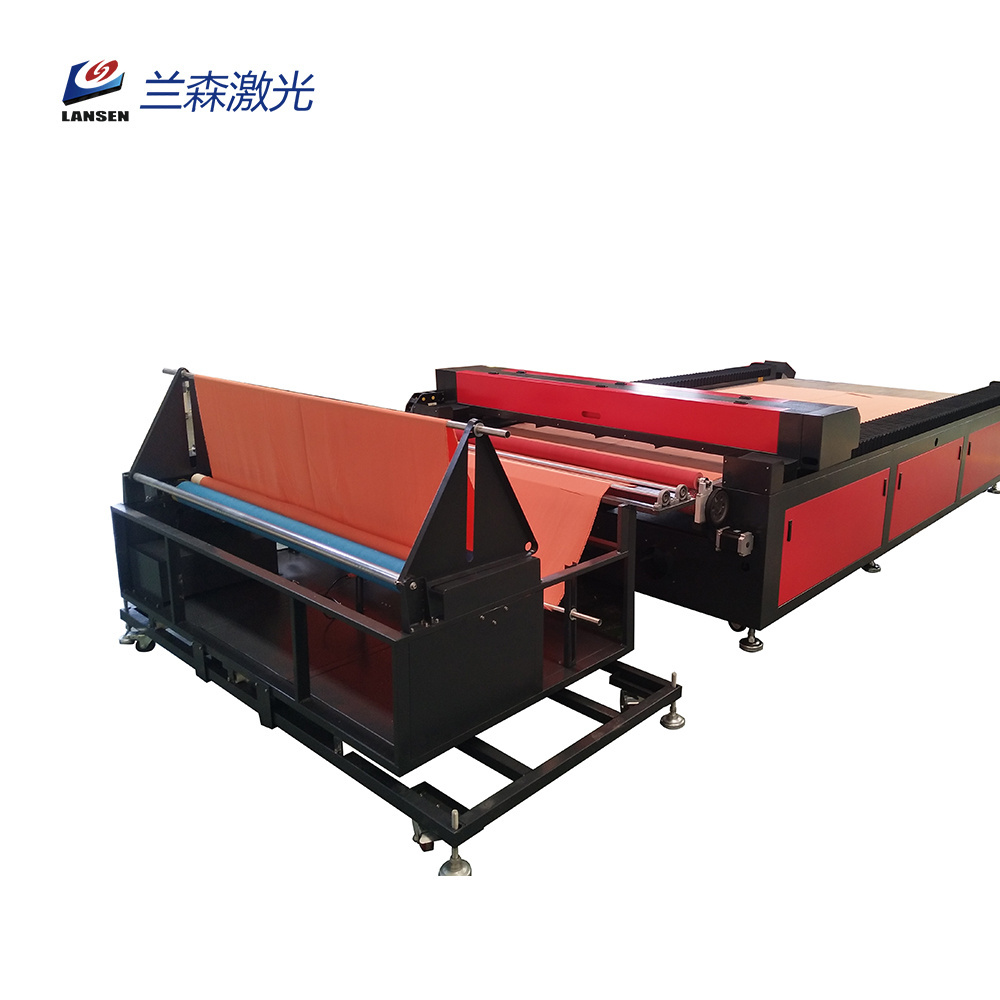

Large Format CNC 1630 Auto Feeding Laser Cutting Machine For Fabric Textile Cloth Cutter Engraver
1) No burr/fraying with laser cutting:
Laser cutting is done by high temperature process. It can make cut edge to close up automatically. Hence, no need to recut the
patterns after one-time cutting.
2) No distortion to the processed fabric:
In the process of cutting, laser dose not touch the processed fabric, but laser beam works on the fabric.
3) High precision:
Diameter of the laser beam can be focalized into 0.1 mm. Cutting is done exactly according to uploaded graphics through computer
control.
4) High efficiency and easy operation:
Just upload the graphics into the cutting machine and laser will cut fabric into shapes as designed.
Product Paramenters
|
Model
|
LP-F1630AF
|
|
Working area
|
1600mm*3000mm
|
|
Laser power
|
80W (100W optional)
|
|
Laser type
|
CO2 sealed laser tube, water-cooled, 10.6um
|
|
Cooling type
|
Water cooling
|
|
Engraving speed
|
0-70000mm/min
|
|
Cutting speed
|
0-40000mm/min
|
|
Communication interface
|
USB
|
|
Laser output control
|
1-100% software setting
|
|
Smallest Character Engraving
|
English 1.0mm*1.0mm
|
|
Locating Precision
|
≤±0.01mm
|
|
Highest Scanning precision
|
4000DPI
|
|
Operating temperature
|
0 - 45°C
|
|
Power supply
|
220V/50HZ , 110V/60HZ
|
|
Graphic format supported
|
BMP, PLT, DST, DXF, AI
|
|
Software supported
|
ArtCut, PhotoShop (Conversion output)CorelDraw, AutoCAD, Lasercut (Direct output)
|
|
Work table
|
Honeycomb Sucking table or Knife slat working table
|
|
Driving system
|
3 Phase stepper motor
|

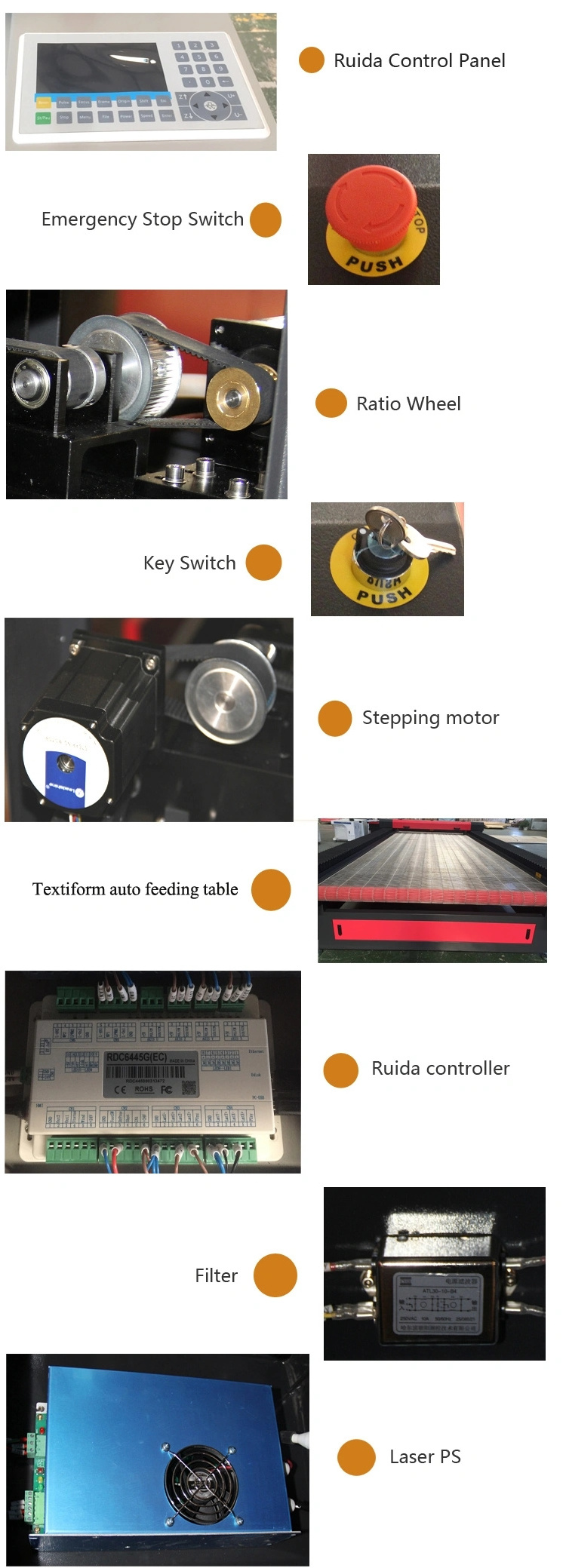

Product Details
Stepper Motor
CO2 Laser Tube
Laser Head
Control Panel
Core Control System
Worktable
Application&Samples
Applicable Industries：
Model industry (construction models, aviation and navigation models and wooden toys), advertising, decoration, arts and crafts, electronics, and electric appliances, etc.
Applicable Materials：
Non-metal material such as acryl, wood planks (light planks), bamboo ware, double color sheets, paper, leather, shells, coconut shells, ox horns, resin animal grease, ABS boards, lamp shade, etc.
Packing&Delivery
Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.
Supply Ability: 100 sets / Month
Port: Qingdao
Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.
Packaging Detail: International standard plywood export box
Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS
About Us
Jinan Lansen Laser Equipment Co., Ltd
Jinan Lansen Laser Equipment Co., Ltd was established in 2010. We are located in Jinan city, Shandong, P.R. China, where is the CNC and Laser equipment production base. We commit ourselves to the development of CNC and Laser technologies always.
We now produce more than 40 models CNC and Laser equipment, includes Laser marking machine, Laser Engraving machine, Laser Cutting machine, CNC Router, CNC Plasma Cutting machine and so on.
Our Laser Marking machine includes Co2 Laser Marking machine which used for nonmetal material mark and cut, Fiber Laser Marking machine which used for metal and some nonmetal mark and cut; Our Laser Engraving Cutting machine are also widely used in various fields, like art craft engraving cutting, stone engraving, cloth, leather and textile cutting, metal cutting, hobby and so on.
Our CNC Router is a more applied equipment for Industry. They are mainly used in woodworking and advertising lines. Then our CNC Plasma Cutting machine is mainly used in metal cutting work.
Our machines are welcomed worldwide and have exported to USA, Canada, Brazil, Panama, Ecuador, Peru, Chile, UK, Russia, Finland, Poland, France, Germany, Switzerland, Danmark, Italy, France, Spain, Estonia, Czech, Slovakia, Slovenia, Greece, Turkey, Australia, India, Tailand, Barlin, Hungry, Kazakhstan, Malaysia, Sri Lanka, Indonesia, Egypt and so on countries.
Jinan Lansen Laser Equipment Co., Ltd is with our own production line and export operations right, products provided by us directly, with shorter delivery time, longer warranty time, and OEM service is accepted; Without intermediate business, price better; various models and completely functions to meet various clients' requirement; Honest enterprise, can guarantee the quality, make the buyers more rest assured.
LANSEN Brand promise to supply HIGH quality products support you on expanding the market.
At the same time, we also provide OEM service.If you wish products with your own brand, if you need a more personalized type machine. The OEM service could provide you nice experience.
We wish we can establish long business cooperation relationship.
FAQ
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?
Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set
Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.
Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.
Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Video
