- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Northglass
-
Model Number:
-
LG1
-
Shape:
-
Curve, Flat
-
Color:
-
Clear, Ultra Clear, Grey, Blue, Brown, Light Green, Sky Blue,etc.
-
Certificate:
-
CE,BSI,SGCC,CCC,ISO9001, AS/NZS2208:1996, EN12150.
-
Edge:
-
Polished Grind
-
Packing:
-
Sea Worthy Strong Wooden Crates
-
Feature:
-
Safety,High Strength, Super Smooth
-
Material:
-
Qualified Float Glass
-
Sample:
-
Available
-
Size:
-
Custmozied
Quick Details
-
Application:
-
Staircase, Office Building
-
Usage:
-
Industrial
-
Thickness:
-
6.38mm,8.38mm,10.38mm,and other, 6.38mm,8.38mm,10.38mm,6.76mm,8.76mm,10.76mm,7.14mm,9.14mm,11.14mm,etc
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Northglass
-
Model Number:
-
LG1
-
Shape:
-
Curve, Flat
-
Color:
-
Clear, Ultra Clear, Grey, Blue, Brown, Light Green, Sky Blue,etc.
-
Certificate:
-
CE,BSI,SGCC,CCC,ISO9001, AS/NZS2208:1996, EN12150.
-
Edge:
-
Polished Grind
-
Packing:
-
Sea Worthy Strong Wooden Crates
-
Feature:
-
Safety,High Strength, Super Smooth
-
Material:
-
Qualified Float Glass
-
Sample:
-
Available
-
Size:
-
Custmozied
Products Description

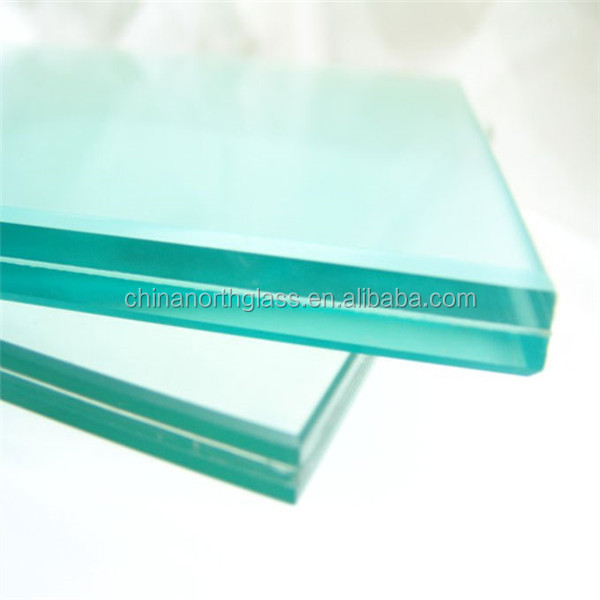

Laminated glass is consists of two or more plies of glass which are bonded together with interlayers to form a permanent bond by heat and pressure . The interlayers work to support and hold the glass to create a strong, uniformed layer even when broken. Typical interlayers are PVB, Sentry Glass Plus and so on. The monolithic glass comes in different thicknesses, from 3mm to 22mm. It could also be coated glass, like low e coating glass, reflective coating glass, Nano easy cleaning glass and so on to reach different colors, performances of laminated glass. In order to reach the best sound isolation, energy saving glass effect, it could be further structuring into laminated insulating glass.
Laminated glass, because of its high safety and energy saving performances, is widely applying to window, walls, furniture, balustrades, etc. One of the typical application is hurricane resistance glass for instance.
|
Glass Type
|
Laminated Glass
|
|
Single Glass Thickness
|
3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm, 22mm, 25mm, etc
|
|
Double Glass Thickness
|
6.38mm,8.38mm,10.38mm,12.38mm,16.38mm,
6.76mm, 8.76mm,10.76mm,12.76mm,16.76mm,20.76mm,24.76mm. 7.14mm,9.14mm,11.14mm,13.14mm,17.14mm,21.14mm,25.14mm,30.14,38.14mm 7.52mm,9.52mm,11.52mm,13.52mm,17.52mm,21.52mm,25.52mm,30.52,38.52mm. |
|
Film Thickness
|
0.38mm,0.76mm,1.14mm,1.52mm,2.28mm,3.04mm.
|
|
Glass Color Option
|
Clear, Low Iron, Super White, Super Clear, Extra White, Starphire, Optiwhite, Euro Grey, Dark Grey, Crystal Grey, Brown,
Bronze,Ocean Blue, Ford Blue, Dark Blue,etc. |
|
Interlayer Color Option
|
Clear, Translucent White, Colored Blue, Dark Grey, Light Green, Bronze, etc.
|
|
Size
|
Custom Sizes, Max: 18000mm L*3660mm H
|
|
Multi Glass
|
2 layers laminated glass, 3 layers laminated glass, etc
|
|
Edge Processing
|
Flat Edge, Seamed Edge, Polished Edge, Bevelled edge, Flat Polished Edge, Round Edge
|
|
Irregular Shape
|
Rectangular, Round, Oval, Trapezoid, Parallel, etc. All edges can be bright polished.
|
|
Hole & Notch Available
|
Countersunk holes, round holes, bell-mouth holes, simple notch, mickey ears cutouts, etc. The edge of hole and notch can be
polished by CNC |
|
Trade Terms
|
EXW, FOB, CIF, DDU,etc
|
|
Lead Time
|
Generally 2-4 weeks, depend on order quantity.
|
|
Terms of Payment
|
30% down payment before production, 70% balance TT at shipment; L/C
|
|
MOQ
|
To be discussed
|
