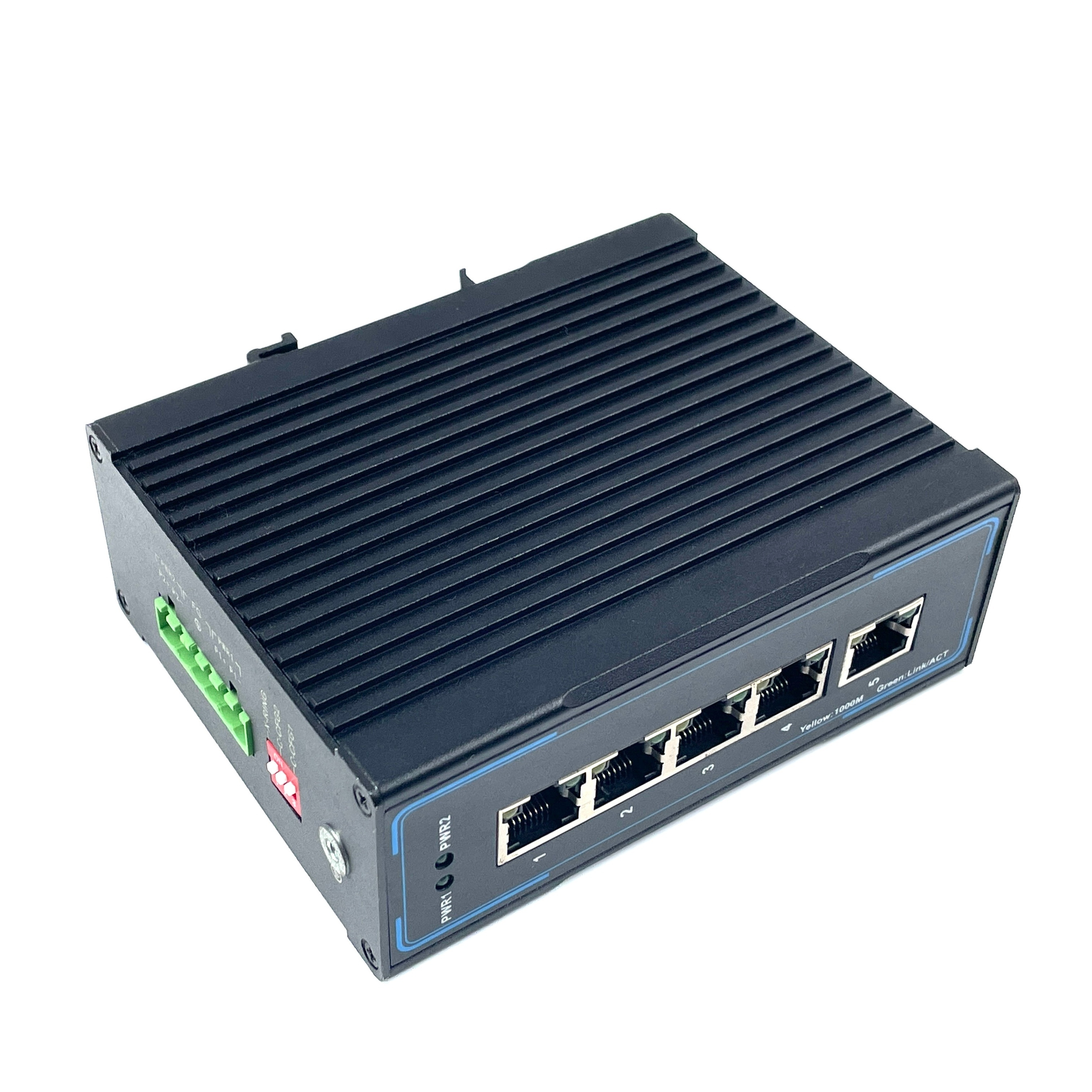

Unmanaged industrial switches 4* 10/100/1000Base-T Ethernet Ports support POE 1* 10/100/1000Base-T Ethernet Ports

NTS_IES1500/NTS_IES1800 Series Industrial Switches The NTS_IES1500/NTS_IES1800 series switches are the next-generation of green energy-saving unmanaged Ethernet access industrial switches introduced by NTS. They can be widely used in industrial scenes such as smart cities, smart transportation and smart

The NTS_IES1500/NTS_IES1800 series switches provide superior industrial quality with high/low temperature and lightning protection through fanless heat dissipation design, redundant circuit design, wide operating temperature and high protection level, and enhance the reliability and security of industrial networks, meets deployment requirements in a variety of harsh environments. The NTS_IES1500 consists of 100M access switches and 1G access switches. The 100M access switches include the NTS_IES1500-1FT1FS，NTS_IES1500-2FT1FS，NTS_IES1500-1FT2FS，NTS_IES1500-2FT2FS，NTS_IES1500-5FT，NTS_IES1500-4FT1GS，NTS_IES1500-8FS2GT and NTS_IES1500-8FS1GT1GS. The 1G access switches include the NTS_IES1500-1GT1GS，NTS_IES1500-2GT1GS，NTS_IES1500-1GT2GS，NTS_IES1500-2GT2GS，NTS_IES1500-5GT，NTS_IES1500-4GT1GS，NTS_IES1500-4GT2GS，NTS_IES1500-8GT，NTS_IES1500-8GT1GS，NTS_IES1500-8GT2GS， NTS_IES1500-3GT12GS and NTS_IES1500-2GT12GS. The NTS_IES1800 series include the NTS_IES1800-8GT2XS and NTS_IES1800-16GT2XS。 Most products support both POE and non-POE optional models.

Rich models for various scenes A wide range of models are available, from 100-gigabit access to gigabit access, from electric port access to optical port access, and from 1 to 16 ports, to find the right model to best match the user's application scenario. Provides models with multiple uplink ports. For some deployment scenarios, chain connectivity, simplified cabling, simple deployment, and cost savings are possible. Energy-saving design, green communication Fanless design, while reducing the power consumption of the device, the silent design allows you to avoid the noise. Power redundancy protects the network stability Wide voltage DC power supply, anti-reverse connection, power over-voltage protection and over-current protection. Dual power supply redundancy (when a power supply is abnormal, the device can work stably and without network disconnection), which greatly improves the high availability of the device, thus providing a more stable and reliable network. I ndustrial quality, adapt to extremely harsh environments The working environment temperature range is -40 ° C to 85 ° C, and the relative humidity range of the working environment is 5% to 95% without condensation. Can adapt to a variety of harsh application environments. Dustproof, lightning protection, surge protection, EFT, ESD, etc. all achieve a high protection level. Unblocked forwarding
