Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1970*1670*1750mm
-
Weight:
-
1000 KG
-
product name:
-
centrifugal
-
Application:
-
Gold, silver, mineral ore
-
Color:
-
Customers' Requirements
-
Keywords:
-
Centrifugal Gold Concentrtor
-
Usage:
-
Gold Extracting
-
Function:
-
Gold Wet Separator
-
Processed materials:
-
Copper Ore
-
Recovery rate:
-
99.99%
-
Other name:
-
Gold Refining Plant
-
Application area:
-
Gold Mining
Quick Details
-
Production Capacity:
-
10-30t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huahong
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1970*1670*1750mm
-
Weight:
-
1000 KG
-
product name:
-
centrifugal
-
Application:
-
Gold, silver, mineral ore
-
Color:
-
Customers' Requirements
-
Keywords:
-
Centrifugal Gold Concentrtor
-
Usage:
-
Gold Extracting
-
Function:
-
Gold Wet Separator
-
Processed materials:
-
Copper Ore
-
Recovery rate:
-
99.99%
-
Other name:
-
Gold Refining Plant
-
Application area:
-
Gold Mining
Product Description

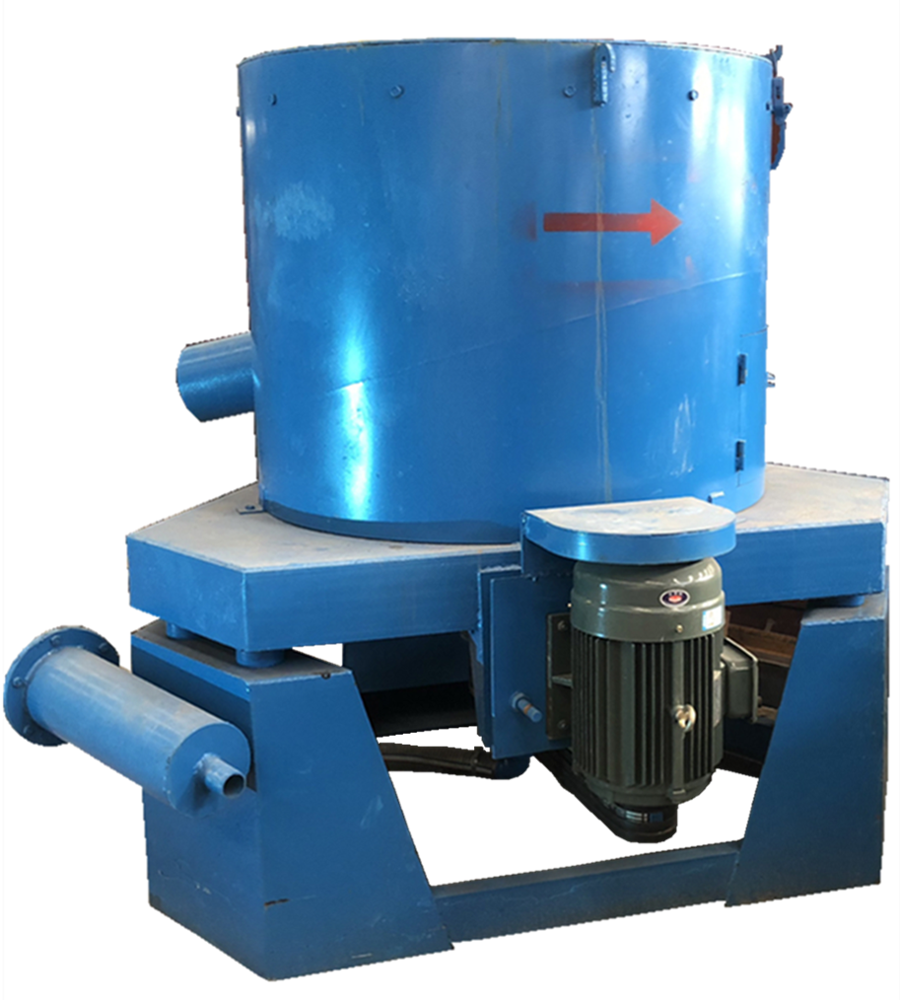

Centrifugal concentrator introduction
The Gold Concentrator is a high efficiency gold separation machine with updated technology. Taking advantage of the traditional gold centrifugal concentrator, the gold concentrator offers a solution to handle the hardened material, which will decrease the recovery rate during the separation process. The solution is to add a water jacket device inside the concentrator.
The application shows that gold grain size less than 5mm, the recovery rate up to 90%, while gold grain size less than 2.5mm, the rate can be 92%.
The application shows that gold grain size less than 5mm, the recovery rate up to 90%, while gold grain size less than 2.5mm, the rate can be 92%.
Centrifugal concentrator working principle
The main shaft is a hollow shaft, the pressurize backwash water come from the shaft, then goes into the separation unit, the water spray from holes to the gratings. During the process, the pressure of the water shall be 0.06-0.15MPa.
The slurry which is mixed with water and grinded ore and sand will be injected to the mainframe. With the heavy centrifugal force, the slurry will be move upward along the cone body, the light particles will be extracted from the upper part of cone, then discharge through
the tailing outlet. The heavy particles will be stay in the gratings of the inner layer.
Technical data of Centrifugal concentrator
Main Features
1)
High recovery rate:
Through our test, the recovery rate for placer gold can be 98% or more, for rock gold, the recovery rate could reach 97% when the feeding size is below 7mm.
2) Easy to install: Only a small leveled place required. It's a full line machine, before starting it, we only need to connect the water pump and power.
3) Easy to adjust: There are only 2 factors that will affect the recovery result, they are water pressure and feeding size. By giving proper water pressure and feeding size, you could get the best recovery effect.
4) No pollution: This machine only consumes water and electric power, and exhaust tailings and water. Low noise, no chemical agent involved.
5) Easy to operate: After finishing the water pressure and feeding size adjust, clients only need to recover the concentrates every 2-4 hours. (Depending on the grade of the mine )
2) Easy to install: Only a small leveled place required. It's a full line machine, before starting it, we only need to connect the water pump and power.
3) Easy to adjust: There are only 2 factors that will affect the recovery result, they are water pressure and feeding size. By giving proper water pressure and feeding size, you could get the best recovery effect.
4) No pollution: This machine only consumes water and electric power, and exhaust tailings and water. Low noise, no chemical agent involved.
5) Easy to operate: After finishing the water pressure and feeding size adjust, clients only need to recover the concentrates every 2-4 hours. (Depending on the grade of the mine )
|
Model
|
20
|
30
|
60
|
80
|
100
|
|
Capacity(t/h)
|
0.5-2
|
2-10
|
10-30
|
30-50
|
80-120
|
|
Feeding size
(mm)
|
0-3
|
0-4
|
0-6
|
0-6
|
0-6
|
|
Ore Concentration(%)
|
0-50
|
0-50
|
0-50
|
0-50
|
0-50
|
|
Recoil water(t/h)
|
1.5-2
|
4-6
|
10-15
|
17-25
|
40-60
|
|
Concentrate production(kg)
|
2-3
|
10-20
|
30-40
|
60-70
|
70-80
|
|
Power(kw)
|
1.1
|
1.5
|
4
|
11
|
18.5
|
|
Tapered speed
|
800
|
600
|
460
|
400
|
360
|
|
Water pressure
(Mpa)
|
0.04
|
0.1
|
0.16
|
0.18
|
0.2
|
|
Dimension(mm)
|
790*785*790
|
1180*1140*250
|
1970*1670*1750
|
2300*1800*2200
|
2400*2000*2300
|
|
Weight(kg)
|
200
|
400
|
1000
|
1500
|
2000
|
