Reinforced Concrete Culvert Pipe making machine concrete pipe machinery

Brief introduction of Reinforced Concrete Culvert Pipe making machine, concrete pipe machinery

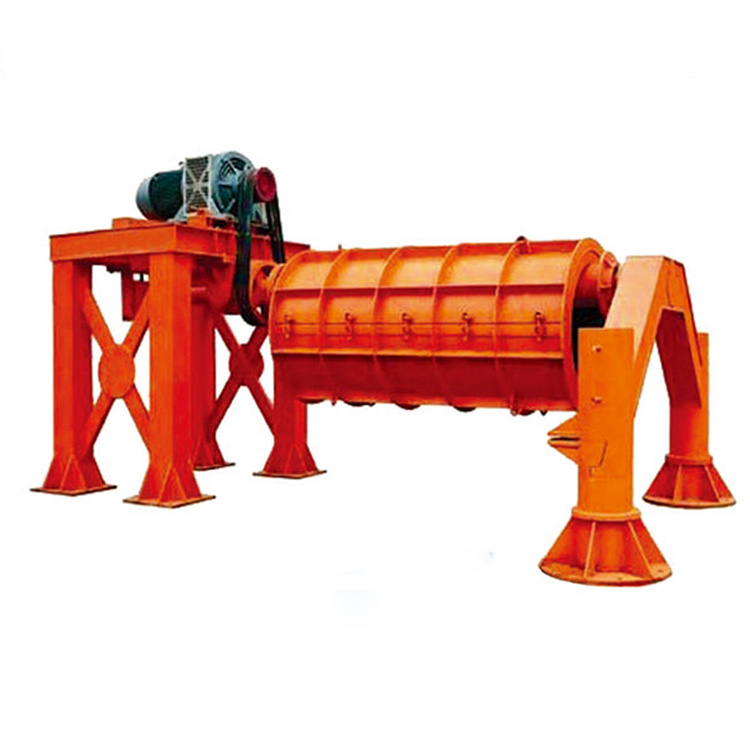

Suspension Roller type Concrete pipe machine is a kind of perfect machine and equipment to produce reinforced concrete pipes and Pre-stressed concrete pipe. This machine is capable to make pipes with diameter from 300-2000mm and with length from2-4meters. We can design many kinds of the pipe joint, including flush joint, socket& spigot joint  And all the concrete pipes are widely used in administrative drainage, agricultural field irrigation, road culvert and deep water well.

Working Principle
This machine uses the Roller to support the pipe mould, and produce the roller force to concrete in the mould. When the roller rotate at a high speed, the concrete in the mould will spread in the inner wall of the pipe mould and form a cement pipe with the centrifugal force, and when the mould with the inner concrete pass on the roller, the concrete between the mould and the roller will be compacted solid to form a pipe.
Character of Suspension Roller type Concrete Pipe Machine
(1) Short production Cycle: because of the good effect of the roller to compact the concrete, every pipe just need 3-5 minutes with high speed roller rotation.
(2) This Pipe machine uses the dry cast material, there will no waste cement mud, then it won’t pollute the environment.
(3) During the production, the noise is low, it is about 80-90 DB
(4) The Concrete Pipes are with high pressure load and with high production efficiency.

customer site

The pipes
