Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUCOO
-
Model Number:
-
YK-3000L
-
Output Frequency:
-
50Hz or 60Hz±0.1%
-
Size:
-
400*242*88mm
-
Weight:
-
8.5kg
-
Product Name:
-
3kw pure sine wave inverter
-
Display:
-
LCD
-
DC Input Voltage Range:
-
10-15Vdc/20-30Vdc/40-60Vdc/
-
Waveform:
-
Pure Sine Wave Inverter
-
Output Power:
-
600W/1KW/1.5KW/2KW/3KW/4KW/5KW
-
Peak Power:
-
1.2KW/2KW/3KW/4KW/6KW/8KW/10KW
-
Conversion Efficiency:
-
≥90%
-
Cooling Method:
-
Intelligent temperature controlled air cooling
-
Material:
-
Aluminum
-
Output Socket:
-
According request
-
Certificate:
-
CE EMC
Quick Details
-
Output Current:
-
13.6A
-
Network:
-
R232
-
Customized support:
-
Communicable
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUCOO
-
Model Number:
-
YK-3000L
-
Output Frequency:
-
50Hz or 60Hz±0.1%
-
Size:
-
400*242*88mm
-
Weight:
-
8.5kg
-
Product Name:
-
3kw pure sine wave inverter
-
Display:
-
LCD
-
DC Input Voltage Range:
-
10-15Vdc/20-30Vdc/40-60Vdc/
-
Waveform:
-
Pure Sine Wave Inverter
-
Output Power:
-
600W/1KW/1.5KW/2KW/3KW/4KW/5KW
-
Peak Power:
-
1.2KW/2KW/3KW/4KW/6KW/8KW/10KW
-
Conversion Efficiency:
-
≥90%
-
Cooling Method:
-
Intelligent temperature controlled air cooling
-
Material:
-
Aluminum
-
Output Socket:
-
According request
-
Certificate:
-
CE EMC

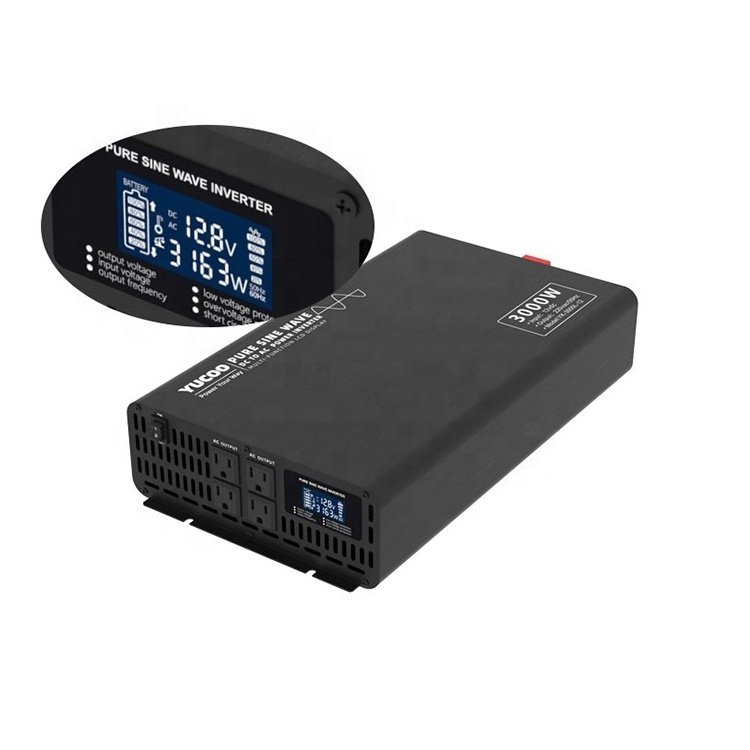

12Vdc 24Vdc 48Vdc 60Vdc 72Vdc to 110Vac 220Vac pure sine wave power inverter off grid
Introduction of off grid pure sine wave inverter:
1. This inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is indeed pure. The unique dynamic current loop control technology ensures reliable operation of the inverter.
2. Load adaptability, including inductive load, capacitive load, resistive load, Hybrid load. High performance at over-load capacity and impact resistance.
3. It has perfect protection functions such as input over voltage, under-voltage, overload, overheat, and output short circuit etc.
4. The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.
5. Stable performance, safe and reliable, long service life.
|
Model |
YK- 600L |
YK- 1000L |
YK- 1500L-24 |
YK- 2000L |
YK- 3000L |
YK- 4000L |
YK- 5000L |
|
Display |
LCD Display |
||||||
|
DC Input |
|||||||
|
Rate voltage |
12Vdc/24Vdc48Vdc/60Vdc/72Vdc |
||||||
|
Range voltage |
10-15Vdc/20-30Vdc/40-60Vdc/50-75Vdc/ |
||||||
|
AC Output |
|||||||
|
Output Voltage |
110Vac or 220vac±5% |
||||||
|
Output Frequency |
50Hz or 60Hz±0.1% |
||||||
|
Wave |
Pure Sine wave |
||||||
|
Output Power |
600W |
1000W |
1500W |
2000W |
3000W |
4000W |
5000W |
|
Peak Power |
1200W |
2000W |
3000W |
4000W |
6000W |
8000W |
10000W |
|
Conversion Efficiency |
≥90% |
||||||
|
Protect function |
|||||||
|
Function-1 |
Input reverse connection protection: Fuse |
||||||
|
Function-2 |
Input low voltage protection : 20Vdc±0.3V |
||||||
|
Function-3 |
Recovery voltage : 24V(25.5V±0.3) |
||||||
|
Function-4 |
Input high voltage protection: 30Vdc±0.3V |
||||||
|
Function-5 |
Over temperature protect: 80°±5° |
||||||
|
No-load current |
0.3A |
0.6A |
0.7A |
0.7A |
1.0A |
1.0A |
1.0A |
|
Over load protection |
660±50W |
1100±50W |
1650±50W |
2200±50W |
3300±50W |
4000±50W |
5000±50W |
|
Total Harmonic Distortion |
≤3% |
||||||
|
Working temperature |
-5~+50℃ |
||||||
|
Storage temperature |
-20~+70℃ |
||||||
|
Cooling method |
Intelligent temperature controlled air cooling |
||||||
|
Mechanical properties |
|||||||
|
Input terminal |
Terminal form |
||||||
|
Output socket |
According request |
||||||
|
Housing material |
Aluminum |
||||||
|
Size(mm) |
200*173*76 |
310*173*76 |
340*173*76 |
360*173*76 |
400*242*88 |
400*242*88 |
420*242*88 |
|
Weight (kg) |
2.1 |
3.2 |
3.5 |
4.5 |
8.5 |
9.5 |
10.5 |
Regard as the inverter we can customize different specification according to your request
- Input: 12Vdc/24Vdc/48Vdc/60Vdc/72vdc
- Output: 110Vac/220Vac 60/50Hz
- Rate Power : 300W/600W /1000W/1500W/2000W/3000W/4000W/5000W
- Peak Power : 600W /1200W/2000W/3000W/4000W/6000W/8000W/10000W
|
Rate Voltage input |
Rate power |
Range Voltage input |
|
12/24/48/60/72vdc |
600W |
1200W |
|
1000W |
2000W |
|
|
1500W |
3000W |
|
|
2000W |
4000W |
|
|
3000W |
6000W |
|
|
4000W |
8000W |
|
|
5000W |
10000W |
