Quick Details
-
Place of Origin:
-
Shenzhen
-
Brand Name:
-
OEM
-
Model Number:
-
2308A3-K603-8C
-
Keyword:
-
AHD CCTV Surveillance System
-
Storage:
-
Support up to 6TB HDD(default not included)
-
Waterproof:
-
IP65 Waterproof
-
Channel:
-
8CH
-
APP:
-
XMeye Pro
-
Audio:
-
Built-in MIC
Quick Details
-
Network:
-
AHD
-
Customized support:
-
Customized logo
-
Special Features:
-
NIGHT VISION, One-way Audio, Motion Detection, Waterproof / Weatherproof, Face detection
-
Place of Origin:
-
Shenzhen
-
Brand Name:
-
OEM
-
Model Number:
-
2308A3-K603-8C
-
Keyword:
-
AHD CCTV Surveillance System
-
Storage:
-
Support up to 6TB HDD(default not included)
-
Waterproof:
-
IP65 Waterproof
-
Channel:
-
8CH
-
APP:
-
XMeye Pro
-
Audio:
-
Built-in MIC
Specification
|
AHD Camera Specification
|
|
|
|
system structure
|
Embedded RTOS design, dual-core 32-bit DSP
|
|
|
sensor
|
2MP 1/2.7" CMOS sensor, color 0.1Lux@F1.2, black and white 0.01Lux@F1.2
|
|
|
Video processing
|
H.264encoding, dual stream, AVI format; stream 0.1M~6Mpbs adjustable
|
|
|
Image output
|
Main stream: 1920*1080@12fps；auxiliary stream: 640*360@12fps
|
|
|
shutter
|
1/50 (1/60) second to 1/10000 second
|
|
|
Lens
|
3.6mm
|
|
|
Day and night conversion mode
|
Support IR-CUT, IR-CUT coil internal resistance 20 ohms, power-on time is less than 200ma, voltage 3.5V-6V
|
|
|
Noise reduction
|
Support 2D/3D noise reduction
|
|
|
Wide dynamic
|
Support wide dynamic
|
|
|
Auto iris
|
no
|
|
|
Audio
|
no
|
|
|
reliability
|
Comprehensive lightning protection, in line with national and international standards; 7*24 hours 65℃ high temperature test is
stable and reliable |
|
|
ONVIF
|
not support
|
|
|
power supply
|
Power supply: DC12V
|
|
|
4CH DVR Specification
|
|
|
|
operating system
|
Embedded LINUX operating system
|
|
|
system resource
|
Simultaneous multi-channel real-time recording, multi-channel real-time playback, multi-channel multi-person network operation,
USB backup |
|
|
Operation interface
|
16-bit true color graphical menu operation interface, support mouse operation
|
|
|
Screen display
|
1/4 screen
|
|
|
Video access mode
|
8CH 1080N
|
|
|
Image decoding
|
H.265 AHD/CVI/TVI/CVBS
|
|
|
Monitor quality
|
960*1080@12fps
|
|
|
|
(Support 2MP/1MP/1.3MP Coaxial Camera)
|
|
|
Playback quality
|
960*1080
|
|
|
Decoding ability
|
4CH 5M/3M/2M/1M
|
|
|
VR
|
not support
|
|
|
Humanoid face detection
|
Support (rely on front-end camera)
|
|
|
Audio compression
|
G.711A
|
|
|
Language intercom
|
stand by
|
|
|
Video mode
|
Manual>Alarm>Motion Detection>Timing
|
|
|
Local playback
|
2M/1M
|
|
|
Video query
|
Time point search, calendar search, event search, channel search, face search
|
|
|
Video save
|
Local hard disk(default not including HDD), network
|
|
|
Backup method
|
Network backup, USB mobile hard disk, USB burning, SATA burning
|
|
|
Video output
|
1 HDMI high-definition output, 1 VGA output
|
|
|
Audio I/O
|
1/1 (3.5MM interface)
|
|
|
Alarm I/O
|
0/0
|
|
|
Network Interface
|
1 RJ45 10M/100M adaptive Ethernet port, 4/8 channel wifi
|
|
|
USB interface
|
2 USB2.0 ports (reserve 1 front port)
|
|
|
Hard disk interface
|
1 SATA interface (each supports up to 14T)
|
|
|
ESATA
|
no
|
|
|
Serial interface
|
no
|
|
|
ONVIF
|
Optional support
|
|
|
power supply
|
12V/2A
|
|
|
Power consumption
|
<10W (without hard disk)
|
|
|
working environment
|
Temperature: 0℃-＋55℃, humidity: 10%-90% RH, atmospheric pressure: 86kpa-106kpa
|
|
Product Description
Highlights
(1) 2MP AHD CCTV System

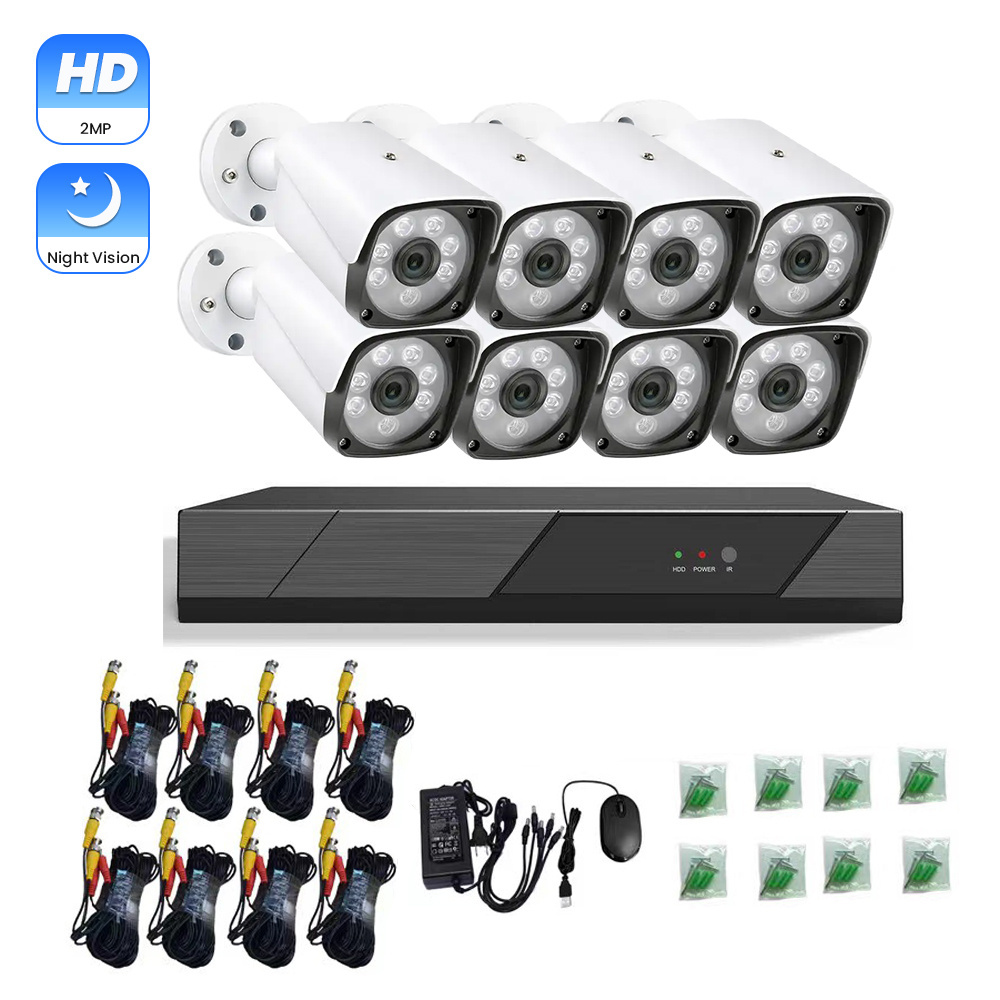

(2) 8pcs AHD Cameras + 8CH 1080N DVR
(3) One way audio, built-in mic
(4) Optional IR night vision(default) and starlight night vision
(5) Plug and Play
(6) Support to view on APP(Xmeye Pro)
(7) Support OEM services like logo and customized package and manual for bulk order
(8) Optional 12V US/EU/UK/AU Power Supply
