Name: Joystick
Quantity: 5 pcs
It's simply and easy to control the machine up/down, the spindle up/down, left/right, the blade cover open/close..
- Product Details
- {{item.text}}
Quick Details
-
Applicable Industries:
-
Stone Mining
-
Production Capacity:
-
Depends on different models
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hualong
-
Voltage:
-
400/415V / 50Hz 260A
-
Dimension(L*W*H):
-
4835*2450*2900mm
-
Weight:
-
7200 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Diameter of vertical blae:
-
1330 mm
-
Diameter of horizontal blade:
-
600 mm
-
Thickness of blade:
-
11.50 mm
-
Power of vertical driving motor:
-
75 kw
-
Power of horizontal driving motor:
-
45 kw
-
Power of rail motor:
-
5.5 kw
-
Moving speed:
-
10-45 m/min
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
117.2kw
-
Cutting thickness (max):
-
520mm
-
Applicable Industries:
-
Stone Mining
-
Production Capacity:
-
Depends on different models
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hualong
-
Voltage:
-
400/415V / 50Hz 260A
-
Dimension(L*W*H):
-
4835*2450*2900mm
-
Weight:
-
7200 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Diameter of vertical blae:
-
1330 mm
-
Diameter of horizontal blade:
-
600 mm
-
Thickness of blade:
-
11.50 mm
-
Power of vertical driving motor:
-
75 kw
-
Power of horizontal driving motor:
-
45 kw
-
Power of rail motor:
-
5.5 kw
-
Moving speed:
-
10-45 m/min

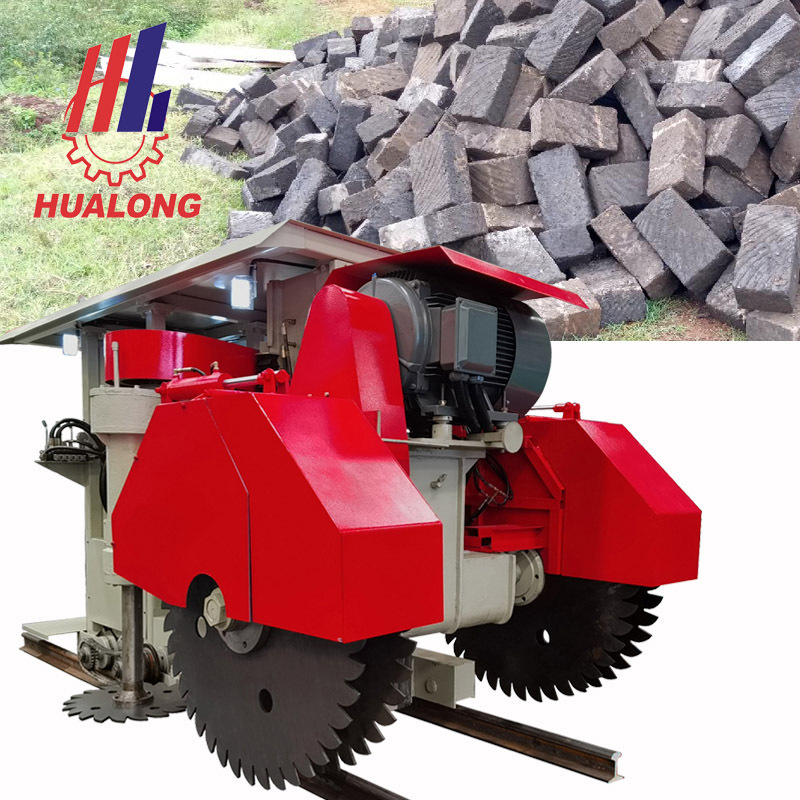

Sandstone Quarry Cutting Machine
HKSS-1400
is suitable for mining the sandstone, limestone and lieterate, cutting into blocks for building.
|
TECHNICAL DATA for HKSS-1400
|
|
|
|
|||
|
Power of Motor |
Vertical
|
Kw
|
75
|
|||
|
|
Horizontal
|
Kw
|
45
|
|||
|
|
Rail
|
Kw
|
5.5
|
|||
|
Main Performance Parameters
|
Moving speed (forward & backward)
|
m/min
|
10-45
|
|||
|
|
Max distance of cylinder lifting
|
mm
|
700
|
|||
|
|
Max cutting depth
|
mm
|
520
|
|||
|
Blade
|
Diameter of the vertical
|
mm
|
1330
|
|||
|
|
Diameter of the horizontal
|
mm
|
600
|
|||
|
|
Thickness
|
mm
|
11.5
|
|||
Brick products quarried:
Main Features
1) The longitudinal cutting relies on the large main column vertical guide rail, the structure of which is simple and strong, straight up and down runs stably.
2) Simple interface, easy to operate. A worker is able to employ it at best after having a try of few hours.
3) Crosscutting with the thick and big swing arm structure, the cutting is stable and fast.
4) Powerful motors with 93% efficiency, tall output and low consumption.
Control Companent
Main motor
Name:
Three-phase asymchronous motor
Brand:
XDDJ
Efficiency:
93.1%
Original:
China
Domestic famous engines, strong driving force, good efficiency, high economic benefits.
Power Connection & Operation Panel
Brand:
Siemens, Schneider, SANCH
Original:
China
Quality certificated by CE
Blades
Blades are made of Q460c manganese steel(difficult deformation)+heat treatment,HR up to 52. The cutter heads are made of cemented carbide,hard,wear-resisting,heat-resisting and corrosion resisting.
Q: What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
