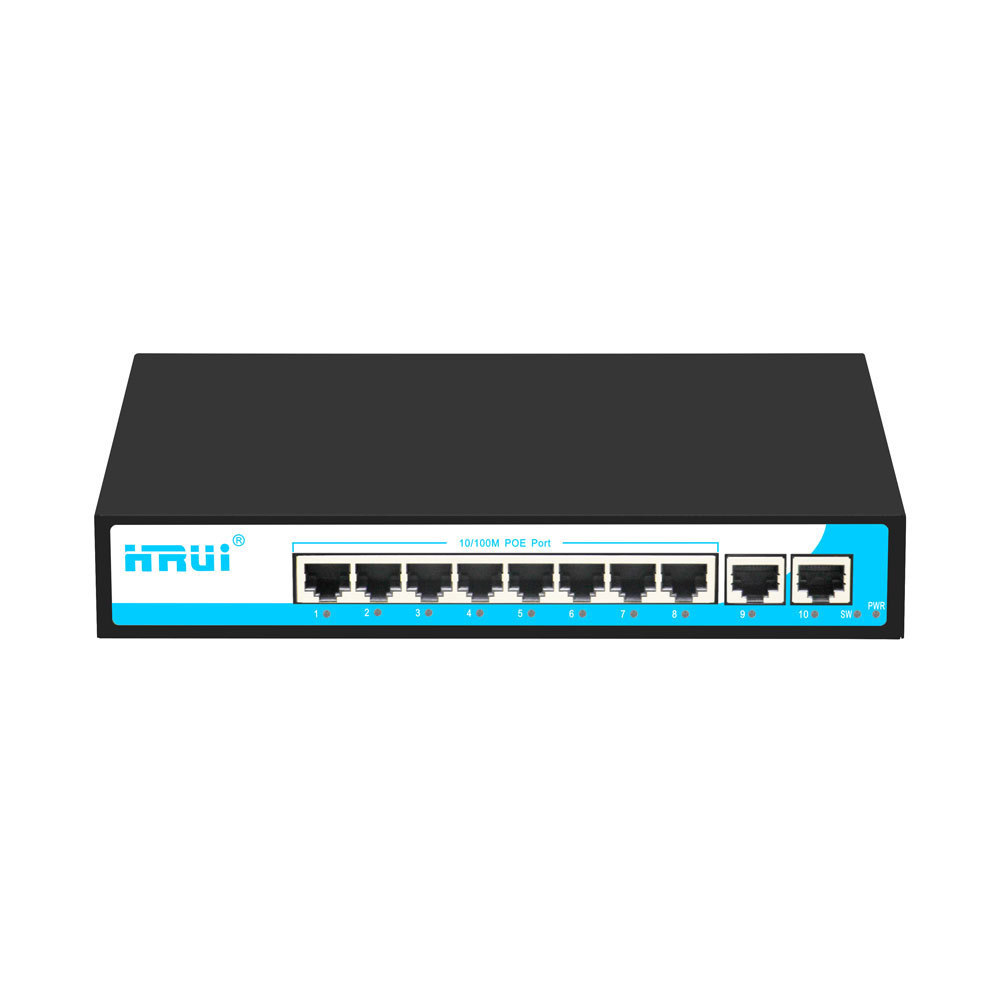

HRUI Fast Ethernet 8 Port PoE Switch 48V transmission 250 meters support VLAN Network Ethernet Switch

Technical parameter list

Product Name

10-Ports 10/100M PoE Switch

Model

HR901-AF-82N

Connector Type

8 Ports 10/100M PoE + 2 Ports 10/100M Ethernet Uplink

Network Protocols

IEEE802.3,

IEEE802.3u,

IEEE802.3x,

IEEE802.3af/at

PoE Parameters

PoE Standard: IEEE802.3af /IEEE802.3at

Max each port: 15.4W (IEEE 802.3af)

Max each port:30W (IEEE 802.3at)

PoE compatibility: IEEE 802.3af/at adaptive

PoE port output: DC48-55V

Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)

10BASE-T: Cat 6 UTP(≤250 meter)

100BASE-TX: Cat5 or more UTP (≤100 meter)

PerformanceSpecification

Bandwidth: 2Gbps

MAC Address: 1K

Packet Buffer Memory: 448K

Packet Forwarding Rate: 1.488Mpps

Forwarding Mode: Store-And-Forward

Power Supply

Power input: AC100-240V 50/60Hz,  Output: 52V2.3A,  Power Budget: 120W

Led indicator

Working Environment

Operating Temperature: -20℃ ~ 50℃;

Storage Temperature: -40℃ ~ 85℃;

Operating Humidity: Max 90%, non-condensing

Storage Humidity: Max 95%, non-condensing

Working Height: Max to 10,000 feet (3,000 meters)

Storage Height: Max to 10,000 feet (3,000 meters)

Physical Parameter

Product Dimension (L*W*H): 222mm*163mm*40mm

Package Dimension (L*W*H): 303mm*190mm*60mm

N.W: 0.9KG

G.W: 1.2KG

Package Contents

1.Ethernet Switch:1 unit

2.User Guide:1 unit

3.Warranty Card:1 unit

4.Power Cord:1unit

5.Wall Mount: 1 pair

MTBF

100,000 hours

Certification

CE ,RoHS, FCC, CCC

Warranty

2 years
