Quick Details
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
/
-
Model Number:
-
DN60-DN2000
-
Product name:
-
Ceramic lined wear-resistant pipe
-
Material:
-
Carbon steel + Ceramic lining
-
Application:
-
Industrial Ceramic
-
Color:
-
Customized Colors
-
Size:
-
DN60-DN2000
-
Usage:
-
Oil Gas Water Industrial,Colliery
-
Certificate:
-
ISO 9001
-
Packing:
-
Wooden tray
-
OEM:
-
Provide OEM Services
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
Square
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
/
-
Model Number:
-
DN60-DN2000
-
Product name:
-
Ceramic lined wear-resistant pipe
-
Material:
-
Carbon steel + Ceramic lining
-
Application:
-
Industrial Ceramic
-
Color:
-
Customized Colors
-
Size:
-
DN60-DN2000
-
Usage:
-
Oil Gas Water Industrial,Colliery
-
Certificate:
-
ISO 9001
-
Packing:
-
Wooden tray
-
OEM:
-
Provide OEM Services
Product Overview

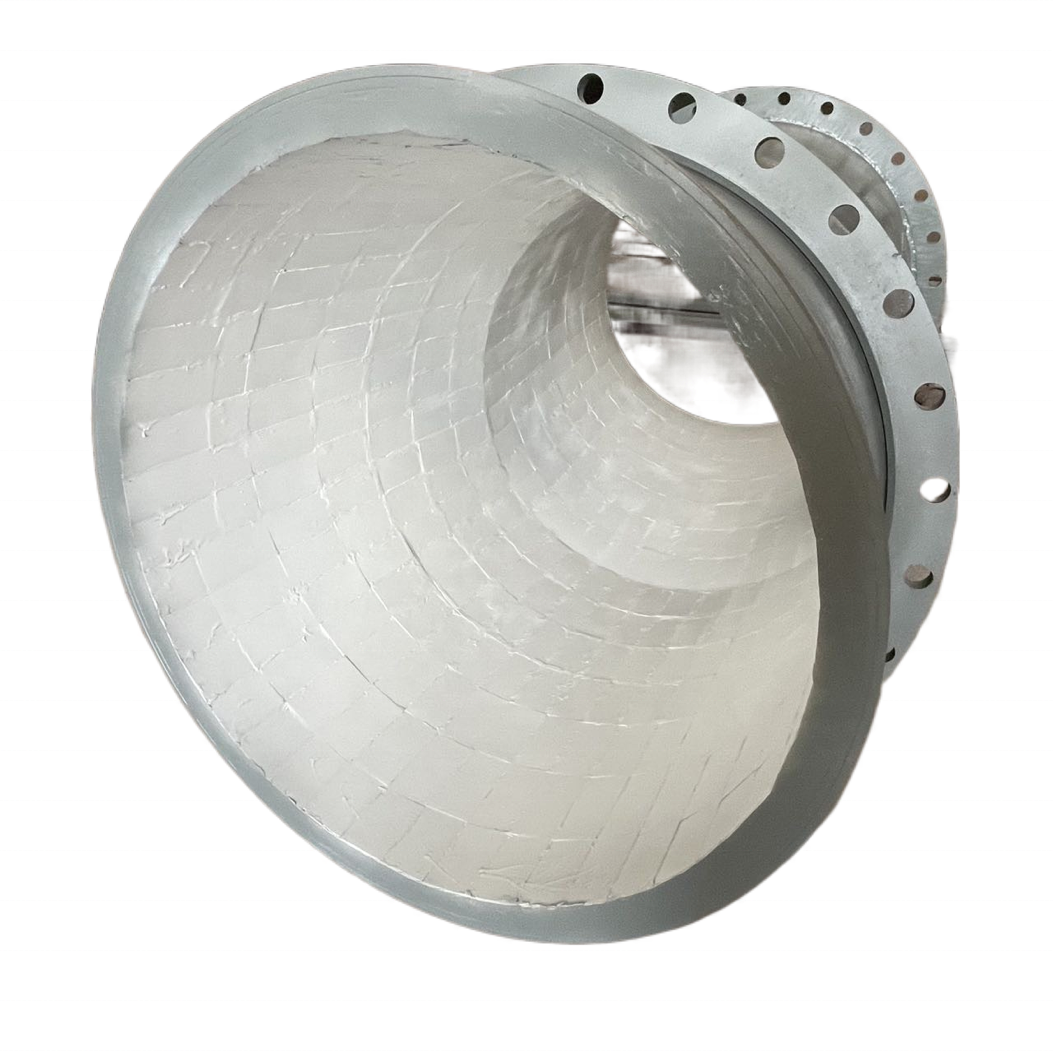

Ceramic Lined Wear-resistant Straight Pipe
Alumina ceramic is a type of ceramic made from alumina with a main raw material of over 95% AL2O3（ α— AL2O3). It is a ceramic material with α— AL2O3 as the main crystalline phase, which has excellent comprehensive technical properties such as high mechanical strength, high hardness, high insulation resistance at high temperature, good chemical corrosion resistance and thermal conductivity, high density, high abrasion resistance, high impact resistance, smooth surface and convenient construction. It is mainly used for wear-resistant lining of equipment in coal, coal preparation, steel, mining, fossil-fuel power station and other industries, Especially suitable for heavy medium coal conveying pipelines in coal preparation plants, as well as for areas with high wear and tear such as material conveying channels, discharge grooves, spiral pipeline discharge ports, and dust equipment in mines and docks.
FEATURES AT A GLANCE
1. Unique attachment technology
2. High precision ceramic chip cutting
3. Can withstand harsh working conditions
4. Service life: 5 years for straight pipes and 3 years for bent pipes under normal working conditions.
5. Convenient installation
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
Specification
|
outer diameter
|
inside diameter
|
wall thickness1
|
Steel pipe thick
|
||||
|
耐磨管DN80
|
112~132
|
80
|
10~14
|
6~12
|
||||
|
耐磨管DN100
|
132~152
|
100
|
10~14
|
6~12
|
||||
|
耐磨管DN125
|
157~177
|
125
|
10~14
|
6~12
|
||||
|
耐磨管DN150
|
182~202
|
150
|
10~14
|
6~12
|
||||
|
耐磨管DN200
|
236~264
|
200
|
10~20
|
6~12
|
||||
|
耐磨管DN250
|
286~314
|
250
|
10~20
|
6~12
|
||||
|
耐磨管DN300
|
336~364
|
300
|
10~20
|
6~12
|
||||
|
耐磨管DN350
|
386~414
|
350
|
10~20
|
6~12
|
||||
|
耐磨管DN400
|
436~464
|
400
|
10~20
|
6~12
|
||||
|
耐磨管DN450
|
486~514
|
450
|
10~20
|
6~12
|
||||
|
耐磨管DN500
|
542~584
|
500
|
15~30
|
6~12
|
||||
|
耐磨管DN600
|
642~684
|
600
|
15~30
|
6~12
|
||||
|
耐磨管DN700
|
742~784
|
700
|
15~30
|
6~12
|
||||
|
耐磨管DN800
|
842~884
|
800
|
15~30
|
6~12
|
||||
|
耐磨管DN900
|
942~984
|
900
|
15~30
|
6~12
|
||||
|
耐磨管DN1000
|
1046~1088
|
1000
|
15~30
|
8~14
|
||||
|
耐磨管DN1200
|
1246~1288
|
1200
|
15~30
|
8~14
|
||||
|
耐磨管DN1400
|
1446~1488
|
1400
|
15~30
|
8~14
|
||||
|
耐磨管DN1600
|
1646~1688
|
1600
|
15~30
|
8~14
|
||||
|
耐磨管DN1800
|
1846~1888
|
1800
|
15~30
|
8~14
|
||||
|
耐磨管DN2000
|
2046~2088
|
2000
|
15~30
|
8~14
|
||||
|
Note: customized according to customer needs.
|
|
|
|
|
||||
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
SALES AND SERVICE NETWORK
Recommend Products
Successful Project
Project in Thailand
Project in India
Project in Russia
FAQ
How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
Whether you could make your products by our color?
Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
Whether you could make our brand on your products?
Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
