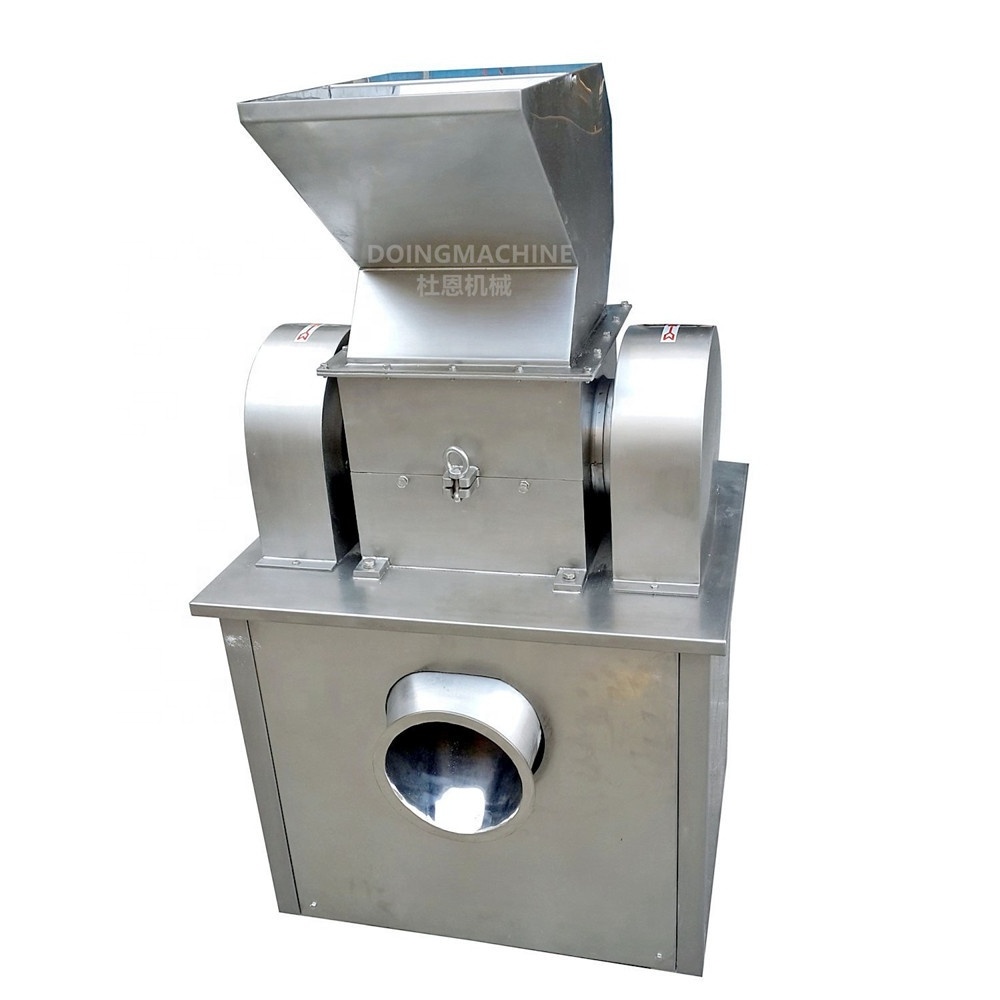

Dry tea leaf grinding machine tea power making machine

Dry tea leaf grinding machine tea power making machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $3500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power (kW):: 11

Range of Spindle Speed(r.p.m):: 50 - 400 r.p.m

Place of Origin:: Jiangsu, China

Brand Name:: Doing Machine

Voltage:: 380V,50Hz,3P

Dimension(L*W*H):: 900x700x1440mm

Weight (KG):: 350 KG

Name:: Dry tea leaf grinding machine

Model:: CJS-200/300/400/600

Drive motor power:: 3-11kw

Capacity:: 80-1500 M3/h

Size of input:: less than 100mm

Size of output:: 0.5-20mm

Weight:: 200-500kg

construction material:: SUS304,SUS316

Quick Details

Output (kg/h):: 80 - 1500 kg/h

Feeding Size (mm):: 5 - 100 mm

Output Size (mesh):: 10 - 20 mesh

Power (kW):: 11

Range of Spindle Speed(r.p.m):: 50 - 400 r.p.m

Place of Origin:: Jiangsu, China

Brand Name:: Doing Machine

Voltage:: 380V,50Hz,3P

Dimension(L*W*H):: 900x700x1440mm

Weight (KG):: 350 KG

Name:: Dry tea leaf grinding machine

Model:: CJS-200/300/400/600

Drive motor power:: 3-11kw

Capacity:: 80-1500 M3/h

Size of input:: less than 100mm

Size of output:: 0.5-20mm

Weight:: 200-500kg

construction material:: SUS304,SUS316

Product Description

Main features

1. Fast particle size reduction from 300mm to 2mm in food and chemical industries

2. Product size: 0.5-20 mm

3. Process capacity: 80-1500 kg/h

4. Dust collector can be equipped

5. Product particle size is adjustable by changing sieves

Working principle

CSJ series rotary knife grinding machine, which consists of feed hopper, rotary and stator knives, bottom sieves and/or dust collector, is designed for fast particle size reduction from 300mm to 2mm mainly for food products. The material to be processed falls into the cutting chamber via a guide chute and is shredded by cutting between rotating and fixed knives until it passes an attached sieve as ground product. The sieve extends over the lower half of the grinding chamber and can be easily changed. Final particle size is determined by the hole size of sieves.

CSJ series rotary knife grinding machine is most often used for cut corn, spices, roots, dried herbs and other soft to middle-hard materials in food and chemical industry into accurately controlled size or before fine grinding.

Single cutter mill

Cutter mill with dust collector

Table-type cutter mill

Technical advantages

1. Robust,simple and compact design requires minimum maintenance;

2. Made by SUS304 or SUS316 and mirror polished to meet GMP standards.

3. Alloy steel cutting knives.

4. Very easy and convinent for cleaning, changing sieve and cutting knives.

5. Different particle size can be achieved by changing sieve.

6. It is suitable for cutting wide range of products with little limilation on hardness, softness and fiber content etc.

7. Rotary knife speed is adjustable to get very gentle shredding process, which can considerably reduce fine paticles.

Main technical parameters

Model	CSJ-200	CSJ-300	CSJ-400	CSJ-600
Capacity kg/h	80-300	100-800	200-1000	500-1500
Feed size mm	≤100	≤100	≤100	≤100
Product size mm	0.5-20	0.5-20	0.5-20	0.5-20
Rotating speed RPM	400	400	400	400
Motor power KW	3	4	5.5	11
Dimension LxWxH mm	900X600X1440	900X700X1440	900x800x1440	1000x900x1440
Weight KG	200	300	380	500
