eficient and more stable. It is an ideal equipment for producing various shopping bags, snack food bags, bread bags, dried fruitbags and other environmentally friendly paper bags.
.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ALLRAISE
-
Model Number:
-
OR-400
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
4400*1700*1600mm
-
Weight:
-
1450 KG
-
Marketing Type:
-
New Product 2021
-
Paper Bag Length:
-
120-420mm
-
Paper Bag Width:
-
80-240mm
-
Paper Bag Thickness:
-
80-400g/m2
-
Capacity:
-
60-400pcs/min
-
Paper Roll Width:
-
260-720mm
-
Insert Paper Edge:
-
20-100mm(gusset)
-
Total Power:
-
10kw
-
Machine Weight:
-
1450kg
-
Machine Size:
-
4400*1700*1600mm
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Paper
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ALLRAISE
-
Model Number:
-
OR-400
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
4400*1700*1600mm
-
Weight:
-
1450 KG
-
Marketing Type:
-
New Product 2021
-
Paper Bag Length:
-
120-420mm
-
Paper Bag Width:
-
80-240mm
-
Paper Bag Thickness:
-
80-400g/m2
-
Capacity:
-
60-400pcs/min
-
Paper Roll Width:
-
260-720mm
-
Insert Paper Edge:
-
20-100mm(gusset)
-
Total Power:
-
10kw
-
Machine Weight:
-
1450kg
-
Machine Size:
-
4400*1700*1600mm
Products Description

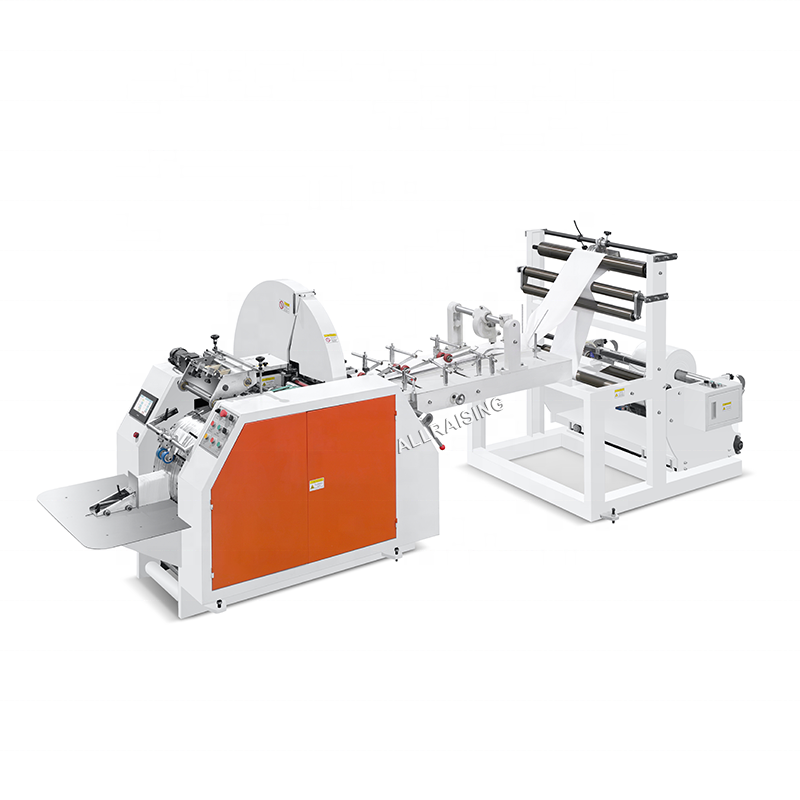

Automatic sharp bottom machines to make paper bags food paper v bottom paper bag making machine with printing
Machine Features
The OR-400 paper bag machine is made from rolls of primary color paper or printing rolls such as kraft paper, striped kraft paper, oil-gloss paper, food coated paper and other paper materials. The bag making process is from roll paper to folding,forming, cutting, gluing,bottom folding and make paper bag output at one time. This model is more convenient to operate, more
eficient and more stable. It is an ideal equipment for producing various shopping bags, snack food bags, bread bags, dried fruitbags and other environmentally friendly paper bags.
eficient and more stable. It is an ideal equipment for producing various shopping bags, snack food bags, bread bags, dried fruitbags and other environmentally friendly paper bags.
|
Applicable Industries
|
Manufacturing Plant, Other, Advertising Company
|
|
Material
|
Paper
|
|
Automation Grade
|
Fully Automatic
|
|
Paper Bag Length
|
120-420mm
|
|
Paper Bag Width
|
80-240mm
|
|
Paper Bag Thickness
|
80-400g/m2
|
|
Capacity
|
60-400pcs/min
|
|
Paper Roll Width
|
260-720mm
|
|
Insert Paper Edge
|
20-100mm(gusset)
|
|
Machine Power
|
6kw
|
|
Connected Load
|
10kw
|
|
Control
|
PLC Control
|
|
Power
|
3 phase
|
|
Voltage
|
380V
|
|
Machine size
|
4400*1700*1600mm
|
|
Machine Weight
|
1450kg
|
Product Features
|
1.
|
Increase the output. On the basis of the same power 6kw, it speeds up to 55-60pcs/min from 35-45pcs/min before.
|
|
2.
|
The bottom paper is sent by stepper motor,which controls the interval of bottom papers about 0.1mm, so that the machine is more paper saving and performs more stably.
|
|
3.
|
The inner structure adopts the vertical axis gear drive system to avoid chain loosening and malposition problems.
|
|
4.
|
Automatic lubrication system,which reduces the friction of machine parts and improves the machine maintenance, works a lot.
|
|
5.
|
The machine is equipped with optically controlled non contact switch.
|
|
6.
|
Paper feeding working station is driven by cams without noise,performing stably and well,which is pioneer technology at home.
|
|
7.
|
The machine adopts the gear motor in replacement of the separate reduction box and motor,making the drive system simpler and more stable.
|
|
8.
|
Automatic paper cup collecting in the sixth working position that increases the efficiency.
|
