Quick Details
-
Model Number:
-
T3030
-
Stroke:
-
64mm
-
Push Rod Thread:
-
5/8"-18UNF2A
-
Air Inlet Thread:
-
3/8"-18NPTF
-
Mounting Bolt Thread:
-
5/8-11UNC2A
-
Operating temperature:
-
-40 °C~+80 °C
-
Life-time Parking Chamber:
-
200000 times
-
Life-time Service Chamber:
-
1000000 times
-
Weight:
-
9.5kg
Quick Details
-
Material:
-
Steel & Aluminum Alloy, Steel, Aluminum
-
Size:
-
Standard Size
-
OE NO.:
-
T3030 Air Brake Chamber
-
Model Number:
-
T3030
-
Stroke:
-
64mm
-
Push Rod Thread:
-
5/8"-18UNF2A
-
Air Inlet Thread:
-
3/8"-18NPTF
-
Mounting Bolt Thread:
-
5/8-11UNC2A
-
Operating temperature:
-
-40 °C~+80 °C
-
Life-time Parking Chamber:
-
200000 times
-
Life-time Service Chamber:
-
1000000 times
-
Weight:
-
9.5kg
Heavy Duty Dump Truck Air Brake Chamber 30/30
1>Product Introduction of the Heavy Duty Dump Truck Air Brake Chamber 30/30

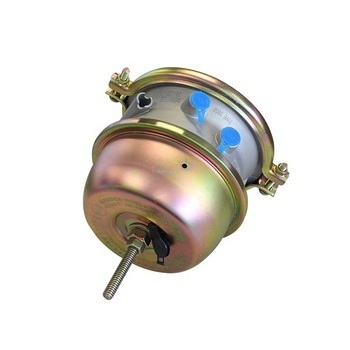

T3030 Double Air Brake Chamber for Heavy Truck produced by Lahoo Auto. Air brake chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the vehicle. There are two kinds of air brake chambers — service and spring brake chambers.
2> Product Specification of the Heavy Duty Dump Truck Air Brake Chamber 30/30
|
Item No. |
Stroke |
R1 |
R2 |
L1 |
L2 |
L4 |
Push Rod Thread |
Air Inlet Thread |
Mounting Bolt Thread |
Weight |
|
mm |
mm |
mm |
kg |
|||||||
|
LHC-T3030 |
64 |
125 |
105 |
238±5 |
285±5 |
255±5 |
5/8"-18UNF2A |
3/8"-18NPTF |
5/8-11UNC2A |
9.5 |
3> P roduct Feature And Details of the Heavy Duty Dump Truck Air Brake Chamber 30/30
Name:Sealed Long Stroke Truck Air Brake Chamber 30/30
Name: air brake chambers
Material: Steel, Aluminum
Max operating pressure: 800Kpa ~ 1Mpa
Operating temperature: -40 °C~+80 °C
Stroke: 0-76MM
Life-time: Service Chamber: ≥1000000 times
Life-time: Parking Chamber: ≥200000 times
Aplication: Universal
Leading Standard: SAE J1469-95 by Society of Automobile Engineers USA
