Supply SS304 PTFE Braided Hose 150ton/month E85 Hose Universal Fittings Kit PTFE Fuel Line PTFE Braided Tube

Supply SS304 PTFE Braided Hose 150ton/month E85 Hose Universal Fittings Kit PTFE Fuel Line PTFE Braided Tube

FOB Reference Price: Get Latest Price

≥100 Pieces

US $0.58

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: PTFE Tube

Specification:: 1/4'', 5/16'', 3/8'', 1/2'', 5/8'', 3/4''

Length:: 100m/roll

Thickness:: 1mm,2mm,3mm,4mm

Standard:: ISO, RoHS, Reach, IATF16949

Product name:: SS304 Stainless steel wire braided PTFE Tube

Packing:: Carton

Inner tube:: virgin PTFE Hose

Size:: 1/4'', 5/16'', 3/8'', 1/2'', 5/8'', 3/4''

Certification:: ISO, RoHS, Reach, IATF16949

Manufacturer:: YES

Price:: EXW price

Working Pressure:: 93kg--256kg

OEM:: Available

MOQ:: 50 Meters

Quick Details

Processing Service:: Cutting

Place of Origin:: Guangdong, China

Brand Name:: WITFLON

Model Number:: PTFE Tube

Specification:: 1/4'', 5/16'', 3/8'', 1/2'', 5/8'', 3/4''

Length:: 100m/roll

Thickness:: 1mm,2mm,3mm,4mm

Standard:: ISO, RoHS, Reach, IATF16949

Product name:: SS304 Stainless steel wire braided PTFE Tube

Packing:: Carton

Inner tube:: virgin PTFE Hose

Size:: 1/4'', 5/16'', 3/8'', 1/2'', 5/8'', 3/4''

Certification:: ISO, RoHS, Reach, IATF16949

Manufacturer:: YES

Price:: EXW price

Working Pressure:: 93kg--256kg

OEM:: Available

MOQ:: 50 Meters

Products Description

ITEM	DETAILS

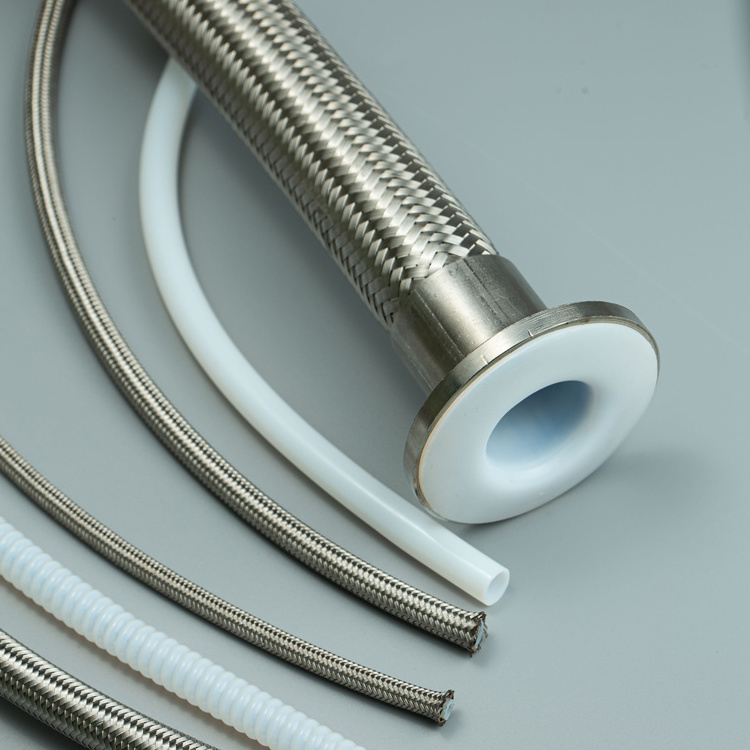

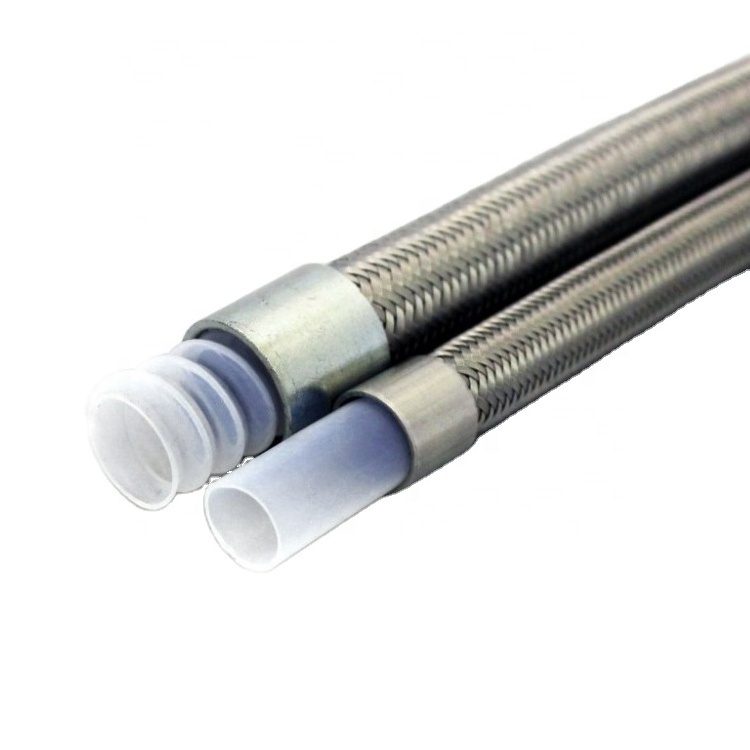

PRODUCT NAME	Stainless Steel Wire Braided PTFE Tube
MATERIAL	SS201/304/316+Virgin PTFE Tube inside
APPLICATION	Coolants, Oil, Fuel, Gasoline, E85, Air and Methanol
WORKING TEMPERATURE	-58F to 410F (-50℃ to +210℃)
TENSILE STRENGTH	250
CERTIFICATIONS	IATF16949, ISO14001, ISO45001、 EURoHS

Product features

——High / Low Temperature

Stability

——High Strength

——N on-toxic and Tasteless

——N on-Combustible

——A cidic and Alkali

Resistances

This synthetic fluoropolymer of tetrafluoroethylene is known for being one of the most versatile plastics available. Being
hydrophobic, non-wetting, high density and resistant to high temperatures,

Applications

Our products are widely used in:

A erospace

A utomotive

Chemical

E lectrical insulation

E lectronic communications

H eat exchanger

M echanical environmental

Medical

P ower engineering

Protection

T ransformer

and other industrial fields

Product Paramenters

Technical Data
Name	PTFE	FEP	PFA
Tensile Strength	250	210	280
Extensibility	350	300	300
Hardness	55D	55D	55D
Melting Point (°C)	327	279	305
High Temperature (°C)	260	200	260
Low Temperature (°C)	-65	-200	-200
Non Combustion Limit	Rated 94VO	Rated 94VO	Rated 94VO
Water Uptake	<0.01	<0.01	<0.01
Weathering Resistance	Excellent	Excellent	Excellent
Density	2.1	2.1	2.1
1MHz Permittivity	2.1	2.1	2.1
Dissipation Factor	0.0002	0.0002	0.0002
Resistance to Organic	Excellent	Excellent	Excellent
Elasticitv	Good	Good	Good
