- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HW
-
Use:
-
Enterprise
-
Dimensions (H x W x D):
-
145 mm x 650 mm x 550 mm
-
Weight:
-
8.22kg
-
Switching Capacity:
-
696 Gbps/2.32 Tbps
-
Forwarding Performance:
-
450Mpps
-
Power Supply Type:
-
3 power supplies, N+1 power supply backup
-
Chassis height:
-
1U
-
Static power consumption:
-
64W
-
Number of card slots:
-
2
-
Memory:
-
4GB
-
Eth Management port:
-
RJ45
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
S5755-H48P4Y2CZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HW
-
Use:
-
Enterprise
-
Dimensions (H x W x D):
-
145 mm x 650 mm x 550 mm
-
Weight:
-
8.22kg
-
Switching Capacity:
-
696 Gbps/2.32 Tbps
-
Forwarding Performance:
-
450Mpps
-
Power Supply Type:
-
3 power supplies, N+1 power supply backup
-
Chassis height:
-
1U
-
Static power consumption:
-
64W
-
Number of card slots:
-
2
-
Memory:
-
4GB
-
Eth Management port:
-
RJ45

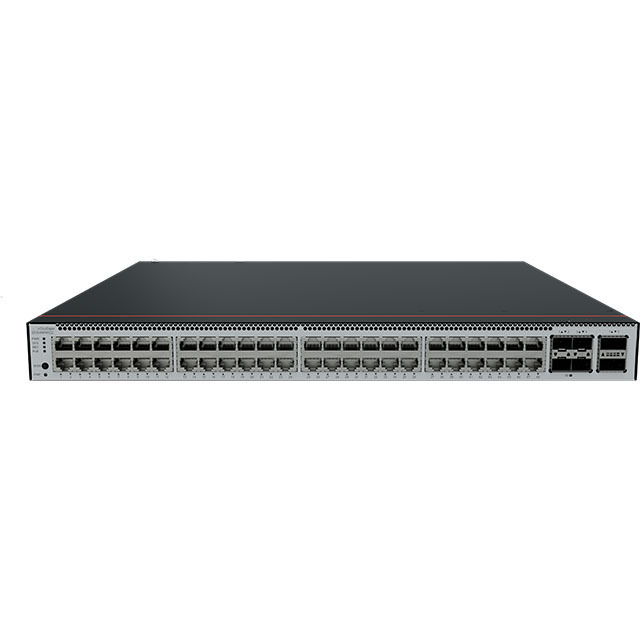

CloudEngine Gigabit Enterprise POE 48 Ports Switch S5755-H48P4Y2CZ
CloudEngine S5755-H series switches are high-quality gigabit access switches that provide 24 or 48 10/100/1000BASE-T downlink ports, four 25GE plus two 100GE uplink ports, and expansion card slots.
By leveraging HW's unified software platform, CloudEngine S5755-H series creates a multi-purpose network through VXLAN-based network virtualization. The series also stands out for free mobility that delivers consistent user experience anywhere, anytime. A maximum of 48 downlink ports and MACsec support on all ports make CloudEngine S5755-H the best choice of access switches for the Wi-Fi 6 and Wi-Fi 7 era. With these merits, CloudEngine S5755-H series can be widely used in healthcare, retail, mining, Internet Service Provider (ISP), and other industries.
High reliability
3 power supplies, N+1 power supply backup, allowing a mix of AC and DC power supplies
Network virtualization
VXLAN-based network virtualization for multi-service support on one physical network at lower costs
End-to-end security
MACsec support on all ports for E2E MACsec networking
S5700 switches in a data center
| Product Model | CloudEngine S5755-H48T4Y2CZ | CloudEngine S5755-H48P4Y2CZ | CloudEngine S5755-H48U4Y2CZ |
| Forwarding Performance | 450Mpps | 450Mpps | 450Mpps |
| Switching Capacity 2 | 696 Gbps/2.32 Tbps | 696 Gbps/2.32 Tbps | 696 Gbps/2.32 Tbps |
| Fixed Ports | 48 × 10/100/1000 Base-T Ethernet ports, 4 x 1/10/25GE SFP28, 2 x 40/100GE QSFP28 ports | ||
| PoE | | Supported, PoE+ | Supported, 60W PoE++ |
| Power Supply Type | 1+1 power supply backup | 3 power supplies, N+1 power supply backup | 3 power supplies, N+1 power supply backup |
| Expanded Card Slot | Reserved expanded card slot | ||
| MAC Features |
IEEE 802.1d compliance
Automatic MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
||
| iPCA |
Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio
Collecting real-time statistics on the number of lost packets and packet loss ratio at network and device levels |
||
| VXLAN |
VXLAN Layer 2 and Layer 3 gateways
Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol |
||
| Interoperability |
VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP) VCMP (similar to VTP) |
||
- Trade terms: FOB, CIF , CFR , etc
- Price Terms:T/T,Western Union,Paypal,RMB
- Payment Terms: T/T in advance
- MOQ: 1 pc
- Port: Shanghai
- Lead time: Within 5-45 working days after receipt payment.(According to configuration)
- Shipment: Express, Air, Sea
- Sample availability: Yes (not free)
-
Package information: Standard carton package with the original package
