Quick Details
-
Brand Name:
-
Yifeng
-
Model Number:
-
MS-10
-
Work Time (h):
-
24 hours
-
Max PV Power:
-
10kw
-
Max PV Voltage:
-
480v
-
Certificate:
-
CE/Fcc/RoHS/ ISO9001
-
Warranty:
-
3 Years
-

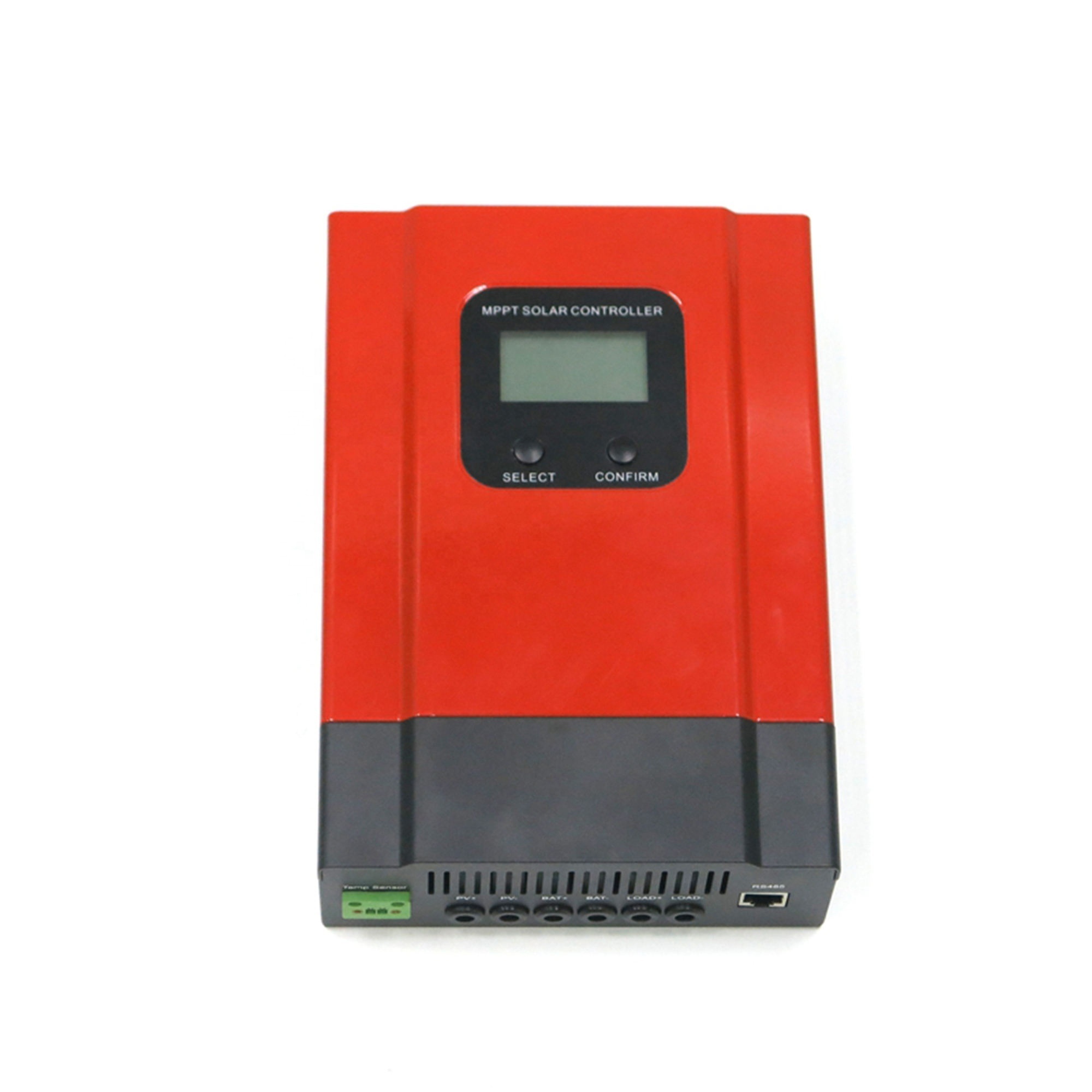

Product Name:
-
Mppt Charge Controller
-
Charge Mode:
-
MPPT Maximum Power Point Tracking
-
Display:
-
LCD
-
Rated Current:
-
80A 100A
-
Color:
-
Blue/Green/White
-
System Voltage:
-
12v/24v/36v/48v Automatic Recognition
-
Weight:
-
8.8kg
Quick Details
-
Type:
-
MPPT, MPPT Charge Regulator
-
Application:
-
Charger Controller
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yifeng
-
Model Number:
-
MS-10
-
Work Time (h):
-
24 hours
-
Max PV Power:
-
10kw
-
Max PV Voltage:
-
480v
-
Certificate:
-
CE/Fcc/RoHS/ ISO9001
-
Warranty:
-
3 Years
-
Product Name:
-
Mppt Charge Controller
-
Charge Mode:
-
MPPT Maximum Power Point Tracking
-
Display:
-
LCD
-
Rated Current:
-
80A 100A
-
Color:
-
Blue/Green/White
-
System Voltage:
-
12v/24v/36v/48v Automatic Recognition
-
Weight:
-
8.8kg
Product Description
Product Paramenters
|
Master series
|
|
|
Master
48BL-80A |
Master
48BL-100A |
Master
48BH-80A |
Master
96BH-50A |
||||
|
Product category |
Controller Properties
|
|
MPPT (maximum power point tracking)
|
|
|
|
||||
|
|
MPPT efficiency
|
|
≥99.5%
|
|
|
|
||||
|
|
System voltage
|
|
Automatic recognition
|
|
48V
|
96V
|
||||
|
|
Heat-dissipating method
|
|
Air cooling
|
|
|
|
||||
|
Input Characteristics |
Max.PV input voltage(VOC)
|
|
DC150V
|
|
DC300V
|
|
||||
|
|
Start the charge voltage point
|
|
Battery voltage + 3V
|
|
Battery voltage + 10V
|
|
||||
|
|
Low voltage protection
|
|
Battery voltage + 2V
|
|
Battery voltage + 5V
|
|
||||
|
|
Over voltage protection
|
|
DC150V
|
|
DC300V
|
|
||||
|
|
Rated PV power |
12V system
|
1040W
|
1300W
|
-
|
-
|
||||
|
|
|
24V system
|
2080W
|
2600W
|
-
|
-
|
||||
|
|
|
36V system
|
3120W
|
3900W
|
-
|
-
|
||||
|
|
|
48V system
|
4160W
|
5200W
|
4160W
|
-
|
||||
|
|
|
96V system
|
-
|
-
|
-
|
5200W
|
||||
|
Charge Characteristics |
Selectable Battery Types
(Default Gel battery) |
|
Sealed lead acid, Gel battery, Flooded
(Other types of the batteries also can be defined) |
|
|
|
||||
|
|
Charge rated current
|
|
80A
|
100A
|
80A
|
50A
|
||||
|
|
Charge Method
|
|
3-Stage: constant current(fast charging)-
constant voltage-floating charge |
|
|
|
||||
|
LOAD Characteristics |
Load voltage
|
|
The same as the battery voltage
|
|
|
|
||||
|
|
Load rated current
|
|
80A
|
100A
|
80A
|
50A
|
||||
|
|
Load control mode
|
|
On\Off mode, PV voltage control mode,
Dual-time control mode, PV + Time control mode |
|
|
|
||||
|
Display & Comm. |
Display mode
|
|
LCD (128*64 dots) &backlight
|
|
|
|
||||
|
|
Communication mode
|
|
8-pin RJ45 port/RS485/support PC software monitoring/
support WiFi module to realize APP cloud monitoring |
|
|
|
||||
|
Other Parameters |
Protect function
|
|
Input-output over \ under voltage protection,
Prevention of connection reverse protection etc. |
|
|
|
||||
|
|
Operation Temperature
|
|
-20℃~+50℃
|
|
|
|
||||
|
|
Storage Temperature
|
|
-40℃~+75℃
|
|
|
|
||||
|
|
IP(Ingress protection)
|
|
IP43
|
|
|
|
||||
|
|
Max. connection size
|
|
50mm2
|
|
|
|
||||
|
|
Net Weight (kg)
|
|
7.1
|
|
|
|
||||
|
|
Gross Weight (kg)
|
|
8.8
|
|
|
|
||||
|
|
Product Size(mm)
|
|
420*280*95
|
|
|
|
||||
|
|
Packing Size(mm)
|
|
510*368*210
|
|
|
|
||||
