Quick Details
-
Panel Size:
-
12*10*3mm, 12*10*3mm
-
Place of Origin:
-
China
-
Color Depth:
-
red, red
-
HS Code:
-
853120000
-
name:
-
0.2" 7 segment smd led display factory
-
digit height:
-
0.20 inch
-
segment color:
-
white diffused
-
surface color:
-
grey surface
-
emitting color:
-
red,yellow,green,blue,etc
-
OEM:
-
Yes
-
Polarity:
-
Common Anode or Common Cathode
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LED
-
Color:
-
red,white,green,blue
-
Panel Size:
-
12*10*3mm, 12*10*3mm
-
Place of Origin:
-
China
-
Color Depth:
-
red, red
-
HS Code:
-
853120000
-
name:
-
0.2" 7 segment smd led display factory
-
digit height:
-
0.20 inch
-
segment color:
-
white diffused
-
surface color:
-
grey surface
-
emitting color:
-
red,yellow,green,blue,etc
-
OEM:
-
Yes
-
Polarity:
-
Common Anode or Common Cathode

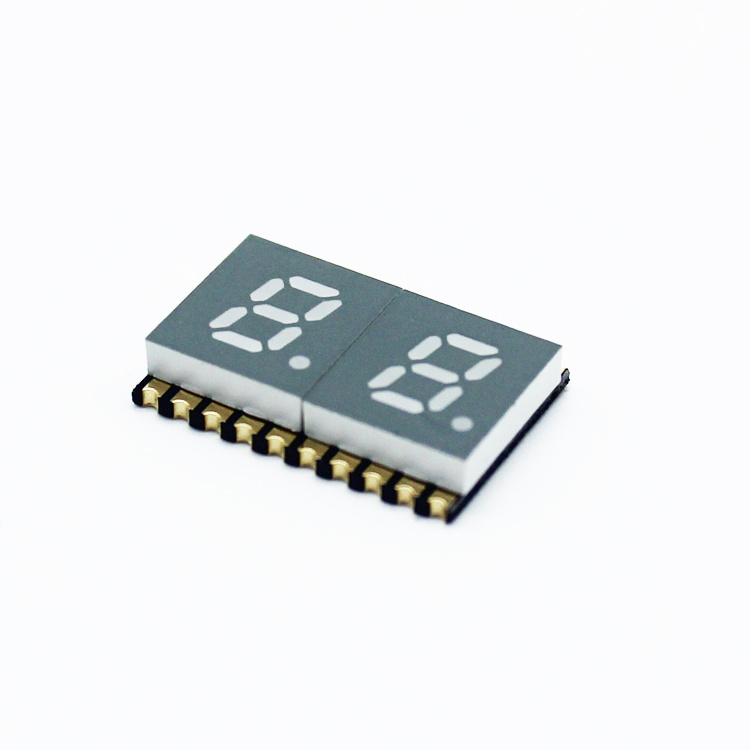

Two Digits 0.2 inch 7 segment 2 digit smd led display
*Ultra segment intensity
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant
two digits seven segment 0.2 inch 7 segment smd led display
Electro/Optical Characteristics If=20mA Ta=25 C
|
Part Number |
EMITTED COLOR |
Peak Wavelength (mn) |
Vf(V) |
Iv( mcd ) |
|||
|
Common Cathode |
Common Anode |
Type |
Max |
Min |
Typ |
||
|
JSS-2022AUR |
JSS-2022BUR |
AlGaInP/GaAs Super red |
630 |
2.0 |
2.5 |
10 |
20 |
|
JSS-2022AUE |
JSS-2022BUE |
AlGaInP/GaAs Ultra red |
625 |
2.0 |
2.5 |
40 |
80 |
|
JSS-2022AUA |
JSS-2022BUA |
AlGaInP/GaAs Ultra Amber |
605 |
2.0 |
2.5 |
40 |
60 |
|
JSS-2022AUY |
JSS-2022BUY |
AlGaInP/GaAs Ultra Yellow |
590 |
2.0 |
2.5 |
40 |
60 |
|
JSS-2022AUG |
JSS-2022BUG |
AlGaInP/GaAs Yellow Green |
574 |
2.0 |
2.5 |
10 |
15 |
|
JSS-2022APG |
JSS-2022BPG |
InGaN/Sic Pure Green |
525 |
3.2 |
3.8 |
150 |
200 |
|
JSS-2022AUB |
JSS-2022BUB |
InGaN/Sic Ultra Blue |
470 |
3.2 |
3.8 |
40 |
50 |
|
JSS-2022AUW |
JSS-2022BUW |
InGaN/Sic Ultra White |
x-0.31/y-0.31 |
3.2 |
3.8 |
200 |
400 |
two digits seven segment 0.2 inch 7 segment smd led display
Absolute Maximum Ratings at Ta=25 ℃
Characteristic |
Symbol |
UR |
UE |
UA |
UY |
UG |
PG |
UB |
UW |
Unit |
|
Pulse Forward Current Per Seg. |
I FP |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
mA |
|
DC Forward Current Per Seg |
I F |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
mA |
|
Reverse Current Per Seg. |
I R |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
uA |
|
Power Dissipation |
P D |
36 |
40 |
42 |
42 |
44 |
66 |
66 |
66 |
mA |
|
Operation Temperature |
T OPR |
-40 to +80 |
℃ |
|||||||
|
Storage Temperature |
T STG |
-40 to +85 |
℃ |
|||||||
|
Lead Soldering Temperature |
|
260 |
℃ |
|||||||
Products detailed picture
Our main is to help customer reach their goals.We are making great efforts to achieve their win-win situation and sincerely welcome you to join us.
Welcome to visit our factory.
For more details or free samples testing,please "send" now
