Quick Details
-
Brand Name:
-
Cowell/OEM
-
Model Number:
-
FMC Series
-
Size:
-
2'' 3'' 4''
-
Flow Range:
-
38-380/75-750/150-1500
-
Max.Working Pressure:
-
150PSI
-
Accuracy:
-
±0.2%
-
Repeatability:
-
0.07%
-
Packaging:
-
59*34*57cm
Quick Details
-
Type:
-
positive displacement flow meter
-
Warranty:
-
2 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Cowell/OEM
-
Model Number:
-
FMC Series
-
Size:
-
2'' 3'' 4''
-
Flow Range:
-
38-380/75-750/150-1500
-
Max.Working Pressure:
-
150PSI
-
Accuracy:
-
±0.2%
-
Repeatability:
-
0.07%
-
Packaging:
-
59*34*57cm
Diesel Fuel PD Rotary Vane Flow Meter For Carse
FMC Series Positive Displacement Gravity Flow Meter
|

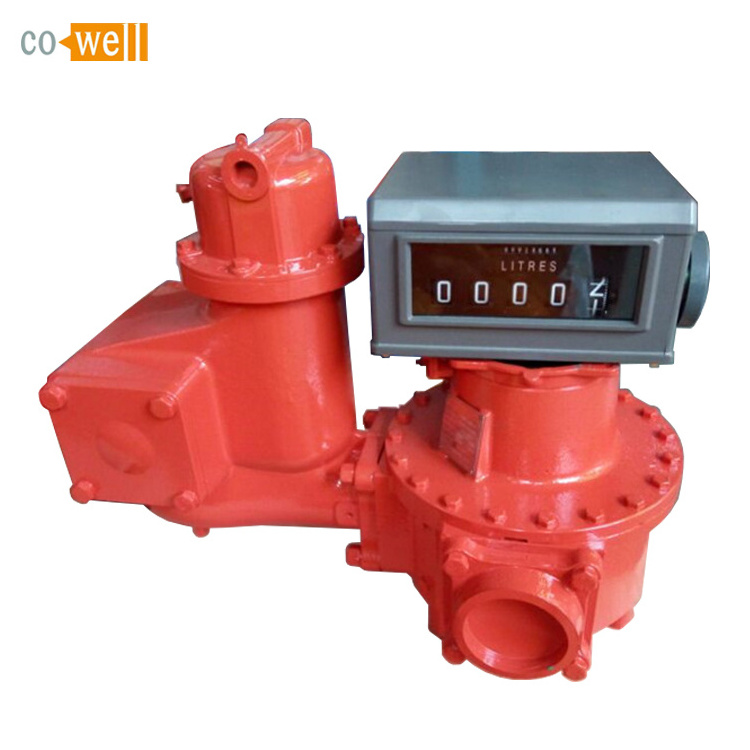

FMC-50 Meter with Register, Strainer & Air Eliminator |
Characteristics
|
|
| • |
FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters.
|
|
| • |
Superior accuracy and metering for a wide range of products, such as, gasoline, kerosene, fuel oils etc..
|
|
| • |
Compact, versatile design can be readily fit into nearly all installations.
|
|
| • |
Low pressure drop meter results in low meter slippage and thus superior meter accuracy.
|
|
| • |
Long service life, low friction ball bearings, fixed cam-type timing, and rugged construction give sustained accuracy and long time operation.
|
|
|
FMC-100 Meter with Register,
Strainer & Air Eliminator
|
Construction
|
|
|
|
FMC-50 Preset Meter with Register,
|
Application
|
|
Model No. Description
|
Inlet & Outlet Installation
|
|
Technical Specification |
|||
|
Model |
FMC-50 |
FMC-80 |
FMC-100 |
|
Size |
50mm/2" |
80mm/3" |
100mm/4" |
|
Flow Range(L/min) |
38-380 |
75-750 |
150-1500 |
|
Max.Working Pressure |
150PSI |
||
|
Accuracy |
±0.2% |
||
|
Repeatability |
0.07% |
||
|
Packaging Data |
|||
|
Model |
FMC-50 |
FMC-80 |
|
|
Packaging |
1pc/wooden case |
||
|
Net Weight |
42kgs |
63kgs |
|
|
Gross Weight |
57kgs |
70kgs |
|
|
Size |
59×34×57cm |
59×34×57cm |
|
|
2" Air Eliminator & Strainer |
4" Air Eliminator & Strainer |
2" Preset Valve |
Automotive; Adhesives; Agriculture; Asphalt ; Aviation fueling ; Animal feeds; Beverage; Cosmetics ;Chemical processing; Concrete Add mixtures; Dairy; Liquid fertilizers; Food processing ; Fuel oil delivery; General industrial; Hydrocarbon processing; Liquefied gases; Lube oils; Marine; Paint and varnish; Petroleum marketing; Petroleum production ; Pharmaceutical; Printing ink; Pulp &paper;Refining commercial Solvents; Recycling Railroad ; Textile.
