Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
220v 50hz/60hz
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HONGFA
-
Dimension(L*W*H):
-
1200*700*1550mm
-
Weight:
-
180 KG
-
Name:
-
juice filling packing machine
-
Capacity:
-
2000-24000bph
-
Material:
-
stainless steel
-
brand:
-
HONGFA
-
After-sales Service Provided:
-
Overseas service center available
-
filling range:
-
50ml-500ml
-
Product name:
-
juice filling machine
-
Filling nozzles:
-
8 nozzle
-
Usage:
-
juice milk filling and packing
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Beer, Milk, Water, Oil
-
Filling Accuracy:
-
99%
-
Voltage:
-
220v 50hz/60hz
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HONGFA
-
Dimension(L*W*H):
-
1200*700*1550mm
-
Weight:
-
180 KG
-
Name:
-
juice filling packing machine
-
Capacity:
-
2000-24000bph
-
Material:
-
stainless steel
-
brand:
-
HONGFA
-
After-sales Service Provided:
-
Overseas service center available
-
filling range:
-
50ml-500ml
-
Product name:
-
juice filling machine
-
Filling nozzles:
-
8 nozzle
-
Usage:
-
juice milk filling and packing
HFPZD-B 2000-3500BAGS/HR Juice bag packing machine (8nozzle)
Application:
1--HFPZD-B used for packing various kinds of bags: fruit shape bag, bottle shape bag, spout bag, straw bag etc, Also can filling stand up pouch without spout or with spout
2--This machine can pack any liquid such as juice, yogurt, water, jelly, soymilk, cooking oil, liquid soap etc. also used for semi-fluid liquid, for example, tomato sauce, jam and so on.
3-- 8 nozzles,high speed max 3000bags/hour.(different size bag with different speed.)
4-- Touch screen PLC computer control system, very easy operation.
6--This is our patent machine number is ZL 2011 2 0170003.1
Function and characteristics
1--Easy to operate,High quality PLC with PIC, mate with touch screen and electric control system, the man- machine interface is friendly.
2--Automatic quantitive filling and control liquid level.
3--Adjustment filling volume and all the things from PLC
4--The whole machine adopts stainless steel material and international brand parts according to the food hygienic requirements, guarantee hygiene and security of the food.
5--The machine adopts big capacity, high intensity, stably to operate, easy to maintain, long service life.
Main technical parameter
| Name | Filling machine |
| Type | HFPZD-B |
| Size | 1200*700*1550mm |
| Weight | 180kg |
| Capacity | 50-500ml/bag(can be special customized) |
| Efficiency | 2000-3500bags/hour(according to bag capacity) |
| Power | 1.2-1.6kw |
| Power supply | 220V 50Hz |
| Source | 0.3-0.5m³/min 0.8mpa |
| use | liquid food |
| packing type | plastic pouch with spout but not have cap |

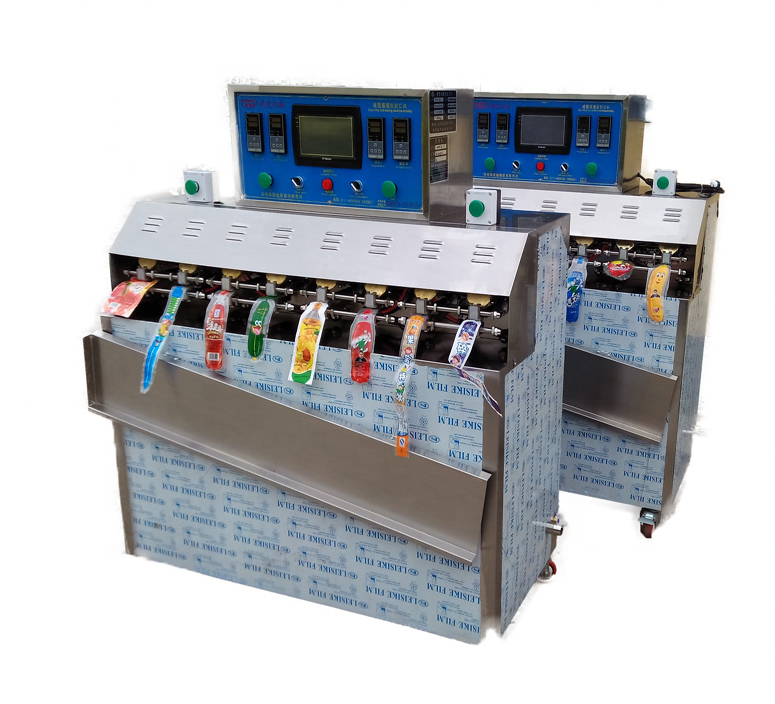

The pictures:
...
