Quick Details
-
Model Number:
-
JJ-PKM-A01
-
Input voltage:
-
220V+/-10% 50Hz
-
Motor's voltage:
-
DC24V
-
Gate weight:
-
22 KG
-
Max thrust:
-
600N
-
Lift head:
-
0-150mm
-
Components:
-
2motors,2remote control.1control box.2Limit magnets,2Push lock
-
OEM&ODM:
-
Approved
-
Usage:
-
Iron gate, wooden gate, villa gate
-
CE,Patent,ISO:
-
Approved
-
Working temperature:
-
-35°C~+55°C
Quick Details
-
Type:
-
Automatic Door Operators
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GIANT
-
Model Number:
-
JJ-PKM-A01
-
Input voltage:
-
220V+/-10% 50Hz
-
Motor's voltage:
-
DC24V
-
Gate weight:
-
22 KG
-
Max thrust:
-
600N
-
Lift head:
-
0-150mm
-
Components:
-
2motors,2remote control.1control box.2Limit magnets,2Push lock
-
OEM&ODM:
-
Approved
-
Usage:
-
Iron gate, wooden gate, villa gate
-
CE,Patent,ISO:
-
Approved
-
Working temperature:
-
-35°C~+55°C

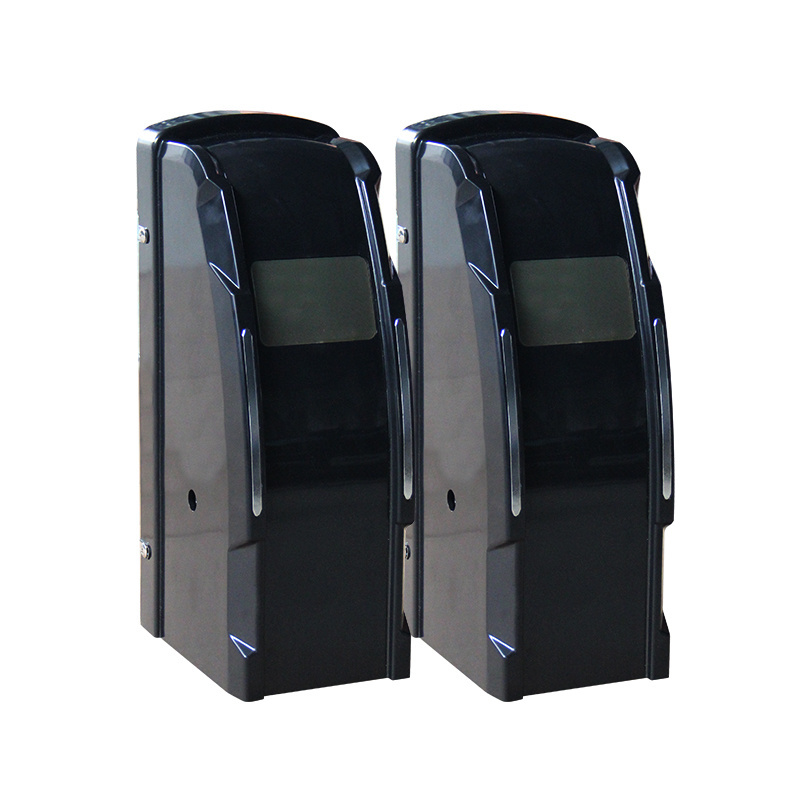

High Quality Automatic Gate Opener
Features
Floating plate for automatic height adjustment of 10cm to fit uneven ground surface
Super quick manually release with secure customized key in case of power failure
Adjustable opening/closing interval time of double gate leaves
Auto-stop if any obstacles detected during operation
Built in max motor running time adjustable for multiple safety protection
Single leaf or double leaves operation
Easy installation and low maintenance
12 months guarantee;life long post sales service
Technical data
|
Power supply |
220V/110V |
|
Motor power |
24VDC 100W*2 |
|
Max.Trust |
600N |
|
Working speed |
2.4CM/S |
|
Max.Ground Height Adjustment |
100MM |
|
Max single Leaf width |
5M |
|
Max single leaf weight |
400KG |
|
Working Temperature |
-20℃~ 50 ℃ |
|
Protection class |
IP55 |
Wheel drive kits offer solutions to the following gate positions:
When the gate or gates are tight against a wall or house
If the opening is into a open area or country yard and your require an opening angle up to 180 degrees.
Used for a long and heavy gate wings on a hard surface
Control board :
EG-20 control panel work for swing gate opener
Voltage :DC24V
Frequency: 433.92MHZ
Wireless mode: ASK
MemoryCapacity :Can match
30 remote controls
at most
Features :
1. Single-button cycling working.
2. Time protection to ensure safety of motor.
3. Auto-closing delay.
4.
Terminals for loop detector,photocell,card-reader
etc.
5. Choose to operate single leaf or double leaves separately.
6. Custom rolling code systems makes the systems more secure.
7. Available to
connect the 12V DC back-up battery
.
Our service:
7*24 online EMAIL service!
1.We are Alibaba Assessed 9 years Gold Supplier.
2.We are a factory manufacturing of swing gate opener , sldiing gate opener , barrier gate ,remote control ,control panel , best production capability , best quality control, Best Service .
3.We have export license declaration
4. Our remote control and control panel also product by ourselves .We are professional both on eletronic part and mechanical part ,can give better service after sellings.
