Quick Details
-
Work Range:
-
13~118mm
-
Max.bending angle:
-
180°
-
Weight Bracket:
-
110kg
-
Type:
-
HHW-1
-
Name:
-

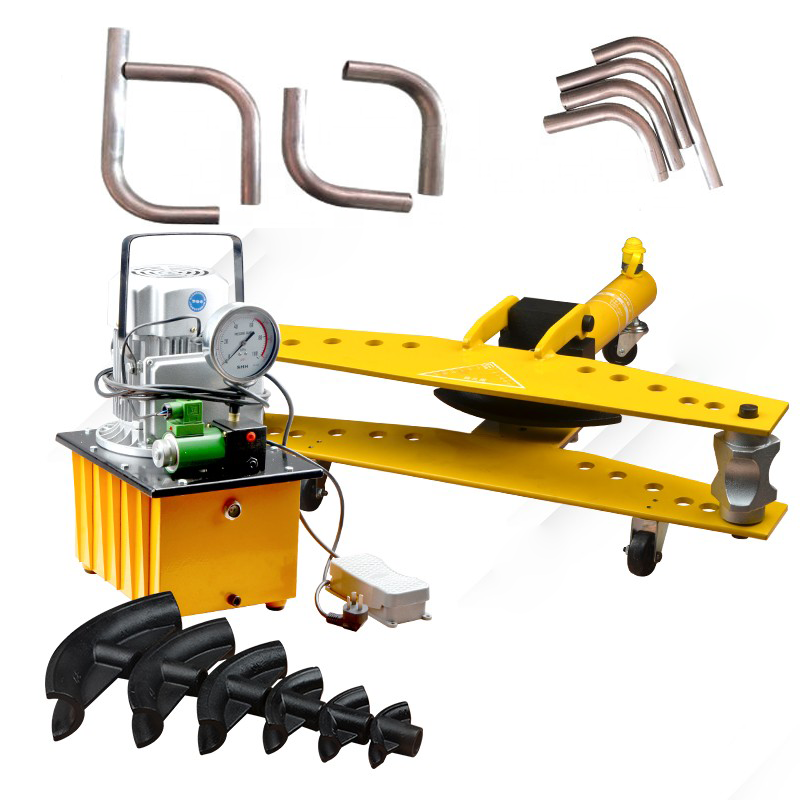

Hand Pipe Bender
-
Product Name:
-
Manual Tubing Pipe Benders
-
Capacity:
-
12T
-
Material:
-
Ductile Iron
-
Hydraulic system pressure:
-
12Mpa
Quick Details
-
Warranty:
-
1 Years
-
Place of Origin:
-
Henan, China
-
Package:
-
Wooden Case
-
Work Range:
-
13~118mm
-
Max.bending angle:
-
180°
-
Weight Bracket:
-
110kg
-
Type:
-
HHW-1
-
Name:
-
Hand Pipe Bender
-
Product Name:
-
Manual Tubing Pipe Benders
-
Capacity:
-
12T
-
Material:
-
Ductile Iron
-
Hydraulic system pressure:
-
12Mpa
Describing & Application
| Modelr | SWG-1 | SWG-2 | SWG-3 | SWG-4 | SWG-5 |
| pressure | 10T | 16T | 18T | 21T | 21T |
| working stroke | 170mm | 250mm | 320mm | 420mm | 420mm |
| thickness of pipe | 2-3.5mm | 2.75-5mm | 2.75-6mm | 2.75-6mm | 2.75-6mm |
| texture of material | nodular cast iron | nodular cast iron | nodular cast iron | nodular cast iron | nodular cast iron |
| Weight | 20kg | 48kg | 98kg | 137kg | 186kg |
| Sizeofstangard dies | SWG-1 | 13mm/16mm/19mm/22mm/28mm/34mm(six) | |||
| SWG-2 | 22mm/28mm/34mm/42mm/48mm/60mm(six) | ||||
| SWG-3 | 22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm(eight) | ||||
| SWG-4 | 22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm/108mm(nine) | ||||
| SWG-5 | 22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm/108mm/114mm(ten) | ||||
|
The outer diameter of the die corresponds to the size and wall thickness
|
|||
| Model diameter | Nominal diameter | Min Wall-thickness | Specification name |
| φ10mm | DN6 | 2mm | 1/8" |
| φ13mm | DN8 | 2mm | 1/4" |
| φ16mm | DN10 | 2mm | 5/16" |
| φ19mm | DN15 | 2.5mm | 3/8" |
| φ22mm | DN15 | 2.75mm | 1/2" |
| φ25mm | DN20 | 2.75mm | 3/4" |
| φ28mm | DN20 | 2.75mm | 3/4" |
| φ34mm | DN25 | 3.25mm | 1" |
| φ42mm | DN32 | 3.25mm | 1-1/4" |
| φ48mm | DN40 | 3.5mm | 1-1/2" |
| φ60mm | DN50 | 3.5mm | 2" |
| φ75.5mm | DN65 | 3.75mm | 2-1/2" |
| φ89mm | DN80 | 4mm | 3" |
| φ108mm | DN100 | 4.5mm | 4" |
| φ114mm | DN100 | 5mm | 5" |
|
If there is no corresponding mold, you can select a slightly larger mold size (for example, 32mm,34mm) and check it according to the corresponding mold size. Check whether the wall thickness is suitable (wall thickness with big 0.5 or small 0.5) suitable for international general A series British tube and domestic use B series metric tube |
|||
Product details
Parking & Shipping
|
The outer diameter of the die corresponds to the size and wall thickness
|
|||||
| Modelr | SWG-1 | SWG-2 | SWG-3 | SWG-4 | SWG-5 |
| Size(mm) | 660X350X200 | 730x350x200 | 800x350x250 | 890*400*280 | 980*400*320 |
| Weight | 20kg | 48kg | 98kg | 137kg |
186kg |
|
