Quick Details
-
Size:
-
12.4m*2.61m*1.55m (Outside)
-
Type:
-
Semi-trailer
-
Product name:
-
Flatbed Container Semi Trailer
-
Material:
-
Steel
-
Tire:
-
12R22.5
-
Color:
-
Customised
-
Axle:
-
13 tons FUWA Axles
-
Suspention:
-
Mechanical Suspention
-
Capacity (Load):
-
50kg
-
Trailer Chassis:
-
Steel Structure
-
Certificate:
-
ce
Quick Details
-
Max Payload:
-
50tons
-
Brand Name:
-
JianXing
-
Place of Origin:
-
Shandong, China
-
Size:
-
12.4m*2.61m*1.55m (Outside)
-
Type:
-
Semi-trailer
-
Product name:
-
Flatbed Container Semi Trailer
-
Material:
-
Steel
-
Tire:
-
12R22.5
-
Color:
-
Customised
-
Axle:
-
13 tons FUWA Axles
-
Suspention:
-
Mechanical Suspention
-
Capacity (Load):
-
50kg
-
Trailer Chassis:
-
Steel Structure
-
Certificate:
-
ce
JianXing Factory provide 4 Axles 13m 40ft 60tons 12 twist Locks Flatbed Trailer Flatbed Container Chassi Trailers

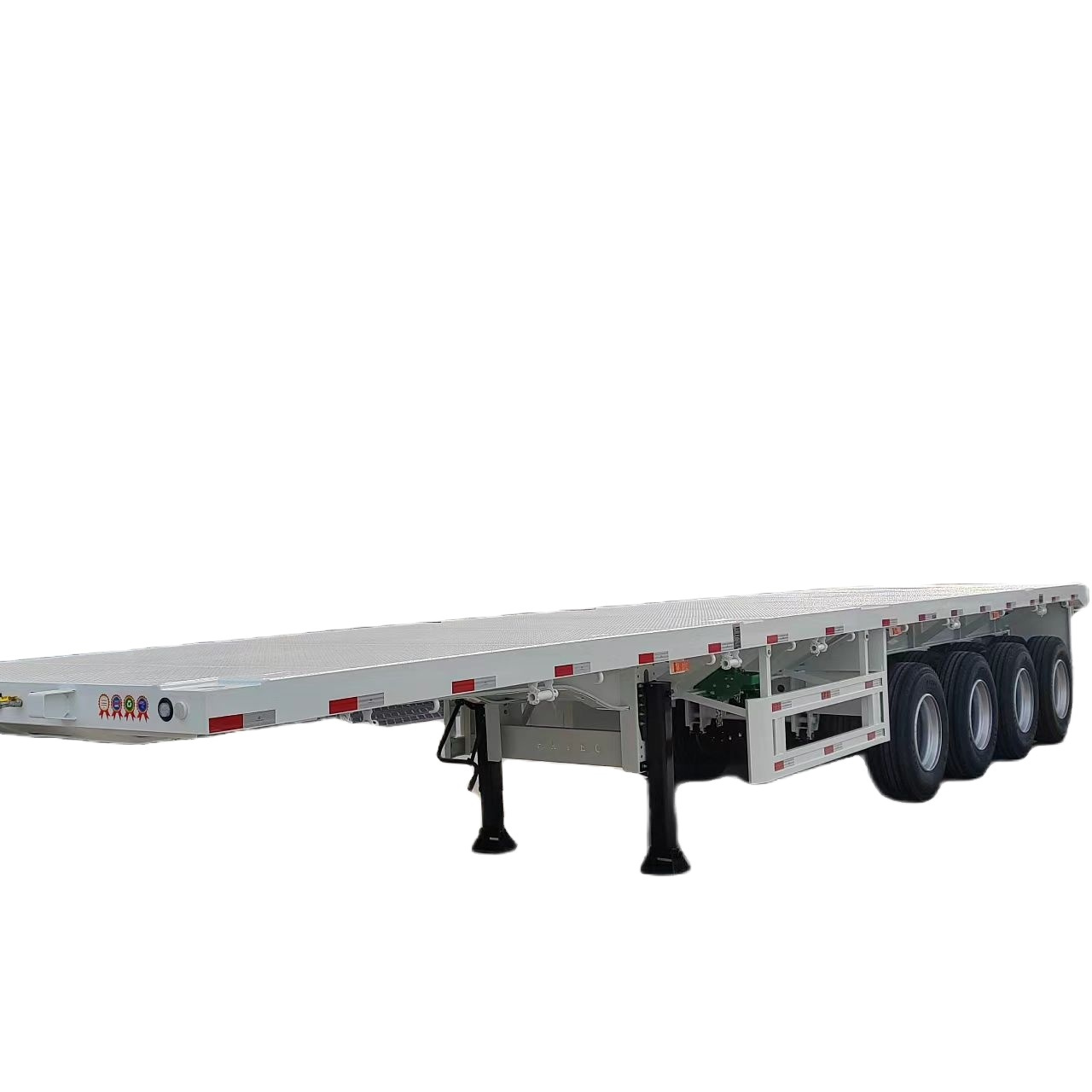

JIANXING Flatbed Trailer
for transport of long rails, pipes, 40ft container, 20ft container or other bulk cargo and the trailer can carry 40ft container or 20ft container. We will also provide the most professional service to our customer.we put these trailers in one container,which will save much shipping cost for our customer.
According to the length, we can also offer the 45ft 48ft 53ft, 2axles/3axles/4axles, the color can also be customized.
Semi Trailer Flatbed 4-axles 40ft
|
Trailer Model
|
Flatbed Trailer
|
|
|
Overall dimension
|
12500 *2500 * 1550mm((According to customer demand))
|
|
|
Tare Weight
|
5T--11T
|
|
|
Loading Weight
|
30-70T
|
|
|
Axle
|
13T/16T/20T BPW or FUWA
|
|
|
Wheelbase(mm)
|
6780+1310+1310 or other
|
|
|
Suspension system
|
Mechanical Spring or Air Suspension System
|
|
|
Steel Spring
|
90(W)mm*13(Thick)mm*10 Layer
|
|
|
Frame
|
Height: 450mm-520mm,
|
|
|
|
upper plate thickness is 16mm-25mm,
|
|
|
|
middle plate thickness is 8mm-12mm,
|
|
|
|
down plate thickness is 16mm-25mm;
|
|
|
|
Heavy duty and extra durability designed;
|
|
|
|
Opting for high tensile steel Q345B welded by
|
|
|
|
automatic Submerged-Arc processes Height I beam.
|
|
|
Tire Type
|
12R22.5, 11.00R20, 12.00R20, 315/80R22.5
|
|
|
Rim
|
6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20/9.0-20
|
|
|
Twist Locks
|
12 units (lifting type or Twist Screw Type) Optional locks for loading containers
|
|
|
Traction Pin
|
2” or 3.5”
|
|
|
Spare Wheel Bracket
|
2 sets(Patent type)
|
|
|
Tool Box
|
2 sets(waterproof type)
|
|
|
Landing Leg
|
heavy duty 28ton landing leg
|
|
|
Brake system
|
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber
|
|
|
|
One piece of 45L air tanks
|
|
|
Brake air chamber
|
Six double chamber
|
|
|
|
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
|
|
|
|
Tail lamp with turn signal, brake light & reflector,side lamp etc.
|
|
|
Electrical system
|
One set 6-core standard Cable.
|
|
|
Painting
|
Sandblasting, rust prevention, two primer, two finish
|
|
|
Shipping Terms
|
By bulk cargo carrier, RORO or 40HQ container.
|
|
|
We can provide all the models you need and support customization. Please leave your inquiry if you have any questions.
|
|
|
Details Images
Main Feature - JIANXING Flatbed Trailer
1. We use high-strength steel to manufacture the flatbed trailer, which can make the flatbed trailer have higher carrying capacity and longer service life.
2. In order to ensure the service life of the flatbed semi trailer, all the spare parts we use are world famous brands.
3 .The trailer floor is also a lattice board, which will make other bulk cargo more stable, such as bags, or long things.
4. The flatbed semi-trailer adopts 13 tons of axles, 16 tons of 220 mm wide brake pads, and the braking performance is improved by 20%
5. High quality container lock to ensure the stability and safety of the load.
2. In order to ensure the service life of the flatbed semi trailer, all the spare parts we use are world famous brands.
3 .The trailer floor is also a lattice board, which will make other bulk cargo more stable, such as bags, or long things.
4. The flatbed semi-trailer adopts 13 tons of axles, 16 tons of 220 mm wide brake pads, and the braking performance is improved by 20%
5. High quality container lock to ensure the stability and safety of the load.
1.Factory direct sale
2.Our products can be customized for various needs.And customize unique company logo is available.
3.Cutting edge automation equipment adopted in the factory.Steel is welded by automatic submerged arc process, connection spots look more flawless, more solid and durable compared with traditional manual ways.
4.Cover painting is more sustainable, corrosion-resistant, uniform and smooth, using sand blasting powder painting process
Jianxing Green Cattle International (Shandong) Co., Ltd. was established in 2021 in Jinan by Shandong Yuncheng Jianxing Special Vehicle Manufacturing Co., Ltd. Our company is located in Wanda Plaza in the Jingsi Road in the center of Jinan City.
At present ,the company mainly sells container skeleton semi trailer, container flat semi trailer, cargo trailer, fence semi trailer, various series semi trailer,full trailer, van, car transport vehicle manufactured by Shandong Yuncheng Jianxing Special Vehicle Manufacturing Co., Ltd. There are more than 40 kinds of products and the weight of vehicles from 8 to 120 tons. In addition, Jianxing Green Cattle International (Shandong) Co., Ltd. to undertake special vehicle modification design business. The company' s products are exported to all over the world, such as southeast Asia, Central Asia, the Middle East, Africa and so on.
Our company is led by a professional manager who have been in the same industry for more than 15 years. So we have a perfect training mechanism, perfect foreign trade process, reasonable risk aversion rules, rich foreign trade business experience.
The company' s philosophy is concentric share with win-win, grateful for you and the service attitude is every trust must not be disappointed. Welcome partners from all over the world to visit and negotiate business with us.
Laser cutting, plasma cutting :
The material to be cut is irradiated with a high power density laser beam, so that the material is quickly heated to the vaporization temperature, and evaporates to form a hole. As the beam moves to the material, the hole continuously forms a narrow slit to complete the cutting of the material.
Fixed height spot welding - manual welding
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Warmly Welcome to china and visit our factory !
We have professional team to package the flatbed trailer for sale to save shipping cost for our customers.
Up to 3 flatbed trailers can be packed together. In this way, we can minimize the volume of the trailer and the flatbed trailer prices, thus saving ocean freight. Meanwhile, you only need one tractor to transport 3 flatbed trailers to your company.
If you buy two flatbed trailer together, we can put them in one container.The advantage of container transportation is that the shipping schedule of containers is relatively stable, there is a container ship to each port every week, you can receive the goods as soon as possible.
Up to 3 flatbed trailers can be packed together. In this way, we can minimize the volume of the trailer and the flatbed trailer prices, thus saving ocean freight. Meanwhile, you only need one tractor to transport 3 flatbed trailers to your company.
If you buy two flatbed trailer together, we can put them in one container.The advantage of container transportation is that the shipping schedule of containers is relatively stable, there is a container ship to each port every week, you can receive the goods as soon as possible.
