Quick Details
-
Product Name:
-
NE-380DS
-
Holding Force:
-
2*380kg(2*800Lbs)
-
Rated Operating Voltage:
-
DC 12/24V
-
Current consumption:
-
500mA/250mA
-
Optional Functions:
-
LED, Relock Delay Timer, Buzzer
-
Surface finish for magnet:
-
Zinc plated
-
Ambient temperature in °C:
-
-10~+55℃(14-131F)
-
Magnets Dimensions(L x W x D):
-
570Lx55Wx29H(mm)
-
Armature Plate Dimensions(L x W x D):
-
190Lx45Wx11H(mm)
-
Weight in kg:
-
5.4kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Nordson
-
Model Number:
-
NE-380DS
-
Product Name:
-
NE-380DS
-
Holding Force:
-
2*380kg(2*800Lbs)
-
Rated Operating Voltage:
-
DC 12/24V
-
Current consumption:
-
500mA/250mA
-
Optional Functions:
-
LED, Relock Delay Timer, Buzzer
-
Surface finish for magnet:
-
Zinc plated
-
Ambient temperature in °C:
-
-10~+55℃(14-131F)
-
Magnets Dimensions(L x W x D):
-
570Lx55Wx29H(mm)
-
Armature Plate Dimensions(L x W x D):
-
190Lx45Wx11H(mm)
-
Weight in kg:
-
5.4kg

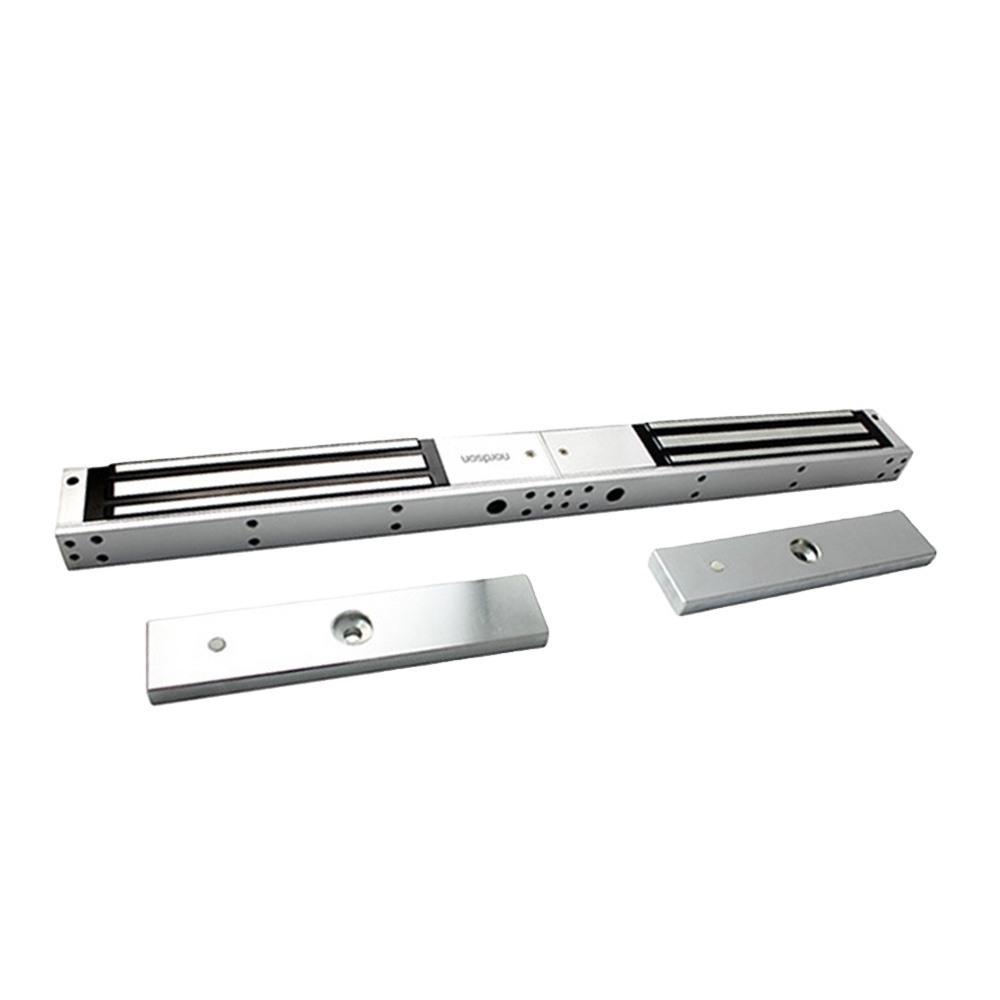

Super holding force EM Lock double magnetic door lcok Electronic lock
NE-380D double door magnetic lock,specially used to normal glass door,wodden door,metal door,fire doors,and all kinds of door.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
Features:
1). NE-380D (Without indicator lights)
2). Voltage:DC12V or DC24V (adjustable)
3).Current Draw: 12V/480mAx2 24V/240mAx2
4).Holding Force: Single side 380kg (800lbs)
5).Lock Size: 570Lx49Wx29H(mm)
6).Armature plate: 190Lx39Wx11H(mm)
7).Signal Output: Dry Contact,Max Rating of Contact Current 3A
8).LED indicates the door is unlock,Green indicates the door is lock
9).Time: 0/3/6/9sec
10).Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
11).Surface Temp: ≤+20°C
12).Operating Temp: -10~+55°C(14-131F)
13).Suitable Humidity: 0~90%(non-comdensing)
14).Finishes for Shell: Anodized aluminum&surface texture processing
15).Finishes for Magnetic: Zinc
16).Finishes for Armature: Zinc
17).Weight: 5kg
Quality guarantee: Warranty for three years, maintenance forever, change within 3 months be cause of product quality.
Except for human activities
For the non-human factors of product quality issues, NORDSON Electromagnetic Lock enjoy a three-year warranty services, Access Control Panel ,electric bolt and electric strike are 2 years, exit button, bracket , and power supply will be 1 year . The customers will be in charge of the material and the maintain fees if the product damage under other conditions
According to the different holding force this series include 4 series: NE-180D/180DS/180DST, NE-280D/280DS/280DST, NE-380D/380DS/380DST and NE-600D/60DS/600DST.
Packaging: Neutral Package.
Shipping: Small quantity within 1-5 work days after receipt of remittance, large quantity within 14 work days after receipt of remittance.
