Quick Details
-
Model Number:
-
CJL-500
-
Power:
-
As Requirements
-
Material:
-
Standard Packaging
-
Marketing Type:
-
Hot Product 2022
-
Weight (KG):
-
14500 kg
-
Application:
-
Waste Battery Recycling Machine
-
Raw material:
-
Cylindrical Battery, Phone Battery, Car Battery, Soft Package Battery
-
Final product:
-
Mainly Copper, Aluminum, Lithium Cobalt Oxide,graphite powder
-
Keywords:
-
Battery Recycle Machine
-
Color:
-
Customized Color
-
Feature:
-
Easy Operation; High Seperation Ratio
Quick Details
-
Production Capacity:
-
500 KG/H
-
Place of Origin:
-
Henan,China
-
Brand Name:
-
ChengJinlai
-
Model Number:
-
CJL-500
-
Power:
-
As Requirements
-
Material:
-
Standard Packaging
-
Marketing Type:
-
Hot Product 2022
-
Weight (KG):
-
14500 kg
-
Application:
-
Waste Battery Recycling Machine
-
Raw material:
-
Cylindrical Battery, Phone Battery, Car Battery, Soft Package Battery
-
Final product:
-
Mainly Copper, Aluminum, Lithium Cobalt Oxide,graphite powder
-
Keywords:
-
Battery Recycle Machine
-
Color:
-
Customized Color
-
Feature:
-
Easy Operation; High Seperation Ratio
|
Lithium Ion Battery Recycling Manufacture
|
|
|
|
|
||||
Product Description
BRIEF INTRODUCTION:
Lithium battery mainly consists of
shell, positive electrode, negative electrode, electrolyte and diaphragm.
The positive electrode is formed by coating lithium cobaltate powder on two sides of an aluminum foil current collector through PVDF which plays a bonding role; The negative electrode structure is similar to the positive electrode and consists of carbon powder bonded to both sides of the copper foil current collector.
Scrap Lithium battery recycling machine can separate the base metals and graphite powder from the battery by mechanical method. The whole scrap lithium battery recycling plant process is
totally dry and eco-friendly.
Advantages of lithium battery crushing and recycling equipment:
1. Raw materials can be directly fed without prior treatment
2. The control system is simple to operate, convenient to maintain and safe
3. The dry mechanical separation method is adopted, and the equipment is harmless in the later stage to reduce the environmental pollution
4. After the shredder is broken,
t
he material separation purity reaches above 98%
5. The lithium battery is broken and separated, realizing the recycling of copper, aluminum, graphite, lithium cobalate and other materials
Raw materials&final products

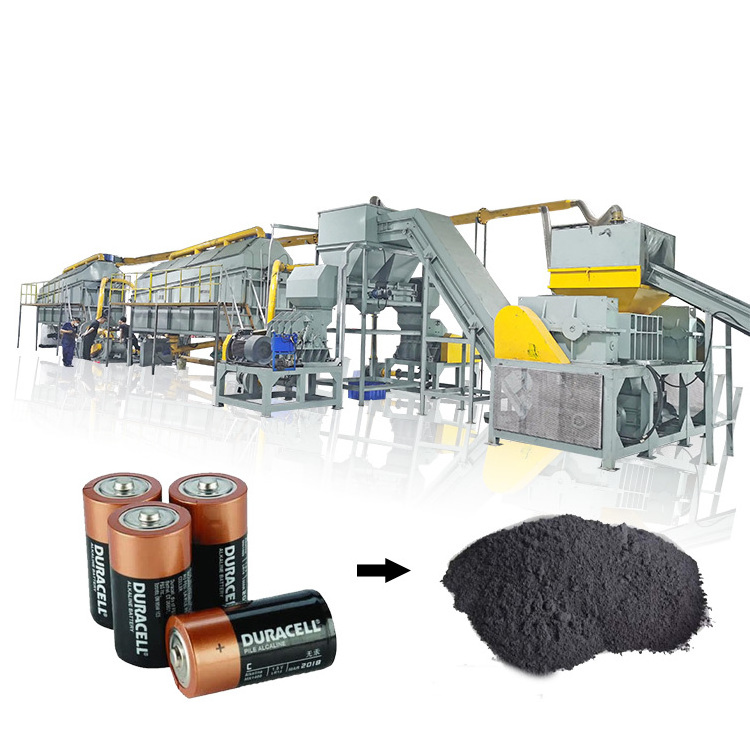

The Lithium Ion Battery Recycling Machine is used for dismantling and recycling the soft package battery, cellphone battery, shell battery, cylindrical battery etc.
Different types of lithium batteries have different recycling procedures
The final products of Battery Lithium Ion Battery Recycling Machine is
graphite powder, cobalt acid lithium,aluminum and copper.
Process flow
Lithium battery recycling separation process：
1. The lithium battery crushing and recycling equipment is sent to the primary crusher by the conveyor to crush the waste lithium battery.
2. The material is sent to the crusher for secondary crushing by conveyor, and the iron in the material is sorted out by the conveyor while the magnetic separation equipment is set.
3. Through the conveyor to the air separator, the separator paper in the positive and negative sheet is separated by the induction fan and the cyclone unloader, and the positive and negative sheet after separation is sent to the three-level crusher for fine crushing, and the material is broken to about 20 mesh.
4. Through the negative pressure system into the cyclone separator for dust filtration, different densities of materials through two air separation stratification, while all ultrafine dust through the negative pressure system into the pulse dust collector.
5. The filtered exhaust gas will continue to be sent by the negative pressure system to the exhaust gas treatment equipment for air purification, so that it meets the national emission standards and then discharged.
Shredder -- Hammer Crusher -- Grinder -- Separation Machine -- Pulse Dust Collector -- Classifying Screen -- Magnetic Machine --
Gravity Separator -- High-pressure Blower
Specification
|
WORKING PERFORMANCE
|
|
|
|
Raw Material
|
Lithium Battery
|
|
|
Final Product
|
Mainly Copper, Aluminum, Lithium Cobalt Oxide, Graphite Powder
|
|
|
Technical Parameters
|
|
|
|
Mold
|
Capaticy
|
|
|
CJL-300
|
300 kg/h
|
|
|
CJL-500
|
500kg/h
|
|
|
CJL-800
|
800 kg/h
|
|
|
CJL-1000
|
1000 kg/h
|
|
|
CJL-1500
|
1500 kg/h
|
|
|
CJL-2000
|
2000kg/h
|
|
|
Working voltage:380±10V
|
|
|
|
Feature Item
|
Indicator Requirments
|
|
Recovery Rate of Metallic Aluminum
|
>98%
|
|
Content of Powder In Metal Aluminum
|
>98%
|
|
Content of Metallic Aluminum In Powder
|
<2%
|
|
Other
|
<2%
|
|
Qualified Rate
|
Contain dust collecter with not pollute
|
|
Failure Rate
|
99%
|
|
Failure Rate
|
<1%
|
|
CMR
|
≥1.67
|
