Quick Details
-
Voltage:
-
380V
-
No Load Speed:
-
0.3m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TianYi
-
Model Number:
-
TY-200D
-
Control System:
-
Micro-computer programmed control
-
Wallboard&Roof Panel:
-
Red/Blue/White&According Your requirement
-
Air Fans:
-
3sets
-
Volume of wind turbine:
-
33000
-
Highest working tempearture:
-
80
-
Heating Time:
-
4-6min
-
Warranty Time:
-
1 year
-
Service Time:
-
Lifelong Maintenance
-
Size:
-
as you required
-
Color:
-
as you required
Quick Details
-
Power:
-
15 kw
-
External Size:
-
7000*5560*3430mm
-
Internal Size:
-
6900*4000*2800mm
-
Voltage:
-
380V
-
No Load Speed:
-
0.3m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TianYi
-
Model Number:
-
TY-200D
-
Control System:
-
Micro-computer programmed control
-
Wallboard&Roof Panel:
-
Red/Blue/White&According Your requirement
-
Air Fans:
-
3sets
-
Volume of wind turbine:
-
33000
-
Highest working tempearture:
-
80
-
Heating Time:
-
4-6min
-
Warranty Time:
-
1 year
-
Service Time:
-
Lifelong Maintenance
-
Size:
-
as you required
-
Color:
-
as you required

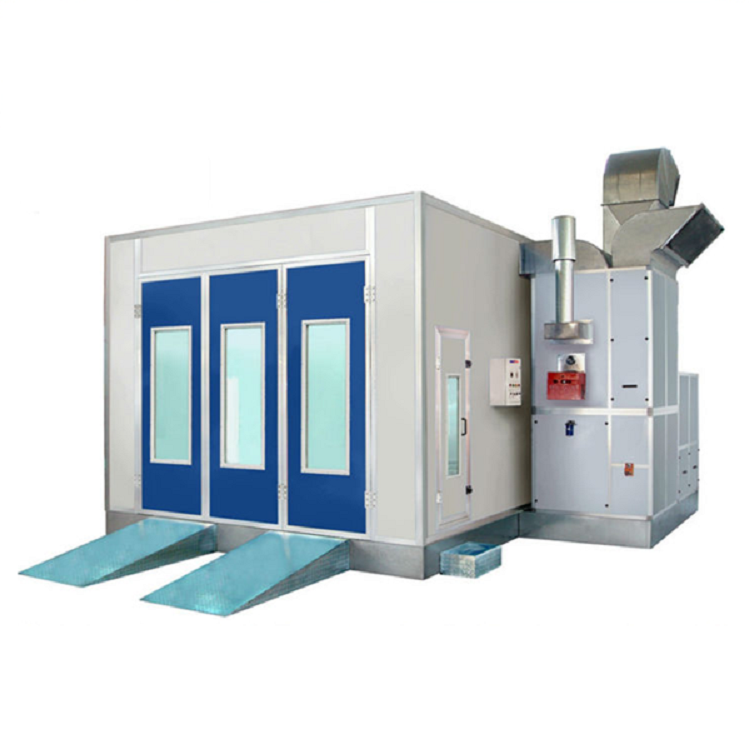

2018 New Products Paint Booth Portable/Car Bake/Auto Paint Dryer
Product Description
| Specification | ||||||||
| Outside Size:(mm) | 7000(L)*5560(W)*3430(H) | Front Door:(mm) | 3000(W)*2500(H) | |||||
| Inside Size:(mm) | 6900(L)*4000(W)*2800(H) | Total Power:(kw) | 17;380V/3phase/50Hz | |||||
| Cabin System | Wallboard | EPS colorful(gray,blue and red) steel skin panel,50mm thick,steel 0.4mm thick,tongue&groove style,anti-flame and heat-insulation, galvanized steel roof panel. | ||||||
| Front Door | 3-fold main doors,3000*2500mm(W×H),with safety glass windows, aluminum alloy frame, handle and lock. | |||||||
| Escape Door | 1 unit 700*1900mm(W×H), with safety glass windows, aluminum alloy frame,handle and high-pressure safty lock. | |||||||
| Basement | 300mm height metal-base.Galvanized steel sheet and square steel pipe assembling,2 rows of grid plates made by flat bar and round steel, 3 rows of embossed plates, galvanized. Two sets of galvanized ramps. | |||||||
| Air Circulation system | Intake Fan | 2*4KW | Exhaust Fan | 1*5.5KW | ||||
| Cabinet for the fans*1unit,Air Ducts*3pcs,Electric Damper(pneumatic)*1unit | ||||||||
| Filtering system | Pre-filter*1set,filtering rate>83%, Italy SF 700G high efficiency filter(ceiling filter) filtering rate>97%, floor filter(fiberglass filter) filtering>70%,activated carbon filter. Full galvanized grilled. | |||||||
| Water Based System |
Two sets 1.1Kw Internal Recycle Fan FanCapacity:3,000m³/h Nozzles:2×16 pcs, in 2 sides of lightings |
|||||||
| Heating System |
Italy Riello G20 Diesel Burner.Stainless steel heat exchanger,argon arc welding.5~10 minutes reaching the baking temperature 60°c~80c. 1 unit of cabinet(rock wool insulation) for the burner&heat exchanger; 2 pcs of air ducts |
|||||||
| Lighting system | Ceiling Lights: 8Units×4Pcs=32Pcs×40W, with electronic ballasts,power-coated light box. Side Lights: 8Units×2Pcs=16Pcs×30W, with electronic ballasts, vertically set,power-coated light box. | |||||||
| Controlling system | Micro-computer programmed controlling,Power switch,spray/baking switch, light switch,emergency stop,breakdown alarm. | |||||||
| Note | Any size! Any Structure! All possible! | |||||||
