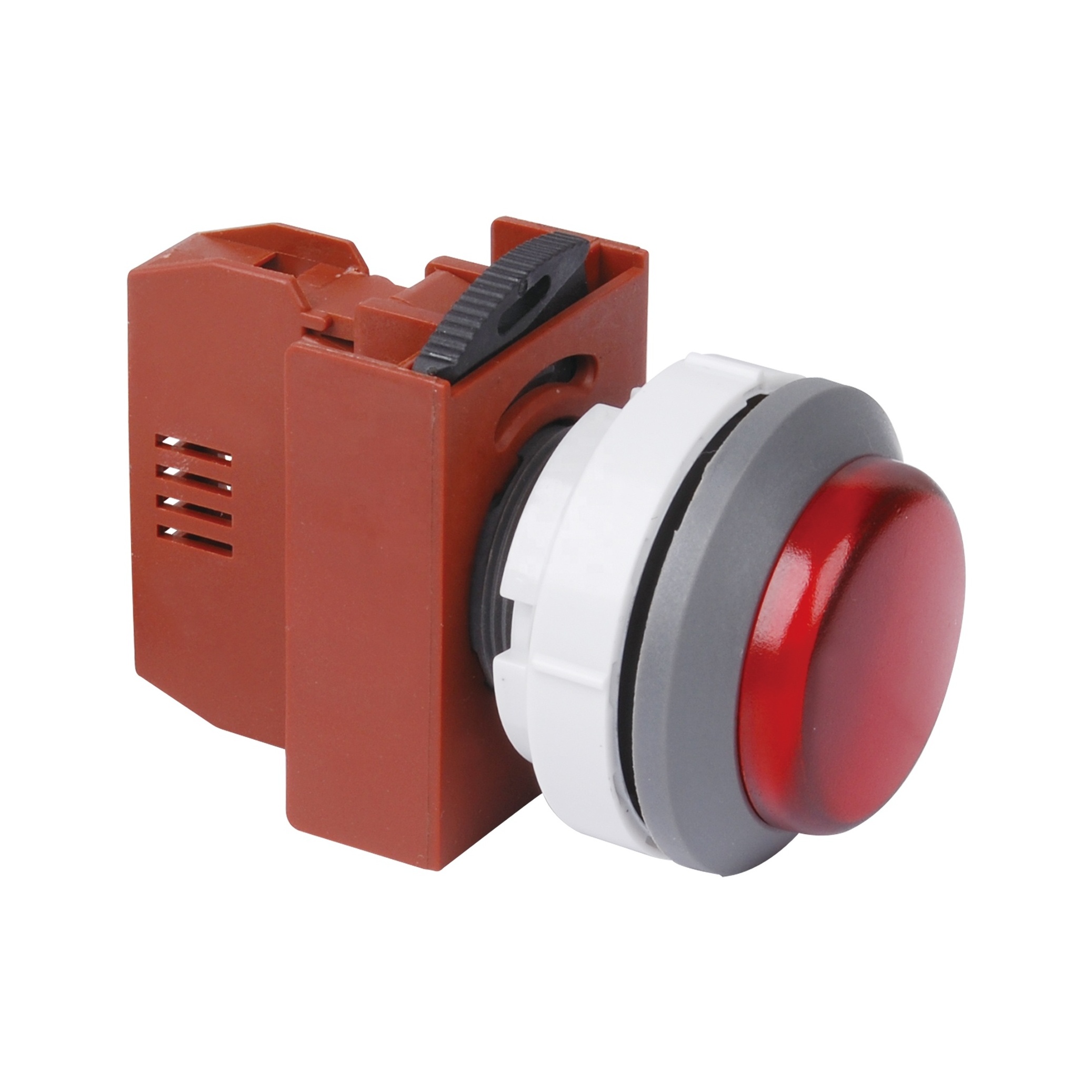

Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNTD
-
Model Number:
-
C3LIF
-
Fixed Hole Diameter:
-
22MM/30MM
-
Contact Form:
-
NO, NC, NO+NC
-
Electrical Capacitor:
-
Max insulationn voltage600VAC,Max thermal current10A
-
Operation:
-
AC15Type: 250VAC/16A, DC13Type: 250VDC/0.6A
-
Contact Resistance:
-
Max 50MΩ
-
Insulation Strength:
-
2500VAC 50Hz, 1 minute
-
Insulation Resistance:
-
500VDC below, 100MΩ above
-
Vibration resistance:
-
10g @40-500Hz
-
Storage/operation temperature:
-
Using: -10~70℃ (With no icing)
-
Certification:
-
TUV, ISO9001, CCC, CE
Quick Details
-
Protection Level:
-
No
-
Max. Current:
-
10A
-
Max. Voltage:
-
600VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNTD
-
Model Number:
-
C3LIF
-
Fixed Hole Diameter:
-
22MM/30MM
-
Contact Form:
-
NO, NC, NO+NC
-
Electrical Capacitor:
-
Max insulationn voltage600VAC,Max thermal current10A
-
Operation:
-
AC15Type: 250VAC/16A, DC13Type: 250VDC/0.6A
-
Contact Resistance:
-
Max 50MΩ
-
Insulation Strength:
-
2500VAC 50Hz, 1 minute
-
Insulation Resistance:
-
500VDC below, 100MΩ above
-
Vibration resistance:
-
10g @40-500Hz
-
Storage/operation temperature:
-
Using: -10~70℃ (With no icing)
-
Certification:
-
TUV, ISO9001, CCC, CE
Model Number Structure
① Fixed hole diameter: 2=22
Φ Round、3=30
Φ Round
② Types:
SNS=Short handle knob、SNL=Long handle knob
SNK=key knob、PNF=flat head、PNH=convex head
PNM3=30mm big head、PNM4=40mm big head
PNM6=60mm big head、PNR3=30mm Emergency stop head
PNR4=40mm big head、PNR6=60mm
Emergency stop head
PNKM4=
Emergency stop knob、PND=Double with lamp button
PNP=Tensile switch、PIF=Flat ribbon lamp button
PIH=Convex head with lamp button、PIM4=big head with lamp button
PID=Double button、
SIS=Short shank with lamp knob
SIS=Long handle with lamp knob、LIF=Standard type indicating lamp
LUF=circular type indicating lamp、MN=Monolever Switch
③ Operation type: Pushbutton Switch: Blank=Self-resetting、D=Self-locking
Knob Switch、Monolever Switch: F2=2 to the self-locking、F3=3 to the self-locking、F4=4 to the self-locking、T2=2 to reset、T3=3 to reset、T4=4 to reset
④ Contact: 1A=1NO、1B=1NC、1C=1A1B、1D=1A+1B、2A=2NO、2B=2NC、2C=1A1B+1A1B
⑤ Head color: R=red、G=green、Y=yellow、W=white、B=black、BL=blue
⑥ With lamp voltage: 12=12VDC、24=24VDC、36=36VDC、48=48VDC、
110=110VAC、220=220VAC、380=380VAC
Specifications
|
Electrical capacitor
|
Max insulation voltage 600VAC, Max thermal current10A
|
|
Operation
|
AC15 Type: 250VAC/16A, DC13 Type: 250VDC/0.6A
|
|
Contact resistance
|
Max 50MΩ
|
|
Insulation strength
|
2500VAC 50Hz, 1 minute
|
|
Insulation resistance
|
500VDC below, 100MΩ above
|
|
Vibration resistance
|
10g @40-500Hz
|
|
Life
|
Lamp 1,000hour, LED 1,000hour
|
|
Electrical life
|
Contact block AC15 250VAC/6A>1,000,000
|
|
|
DC13 250VAC/0.6A>1,000,000
|
|
Storage temperature
|
Using: -20~+70℃ (With no icing)
|
|
Operation temperature
|
Using: -20~+70℃ (With no icing)
|
