Quick Details
-
Type:
-
Digital Camera
-
Resolution:
-
1MP 1280*720
-
Chipset:
-
OV9712+ Hisilicon 3518C
-
Effective Pixel:
-
1280*720@30fps
-
Lens:
-
3.6mm fixed lens
-
IR distance:
-
15pcs/20M
-
Power::
-
DC1V/1A, PoE optional
-
Warranty:
-
2 years
-
Product name:
-

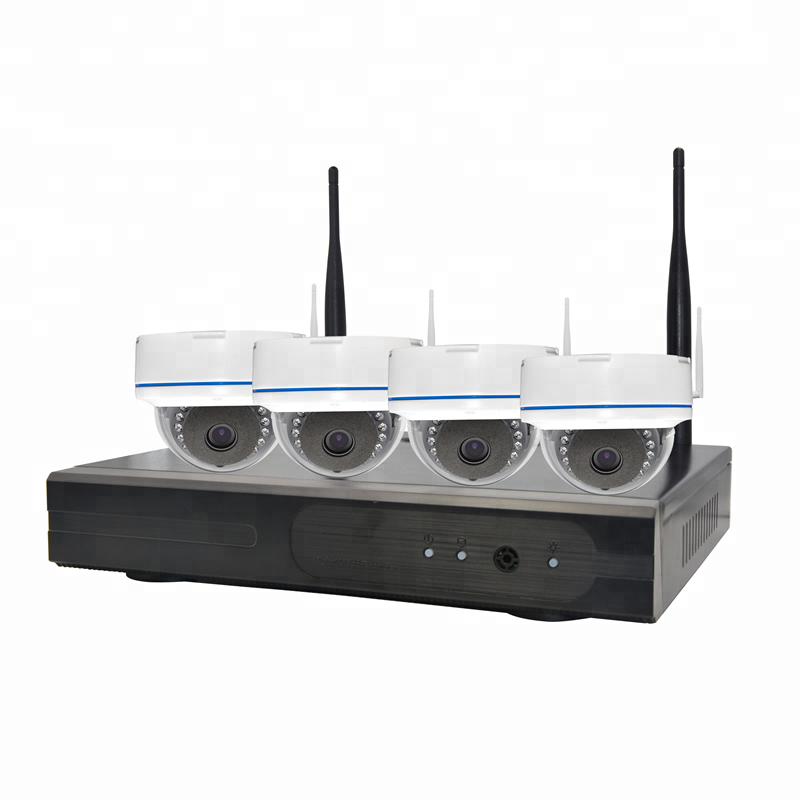

4CH Wireless CCTV Kit 4 pcs IP66 indoor IP Camera NetWork kit CCTV
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Place of Origin:
-
Guangdong, China
-
Technology:
-
NetWork
-
Type:
-
Digital Camera
-
Resolution:
-
1MP 1280*720
-
Chipset:
-
OV9712+ Hisilicon 3518C
-
Effective Pixel:
-
1280*720@30fps
-
Lens:
-
3.6mm fixed lens
-
IR distance:
-
15pcs/20M
-
Power::
-
DC1V/1A, PoE optional
-
Warranty:
-
2 years
-
Product name:
-
4CH Wireless CCTV Kit 4 pcs IP66 indoor IP Camera NetWork kit CCTV
Professional 4CH Wireless CCTV Kit 4 pcs IP66 IP Camera NetWork Linux camera video surveillance h.264 4ch dvr combo cctv Camera
Camera Key Features:
1. 720P/960P HD video output
2. 2Db WIFI antenna and 100mbps water-proof RJ-45 port
3. Auto match the NVR channel and play video
4. Built-in IR leds, Day and Night monitoring
5. bullet and dome housing optional
NVR Key Features:
1. 1080P/VGA video output
2. Built-in dual 5Db high power WIFI antennas
3. Real Plug and Play, automatic connecting video
4. Easy QR code to download app and remote login
5. Support iPhone and Android app
| Operating System | Embedded Linux OS | |
| Network Video | 4CH 720P/960P | |
| Network video input broadbank | 20Mbps | |
| input |
1ch,resolution:1024x768,1366x768,
1440x900,1920x1080p |
|
| VGA output |
1ch,resolution:1024x768,1366x768,
1440x900,1920x1080p |
|
| Record mode | Maual,Time,Motion,Alarm | |
| Playback | Real time,Routine,Event | |
| Backup | USB backup, network download | |
| Type | 1*SATA | |
| Max. Capacity | 4 TB | |
| Network port | 1 , RJ45 10M/100M | |
| Wireless | 2, 5Db WIFI antennas | |
|
UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up)
DHCP (Automatically obtain an IP address), etc… |
||
| Power Supply | DC12V/2A | |
| USB | 2, USB 2.0 for mouse and USB drive | |
| Power Consumption (W) | ≤5W(Without HDD) | |
| Operate Temperature (°C) | -10℃~+55℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Dimension | 257mm(W)×210mm(V)×45mm(H) | |
| Weight(without HDD) | ≤1Kg | |
| Model | 720P Wifi camera | 960P Wifi camera |
| Sensor | 1/4” Progressive Scan Sensor | 1/3” Progressive Scan Sensor |
| Signal System | PAL/NTSC | PAL/NTSC |
| Resolution | 1280 x 720 | 1280 x 960 |
| Minimum illumination | Color: 0.1 Lux; 0 Lux with IR on | Color: 0.01 Lux; 0 Lux with IR on |
| Shutter | 1/25s to 1/25,000s | |
| Lens | 3.6MM | |
| OSD | Date Time & Title | |
| White Balance | Auto | |
| Day&Night | Auto / Color / BW | |
| 3D-DNR | Auto | |
| Mirror/Flip | On / Off | |
| Frame Specification |
Main stream: 1280x720@30fps Sub stream: 640x480/640x360/CIF@30fps |
1280x960/1280x720@30fps Sub stream: 640x480/640x360/CIF@30fps |
| Network | RJ45 / WIFI 802.11b/g/n | |
| Working Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH | |
| Storage Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH | |
| Power Input | DC12V-1A | |
| Power consumption | ≤6W | |
| Dimension | 205(L)×70(W)×55 (H)mm | |
| Weight | 500g | |
